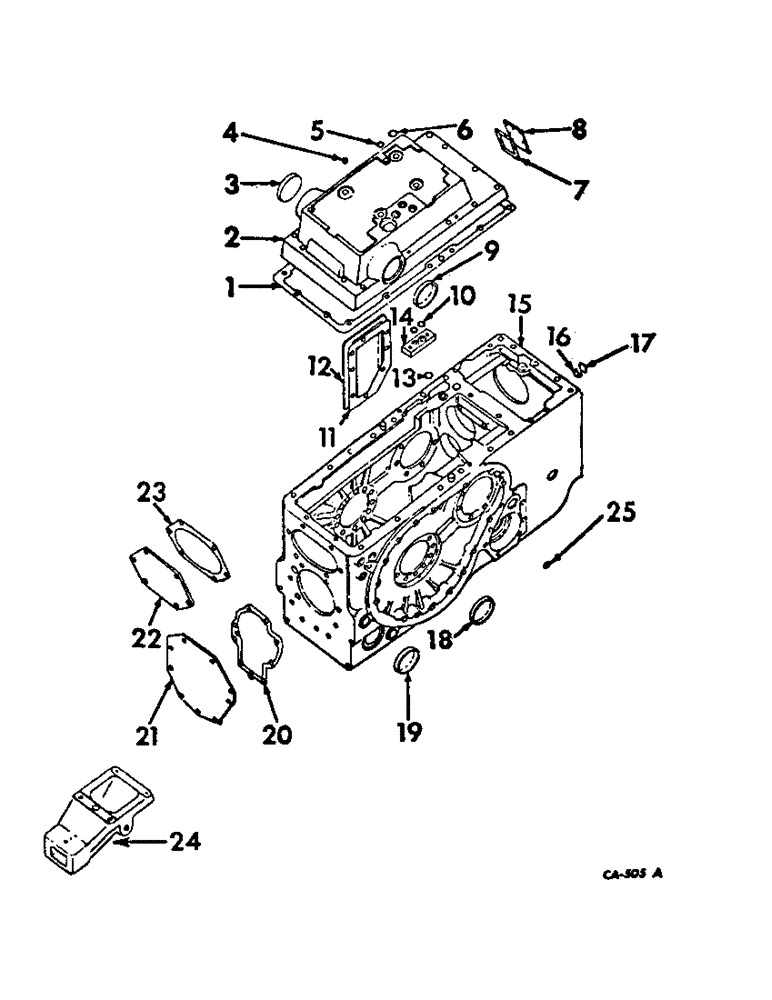

Запчасти Case IH 1026 (07-15) - DRIVE TRAIN, REAR FRAME COVER AND CONNECTIONS (04) - Drive Train

1

380264R2

GASKET

rear frame cover

1шт.

2

406552R92

COVER ASSY, rear frame

1шт.

2

528195R92

COVER

ASSY, rear frame, tractors with draft control

1шт.

9410357

PLUG

1/2-20 str thd o-ring boss

1шт.

444776

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 NPTF sq-soc pipe

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

SCREW, 5/8-11 x 3-7/8 hex-hd cap

16шт.

3

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH Cup, 3.510"

1шт.

4

380263R1

PLUG

eccentric shaft & mounting bolt openings cup

5шт.

5

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, cover to seat support, small

2шт.

5

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-3/16 x 3/32, cover to seat support

1шт.

6

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32, cover to seat support, large

1шт.

7

382416R1

GASKET

valve adj opening cover, tractors without draft control

1шт.

8

382415R1

COVER

valve adj opening, tractors without draft control

1шт.

179814

SPACER

4шт.

9

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH Cup, 3.762"

1шт.

10

387926R2

RING

seal, draft control port cover

2шт.

11

385757R1

GASKET

drive attachment opening cover, not used on tractors with all wheel drive

1шт.

12

380330R3

COVER

drive attachment opening, no used on tractors with all wheel drive

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

13

388306R1

RING,32.77mm ID x 39.12mm OD x 3.17mm Thk

SEAL, rear frame pressure port oil

1шт.

14

382758R1

COVER

draft control port, tractors without draft control

1шт.

NLS

NO LONGER SERVICED

2шт.

15

390965R41

FRAME ASSY, rear, composed of (1) frame w/tubes 390965R4 (NSS), (1) oil seal 537545R91, (1) pin 19846R1, (4) pin 19968R1, (2) pin 19969R1, (1) plug 172558, (1) plug 172574, (2) 383331R1, (2) plug 444788, (1) plug 9409947

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 dowel, drive housing

1шт.

19968R1

DOWEL,3/4" x 1 3/4"

PIN, 3/4 x 1-1/4 dowel, rear axle carrier

4шт.

19969R1

DOWEL,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 dowel, cover

2шт.

172558

PLUG,Exp, 1 1/4"

1-1/4 expansion, lubrication tube

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-soc pipe

2шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto. sq-soc pipe

1шт.

16

380271R1

RETAINER

sealing ring

1шт.

17

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8

1шт.

18

383331R1

PLUG,Cup, 4.26"

rear axle opening cup

2шт.

19

383331R1

PLUG,Cup, 4.26"

torsion bar cup, tractors w/o draft control

2шт.

20

381467R1

GASKET

independent PTO opening cover

1шт.

21

380272R1

COVER

independent PTO opening

1шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

9шт.

22

383329R1

COVER

draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

6шт.

23

383330R1

GASKET

draft control adj opening cover

1шт.

24

381707R21

SUPPORT

ASSY, swinging drawbar pivot

1шт.

24

400288R2

SUPPORT ASSY.

SUPPORT ASSY, swinging drawbar pivot, heavy duty

1шт.

20324R1

DOWEL,1" x 2"

PIN, 1 x 2 dowel

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

25

172574

PLUG,Exp, 1 1/2"

1-1/2 expansion, pump suction port, tractors without power supply

1шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, For plug, 9410357

1шт.
