Запчасти Case IH 1026 (07-10) - DRIVE TRAIN, CENTER SECTION BODY (04) - Drive Train

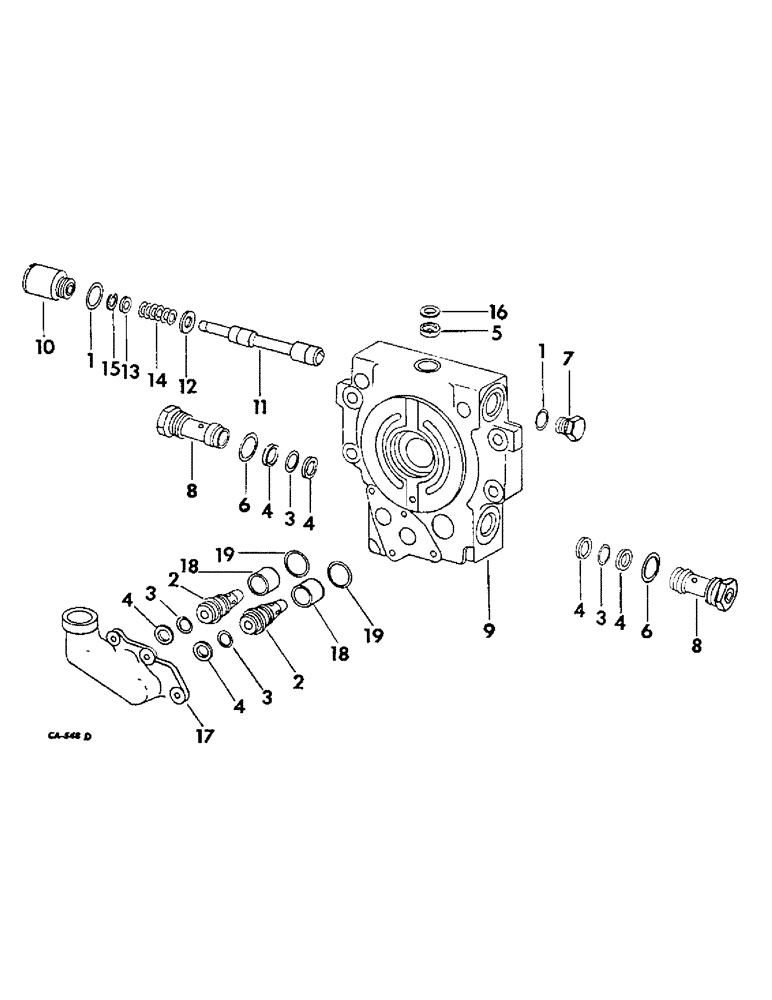

Схема запчастей Case IH 1026 - (07-10) - DRIVE TRAIN, CENTER SECTION BODY (04) - Drive Train
19
8
17
4
10
12
3
6
14
8
3
6
11
2
13
4
3
4
16
4
5
15
18
7
19
2
9
3
1
4
18
4
1

Артикул

Название

Примечание

Количество

1

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, shuttle valve retaining plugs

2шт.

2

528778R1

CHECK VALVE

VALVE ASSY, check, optional w/528345R1

2шт.

2

528345R1

CHECK VALVE

VALVE ASSY, check, optional w/528778R1

2шт.

3

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32, check & relief valves

4шт.

4

393887R1

BACK-UP RING

WASHER, back-up, check & relief valve o-rings

6шт.

5

528404R1

PLUG, orifice

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64

2шт.

7

405512R1

PLUG

shuttle valve

1шт.

8

531770R1

VALVE

ASSY, relief

2шт.

9

406376R2

BODY ASSY, center section, includes Ref. 1, 5, 7, 10 thru 16

1шт.

10

396067R1

PLUG

shuttle valve spring retainer

1шт.

11

406379R1

VALVE

center section shuttle, code A

1шт.

11

406380R1

VALVE

center section shuttle, code B

1шт.

11

406381R1

VALVE

center section shuttle, code C

1шт.

11

406382R1

VALVE

center section shuttle, code D

1шт.

11

406383R1

VALVE

center section shuttle, code E

1шт.

11

406384R1

VALVE

center section shuttle, code F

1шт.

12

396063R1

WASHER

shuttle valve inner

1шт.

13

396064R1

WASHER

shuttle valve outer

1шт.

14

531079R1

SPRING

shuttle valve centering

1шт.

15

396066R1

SNAP RING,#46, .433", Ext

RING, shuttle valve snap

1шт.

16

529376R1

STRAINER ELEMENT

SCREEN, orifice

1шт.

17

406340R1

MANIFOLD

check valve

1шт.

560164R1

SCREW,Hex, 3/8"-16 x 7/8", G8, Full Thd

3/8-16 x 7/8 hex-hd cap, type 4

2шт.

18

406991R2

SPACER

Check valve

2шт.

19

406657R1

RING

check valve sealing

2шт.

393885R91

GASKET KIT

PACKAGE, relief valve seal, consists of o-ring, 20947R1, o-ring, 297459R1 & two rings, 393887R1

1шт.

CODE, valve to match alpha code stamped on center section body.

1шт.

Выбрано товаров: 28
