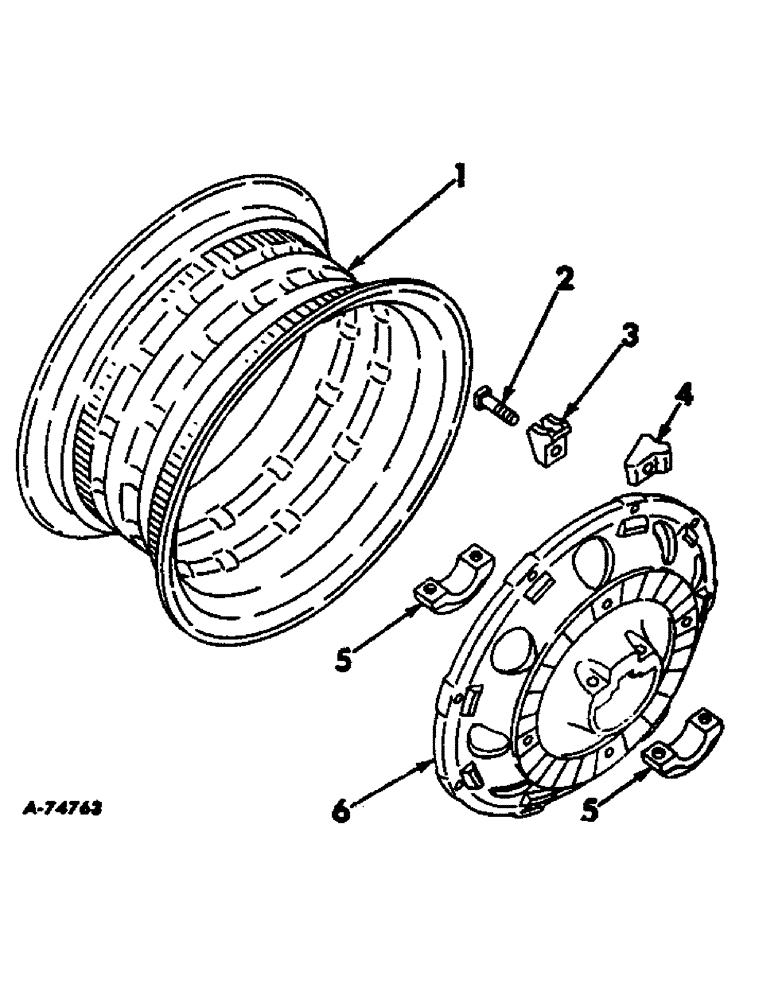

Запчасти Case IH 1026 (15-04) - WHEELS AND TRACTION, REAR WHEELS, FARMALL HI-CLEAR TRACTORS Wheels & Traction

1

380868R1

RIM

rear wheel, W16L-34 rim for 18.4-34 tire

2шт.

1

380869R1

RIM

rear wheel, WH14L-38 rim for 15.5-38 tire

2шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp, 24 for 34 in. wheels

1шт.

352536R1

NUT

rear wheel rim clamp bolt

24шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

24шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp, 16 for 38 in. wheels

1шт.

352536R1

NUT

rear wheel rim clamp bolt

16шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

16шт.

3

380870R1

CLAMP

rear wheel rim, 20 for 34 in. wheels, 12 for 38 in. wheels

1шт.

4

397251R1

CLAMP

rear wheel rim, fixed

4шт.

5

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

385784R11

STUD

STUD W/NUT ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

hub clamp stud

8шт.

6

383579R2

WHEEL

34 in. rear

2шт.

6

383581R1

WHEEL (STEERING)

WHEEL, 38 in. rear, 2 in. offset

2шт.

6

382967R1

WEIGHT

WHEEL, 38 in. rear, 4-1/2 in. offset

2шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 box

1шт.
