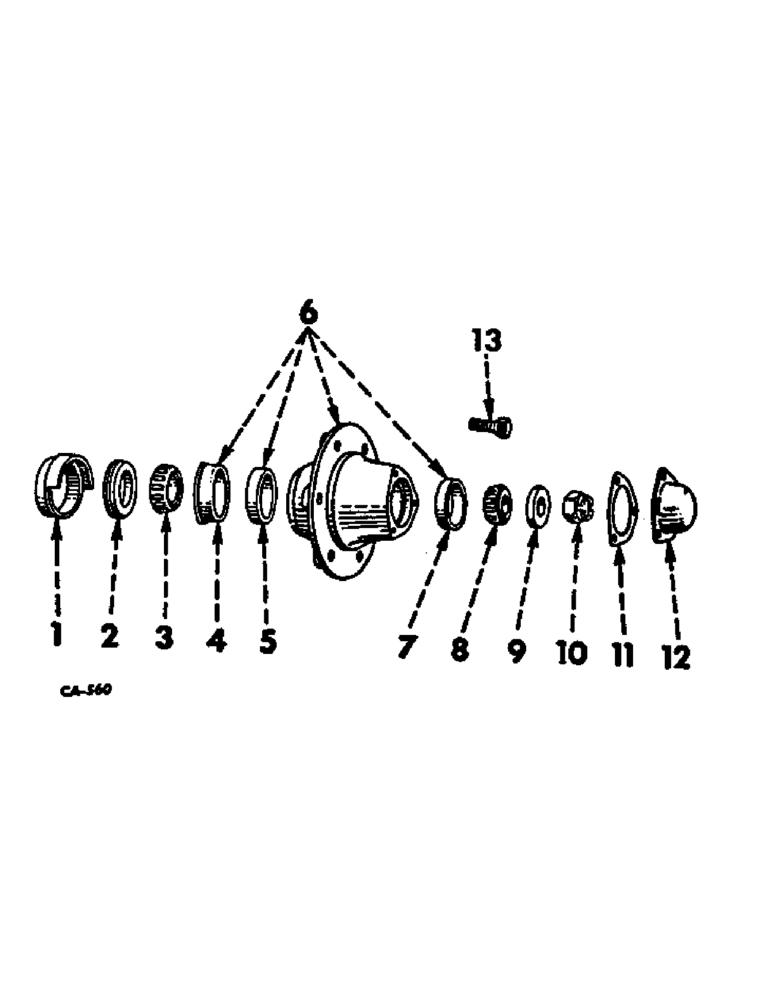

Запчасти Case IH 1026 (14-14) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CAP Suspension

1

48701D

SHIELD

front wheel dust

2шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel oil

2шт.

3

G15215

ROLLER BEARING

BEARING ASSY, front wheel inner cone

2шт.

4

48703D

RETAINER

front wheel oil seal

2шт.

5

619387R1

BEARING CUP

BEARING, front wheel inner cup

2шт.

6

391823R11

HUB

ASSY, front wheel, 6 bolt hub, also order fitting, 443566, Farmall tractors except those equipped w/adjustable wide front axle having 50 to 74 inch tread

2шт.

6

391823R11GV

HUB

Value, Hub Assy.

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive type lub

2шт.

6

391824R11

HUB ASSY.

HUB ASSY, front wheel, 8 bolt hub, also order fitting, 19700R91, all International tractors and Farmall tractors w/adjustable wide wide front axle having 50 to 74 inch tread

1шт.

19700R91

FITTING

3/16 45 deg angle drive type lub

2шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, front wheel outer cone

2шт.

9

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

front wheel outer bearing retainer

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT, front wheel

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

11

369860R1

GASKET,0.79mm Thk

front wheel hub cap

2шт.

12

369859R1

CAP

front wheel hub

2шт.

21533R1

BOLT

SCREW, 5/16-18 x 5/8 CDP hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

51485D

BOLT,9/16" - 18 x 1 7/32"

front wheel mounting, 12 used for 4.25KA-16DC wheel, 370777R92, 6LB-15DC wheel, 371735R3, 5.50-16DC wheel, 371735R3, 5.50-16 DC wheel, 364343R92 and 5.50F-18DC wheel, 400573R1 16 used for 5.50F-20DC wheel, 383905R91 and W7-24 wheel, 400575R1

1шт.

13

382966R1

BOLT (SPREADER),Hex Csk, 9/16" - 18 x 1.47"

BOLT, front wheel mounting, for 5.50F-20 wheel, 370779R92

12шт.

13

393363R1

BOLT,Hex, 9/16" - 18 x 1.22"

front wheel mounting, 12 used for 8WL-15 wheel, 528687R1, 16 used for 10LB-15DC wheel, 534362R1, WH8L-16 wheel, 389988R91, WH10L-16 wheel, 383906R91, W11C-16.1 wheel, 530150R1 and W7L-20 wheel, 400519R1

1шт.

371418R91

PACKAGE

front wheel bearing overhaul, consists of (1) cone 618023R91, (1) cone 619386R91, (1) cup 618024R1, (1) cup 619387R1, (1) gasket 369860R1, (1) oil seal 370254R91, (1) retainer 48703D

1шт.
