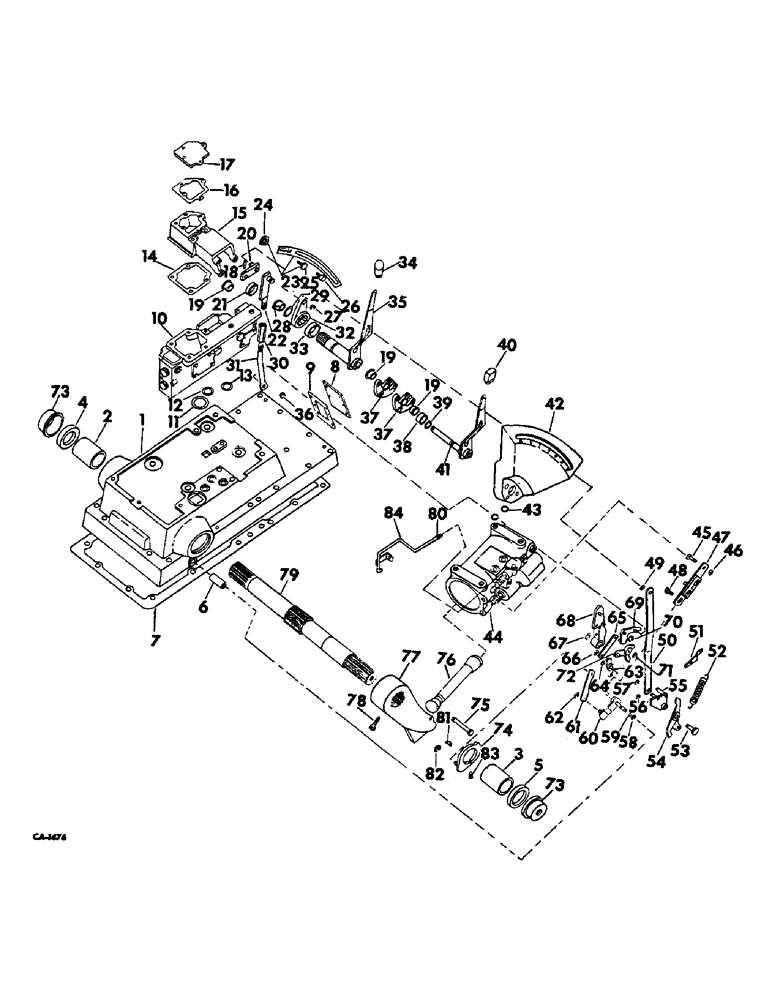

Запчасти Case IH 1026 (10-20) - HYDRAULICS, DRAFT CONTROL, FARMALL TRACTORS W/ S/N 9298 & ABOVE, INTL TRACTORS W/ S/N 7546 & ABOVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
528195R92
COVER
W/TWO BEARINGS & BUSHING, rear frame
1шт.
20203R1
BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5
SCREW, 5/8-11 x 3-7/8 hex-hd cap
16шт.
444776
PLUG,Sq Soc, 1/4"-18 NPTF
1/4-18 sq-soc pipe
1шт.
2
382774R2
BUSHING,70.78mm ID x 76.2mm OD x 80.26mm L
BEARING, rockshaft LH
1шт.
3
382775R2
BUSHING,76.85mm ID x 81.28mm OD x 80.26mm L
BEARING, rockshaft RH
1шт.
4
382776R91
OIL SEAL
rockshaft oil LH
1шт.
5
382778R91
OIL SEAL
rockshaft oil RH
1шт.
6
382798R1
BUSHING
eccentric shaft position control
1шт.
7
380264R2
GASKET
rear frame cover
1шт.
8
382415R1
COVER
valve adj opening
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
Hex, 5/16"-18 x 5/8", G5
6шт.
9
382416R1
GASKET
valve adj opening cover
1шт.
10
399605R93
SUPPORT
ASSY, seat RH, for components see list of parts under details of seat & hydraulic component support, section 13, Fig. 13-08
1шт.
1017989R1
PLUG
7/8-14 self aligning
4шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 hex-hd cap
2шт.
279991R1
SCREW
W/PELLET INSERT, 1/2-13 x 1-1/2 hex-hd cap
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
11
384377R1
O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro
2-5/16 x 2-1/2 3/32, hyd component housing large
1шт.
12
381884R1
O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro
1 x 1-3/16 x 3/32, hyd component housing small
1шт.
13
386867R1
O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro
1-1/8 x 1-5/16 x 3/32, hyd component housing
1шт.
14
382793R1
GASKET
quadrant support opening
1шт.
15
532394R1
SUPPORT ASSY.
SUPPORT, draft control quadrant
1шт.
280161
BOLT,Hex, 3/8" - 16 x 3", Gr 5
2шт.
25080R1
SCREW, 3/8-16 x 3 FL GD 12-pt
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
16
382795R1
GASKET
quadrant support cover
1шт.
17
382794R1
COVER
quadrant support
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
3шт.
413-414
BOLT,Hex, 1/4" - 20 x 7/8", Gr 5
SCREW, 1/4-20 x 7/8 C-Z hex-hd cap
1шт.
18
24834R1
PIN
7/32 x 1-3/8 coiled spring
1шт.
19
532395R1
BUSHING,19.07mm ID x 20.63mm OD x 16.64mm L
BEARING, sensitivity control shaft
3шт.
20
532407R11
LEVER ASSY, sensitivity control
1шт.
21
532406R1
WASHER
SPACER, sensitivity lever
1шт.
22
382848R21
ROD
ASSY, position control, upper
1шт.
23
378619R11
GUIDE
ASSY, position control handle
1шт.
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SCREW, 1/4-20 x 1/2 cd or zn pltd hex-hd cap
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
24
371600R2
HANDLE
KNOB, adjustable stop pin
1шт.
25
371599R2
LARGE PIN
PIN, adjustable stop
1шт.
26
378620R1
STOP
position control handle
1шт.
144417H
NUT,1/4"-28, GB
1/4-28 cd pltd ESNA stop
1шт.
27
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , position control rod pin #37, .300" Dia, E-Type
1шт.
28
863138R91
PLASTIC RING
BEARING, sensitivity shaft
1шт.
29
383024R1
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
11/16 x 13/16 x 1/16, position control shaft
1шт.
30
382847R1
TURNBUCKLE
position control rod
1шт.
114503
JAM NUT,Jam, 3/8"-16, G5
1шт.
31
382846R1
ROD
position control, lower
1шт.
32
382803R2
LEVER, position control
1шт.
33
532399R1
SPACER, position control lever
1шт.
34
382801R1
BALL
KNOB, position control handle
1шт.
35
532396R2
HANDLE
ASSY, position control
1шт.
36
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , position control bellcrank pin #37, .300" Dia, E-Type
1шт.
37
532401R2
SUPPORT
position control bearing
2шт.
192009
NUT, 5/16-24 hex.
2шт.
532409R1
SPRING WASHER
safety spring
2шт.
38
532408R1
PLASTIC RING
BEARING, sensitivity control shaft
1шт.
39
379365R1
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
3/8 x 1/2 x 1/16, sensitivity control shaft
1шт.
40
382805R1
KNOB
sensitivity control handle
1шт.
41
532402R2
HANDLE
ASSY, sensitivity control
1шт.
42
538543R1
QUADRANT
SECTOR, control quadrant, replaces 399384R1
1шт.
186270
BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5
3шт.
43
387926R2
RING
seal, Serial Range: cylinder-cover
2шт.
44
CYLINDER & VALVE ASSY, draft control, for components see list of parts under details of draft control cylinder & valve
1шт.
413-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5
5/8-11 x 1-3/4 hex-hd cap
2шт.
271569
SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5
SCREW, 5/8-11 x 3-3/4 hex-hd cap
2шт.
45
382841R1
PIN
walking, Serial Range: beam-valve
1шт.
46
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , valve pin #37, .300" Dia, E-Type
1шт.
47
384515R12
LINK ASSY, walking, Serial Range: beam-valve
1шт.
48
382842R1
SCREW,Shldr, Hex, 5/16" - 18 x 0.65", W/ Nylon Pellet
shoulder
1шт.
49
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , sensitivity control lever pin #37, .300" Dia, E-Type
1шт.
50
382786R1
LEVER
LINK, draft control eccentric to sensing lever
1шт.
51
387414R1
ANCHOR
spring, part of cylinder & valve 382596R93
1шт.
52
387413R1
SPRING
sensing arm return
1шт.
53
382788R1
PIN
sensing pick-up arm
1шт.
54
382787R1
ROD
ARM, draft control sensing pick-up
1шт.
55
382828R91
LEVER
ECCENTRIC ASSY, draft control
1шт.
56
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , sensing pick-up arm pin #37, .300" Dia, E-Type
1шт.
57
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , draft control eccentric shaft #37, .300" Dia, E-Type
1шт.
58
971043R1
SNAP RING,#50, Ext
Eccentric shaft #50, Ext
1шт.
59
355967R1
O-RING,0.364" ID x 0.003" Width
3/8 x 1/2 x 1/16 eccentric shaft
1шт.
60
384399R91
ECCENTRIC
ASSY, position control
1шт.
61
382838R1
LINK
, Serial Range: eccentric-rockshaft
1шт.
62
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , position control eccentric pin #37, .300" Dia, E-Type
1шт.
63
382843R11
BEAM
ASSY, follow-up walking
1шт.
64
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , follow-up walking beam #37, .300" Dia, E-Type
1шт.
65
382845R1
LINK
walking, Serial Range: beam-bellcrank
1шт.
66
104977R1
SNAP RING,#X31, .243" Dia, E-Type
RING, RETAINING, , Walking beam to bellcrank #X31, .243" Dia, E-Type
1шт.
67
370290R1
SNAP RING,#50, .392" Dia, E-Type
Ring, Retaining, , draft control eccentric #50, .392" Dia, E-Type
1шт.
68
384511R92
SUPPORT
ASSY, position control stop pivot
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
SCREW, 3/8-16 x 1-1/8 hex-hd cap
1шт.
413-622
BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5
SCREW, 3/8-16 x 1-3/8 hex-hd cap
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
69
382825R11
LEVER
BELLCRANK ASSY, position control
1шт.
70
204502R1
SNAP RING,#43, Ext
Position control bellcrank #43, Ext
1шт.
71
381478R1
SNAP RING,#X43, .375" Dia, E-Type
Ring, Retaining, , draft control stop lever #X43, .375" Dia, E-Type
1шт.
72
384513R11
LEVER
ASSY, draft control stop
1шт.
73
RETAINER, rockshaft arm, order washer, 388574R1
2шт.
73
388574R1
WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk
rockshaft arm retainer
2шт.
271556
WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5
SCREW, 5/8-11 x 1-1/4 hex-hd cap
2шт.
74
384518R11
CAM
ASSY, rockshaft actuating hub
1шт.
75
398314R2
PIN,6.35mm OD x 76.2mm L
piston connecting rod
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
16558R1
WASHER
17/64 x 5/8 x .049
1шт.
76
382812R4
ROD
piston connecting
1шт.
77
382810R2
ROD
BELLCRANK, rockshaft
1шт.
78
382811R1
SET SCREW,Hex, 3/8" - 16, Lok-Thd x 1 1/2", Cone Pt
rockshaft bellcrank lok-thread set
1шт.
79
388573R2
ROCKSHAFT
hyd draft control
1шт.
80
19984R1
TUBE NUT,7/16"-24
NUT, 7/16-24 hi-duty tube fitting for 1/4 tube, optional with 29898D
1шт.
80
222-502
TUBE NUT,7/16"-24
NUT, 7/16-24 hi-duty tube fitting for 1/4 tube, optional with 19984R1
1шт.
81
376057R1
BUCKET TOOTH KEY
KEY, rockshaft actuating hub cam
1шт.
82
110668R1
CIRCLIP,#37, .300" Dia, E-Type
Ring, Retaining, , eccentric to rockshaft link #37, .300" Dia, E-Type
1шт.
83
382816R1
SET SCREW
rockshaft actuating hub cam set
1шт.
84
385942R91
TUBE
ASSY, cylinder lub
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
Выбрано товаров: 118
