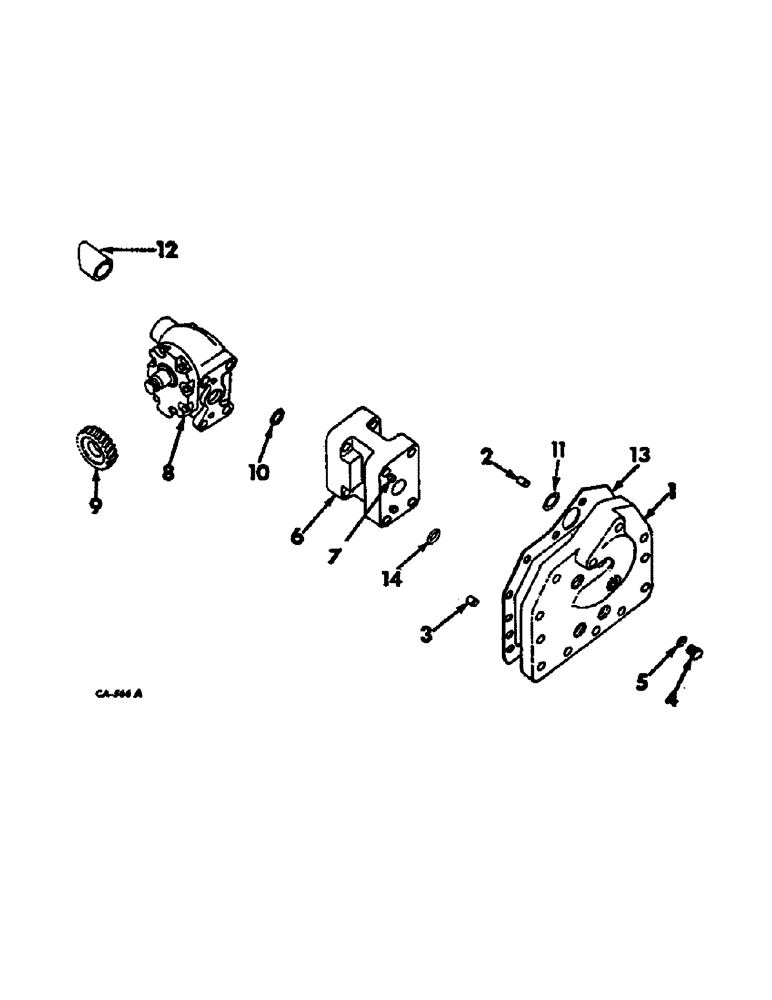

Запчасти Case IH 1026 (10-02) - HYDRAULICS, HYDRAULIC POWER SUPPLY, IN REAR FRAME (07) - HYDRAULICS

1

387348R11

FLANGE ASSY, pump mounting, includes ref nos 2 & 3, Farmall tractors w/serial no. 9852 & below, International tractor w/serial no. 7559 & below

1шт.

1

537166R11

FLANGE

ASSY, pump mounting, includes ref nos 2 & 3, Farmall tractor w/serial no. 9853 & above, International tractor w/serial no. 7560 & above

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

20031R1

DOWEL,3/8" x 5/8"

PIN, 3/8 x 5/8 dowel

2шт.

3

19954R1

DOWEL,5/16" x 5/8"

PIN, 5/16 x 5/8 dowel

2шт.

4

9410358

PLUG

9/16-18 C-Z hyd str thd o-ring boss, pump mounting flange

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, pump mounting flange plug

1шт.

6

382753R11

SPACER

ASSY, hyd pump

1шт.

7

384116R1

PIN

hydraulic pump spacer

2шт.

8

373964R94

PUMP

ASSY, hydraulic gear, 12 GPM, Cessna, for components see list of parts under details of hydraulic pump, optional with 374483R96, Fig. 10-7

1шт.

8

374483R96

PUMP

ASSY, hydraulic gear, 12 GPM, Thompson, for components see list of parts under details of hydraulic pump, optional with 373964R94, Fig. 10-7

1шт.

8

1949296C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

8

1949297C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

52999D

WASHER

GASKET, pump mounting bolt

4шт.

16252R1

SCREW, 7/16-14 x 4-3/4 hex-hd cap Hex, 7/16"-14 x 4 3/4", G5

4шт.

8

373966R94

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 17 GPM, Cessna, for components see list of parts under details of hydraulic pump, optional with 527755R91, Fig. 10-7

1шт.

8

527755R91

PUMP

ASSY, hydraulic gear, 17 GPM, Thompson, for components see list of parts under details of hydraulic pump, optional with 373966R94, Fig. 10-7

1шт.

52999D

WASHER

GASKET, pump mounting bolt

4шт.

16252R1

SCREW, 7/16-14 x 4-3/4 hex-hd cap Hex, 7/16"-14 x 4 3/4", G5

4шт.

9

382754R2

GEAR

hyd pump drive 23 T

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 nylon insert

1шт.

10

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump pressure port large

1шт.

11

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, pump mtg flange to rear frame, used w/flange, 387348R11

1шт.

11

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-5/16 x 3/32, pump mtg flange to rear frame, used w/flange, 537166R11

1шт.

12

382755R1

TUBE

pump suction

1шт.

537545R91

SEAL

pump suction tube oil

1шт.

13

382244R2

GASKET

pump mounting flange

1шт.

14

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, pump mounting flange to spacer

1шт.
