Запчасти Case IH 1026 (08-15) - ELECTRICAL, ELECTRIC LIGHTING, FARMALL TRACTORS WITH DELUXE FLAT TOP FENDERS (06) - ELECTRICAL

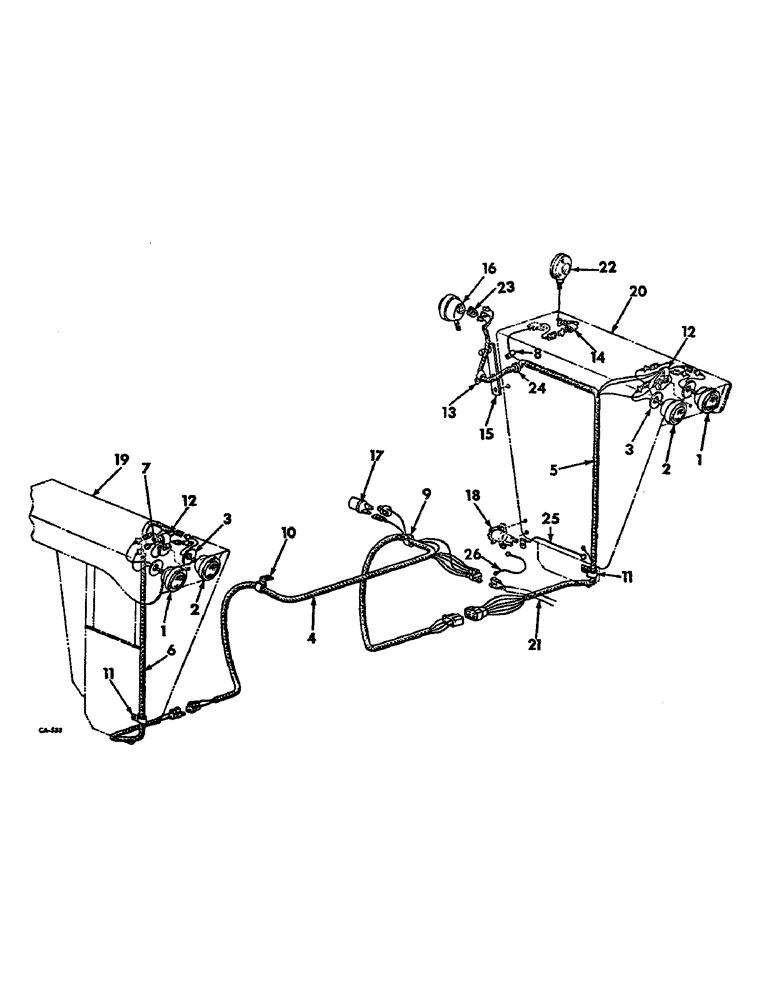

Схема запчастей Case IH 1026 - (08-15) - ELECTRICAL, ELECTRIC LIGHTING, FARMALL TRACTORS WITH DELUXE FLAT TOP FENDERS (06) - ELECTRICAL
1
24
12
16
5
6
18
25
23
19
13
15
22
1
9
8
2
14
11
21
11
12
17
3
20
26
10
3
2
4
7

Артикул

Название

Примечание

Количество

399325R91

PARTS ACCESSORY, deluxe fender with adjustable lights, for tractors without isomount bushings

1шт.

1

388945R91

HEADLIGHT

LIGHT ASSY, head, only serviceable items are sealed beam unit, 535850R1 and rubber retainer, 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

388946R91

LIGHT

ASSY, flood, only serviceable items are sealed beam unit, 390756R91 and rubber retainer, 676078R1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

388947R1

RETAINER

head light

4шт.

4

405287R1

HARNESS

ASSY, deluxe fender main

1шт.

5

405876R1

HARNESS

ASSY, LH deluxe fender

1шт.

6

388949R91

HARNESS

CABLE ASSY, RH fender lighting

1шт.

7

404393R1

CABLE

ASSY, headlight to ground junction

2шт.

8

366460R1

CABLE CLIP

CLIP, fender lighting cable, short

1шт.

9

383622R1

CLIP

lighting cable harness, on rear frame cover front

1шт.

10

384558R1

CLIP

lighting cable harness, at carrier

2шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x .095

2шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, lighting cable harness, short, on rear frame cover LH front mounting bolt

2шт.

120376

NUT,5/16"-18, G5

2шт.

12

362121R1

CLIP

fender lighting cable, on LH & RH headlight panel

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, combination rear light harness

1шт.

14

358986R1

CABLE CLIP

CLIP, flashing light cable

1шт.

15

382407R11

BAR

BRACKET ASSY, rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

LIGHT ASSY, combination rear, refer to starting and lighting listing, this section

1шт.

17

FLASHER ASSY, warning light, refer to starting and lighting listing, this section

1шт.

18

SOCKET ASSY, breakaway, refer to starting and lighting listing, this section

1шт.

19

FENDER ASSY, RH, refer to deluxe fenders listing, section 13

1шт.

20

FENDER ASSY, LH, refer to deluxe fenders listing, section 13

1шт.

21

HARNESS ASSY, rear main cable, refer to starting and lighting listing, this section

1шт.

22

LIGHT ASSY, flashing warning, refer to starting and lighting listing, this section

1шт.

23

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

24

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

combination rear light rubber

1шт.

25

405877R1

HARNESS

CABLE ASSY, breakaway connector socket

1шт.

26

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

Выбрано товаров: 39
