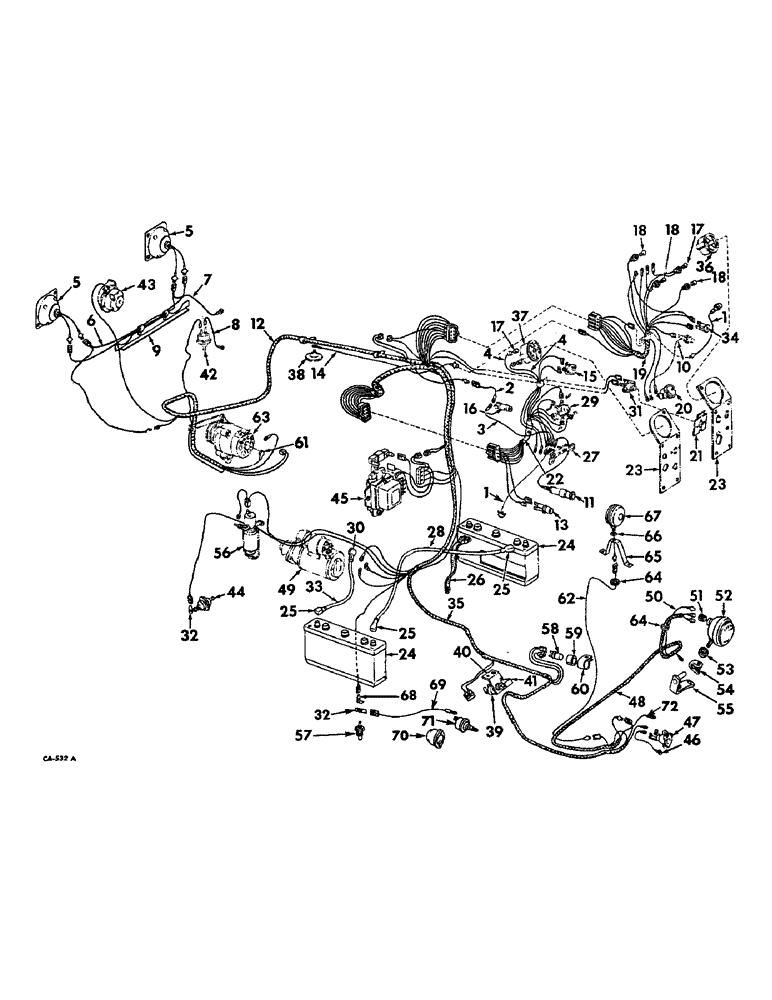

Запчасти Case IH 1026 (08-09) - ELECTRICAL, STARTING AND LIGHTING, INTERNATIONAL TRACTORS (06) - ELECTRICAL

405885R91

PARTS ACCESSORY, electric breakaway connector socket, consists of clip, 395228R1, ref nos 46, 47, 72 and attaching hardware

1шт.

1

406127R1

LAMP BASE

LIGHT ASSY, hydrostatic control

1шт.

2

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

3

405212R1

HARNESS

CABLE ASSY, horn switch to junction block

1шт.

4

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

2шт.

5

387730R91

LIGHT

ASSY, shock proof head, only serviceable items are sealed beam unit, 535850R1 and retainer 676078R1

1шт.

387731R1

SPACER, head light

6шт.

156327

SCREW, 1/4-20 x 1-1/4 C-Z cr-rec flat-hd mach

6шт.

6

405238R1

CABLE ASSY, harness to headlight junction

1шт.

7

405229R1

CABLE

CABEL ASSY, head light, Serial Range: junction-ground

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

8

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum, Serial Range: switch-ground

1шт.

9

383857R21

BRACE ASSY, head light mounting

1шт.

10

392441R91

LIGHT

ASSY, transmission warning

1шт.

11

LIGHTER, cigarette, refer to engine controls and switches listing, this section

1шт.

12

405281R1

HARNESS ASSY, main cable front

1шт.

13

HOLDER ASSY, fuse, refer to engine controls and switches listing, this section

1шт.

14

404400R1

CABLE

ASSY, fuel gauge sending unit to multiple connector

1шт.

15

SWITCH ASSY, push button, refer to engine controls and switches listing, this section

1шт.

16

SWITCH ASSY, horn, refer to engine controls and switches listing, this section

1шт.

17

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12, volt, tachometer & gauge cluster

4шт.

18

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12, volt, oil & amp tellite flasher

1шт.

19

405275R2

HARNESS

ASSY, panel cable RH

1шт.

19

405276R1

HARNESS ASSY, panel cable RH, tractors w/o electric fuel gauge

1шт.

20

INDICATOR, electric air cleaner, refer to instrument panel and gauges listing, section 11

1шт.

21

ETHER STARTING PANEL, refer to ether starting listing, section 12

1шт.

22

406121R1

HARNESS ASSY, panel cable LH

1шт.

23

PANEL, control LH, refer to instrument panel gauges listing, section 11

1шт.

23

PANEL, control RH, refer to instrument panel and gauges listing, section 11

1шт.

24

399056R1

BATTERY, prestolite 1419x, 6 volt

2шт.

25

383619R1

COVER

bqattery cable terminal large

3шт.

26

378760R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

27

BLOCK ASSY, junction, refer to engine controls and switches listing, this section

1шт.

28

383617R91

CABLE

ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

29

SWITCH ASSY, lighting, refer to engine controls and switches listing, this section

1шт.

30

364910R1

BOOT

COVER, battery terminal small

1шт.

31

SWITCH ASSY, ether push button, refer to engine controls and switches listing, this section

1шт.

32

384396R1

SPADE TERMINAL,Male

TERMINAL, oil pressure switch str

2шт.

33

383726R91

CABLE

ASSY, battery to solenoid switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

34

SWITCH ASSY, key, refer to engine controls and switches listing, this section

1шт.

35

405878R2

HARNESS

ASSY, rear main cable

1шт.

399470R1

BOOT

INSULATOR, terminal cover bolt, on cranking motor, S, terminal

1шт.

36

GAUGE ASSY, cluster, refer to instrument panel and gauges listing, section 11

1шт.

37

SPEEDOMETER-TACHOMETER, refer to instrument panel and gauges listing, section 11

1шт.

38

SENDING UNIT, fuel gauge, refer to fuel tank and piping listing, section 12

1шт.

39

382728R91

SWITCH

safety starting, serial no. 7545 & bleow

1шт.

39

532682R1

SWITCH

ASSY, neutral starting, serial no. 7546 & above

1шт.

40

406125R1

BRACKET, safety starting switch

1шт.

14995R1

BOLT

3/8-16 x 3/4 sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

41

406126R1

ROD

safety switch, serial no. 7545 & below

1шт.

41

534410R1

ROD, starting switch, serial no. 7546 & above

1шт.

102776H

CLEVIS PIN,1/4" x 11/16"

PIN, CLEVIS, , Rod end 1/4" x 11/16"

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, 1/16 x 1/2 cotter

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

42

SWITCH ASSY, electric air cleaner, refer to air cleaner switch listing, this section

1шт.

43

ELECTRIC HORN, refer to electric horn listing, this section

1шт.

44

392249R92

SWITCH

engine oil pressure

1шт.

45

VOLTAGE REGULATOR, refer to voltage regulator listing, this section

1шт.

46

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

47

362002R92

SOCKET

ASSY, electrical breakaway connector

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd caps

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

48

405881R1

CABLE ASSY, breakaway connector socket to rear light

1шт.

49

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

50

405211R1

CABLE PULLING GRIP

CABLE ASSY, combination rear, Serial Range: light-ground

1шт.

51

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

52

387729R91

LIGHT

ASSY, combination rear and tail, only serviceable items are lamp, 455490 and sealed beam unit, 371461R91

1шт.

102637

NUT,1/2"-13, G5

1шт.

53

365503R1

SPACER

combination rear light

1шт.

54

350920R1

CLAMP

combination rear light

1шт.

55

372355R11

SUPPORT

ASSY, combination rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 znd hex-hd cap

2шт.

56

SOLENOID, ether starting, refer to ether starting listing, section 12

1шт.

57

530034R2

SWITCH

ASSY, transmission oil temperature

1шт.

58

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

59

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

60

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

61

399470R1

BOOT

INSULATOR, terminal cover boot, furnished as part of 405281R1

1шт.

62

405218R1

CABLE ASSY, fender warning light

1шт.

63

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

64

144227

SPIDER, REEL

2шт.

65

394337R1

BRACKET, flashing light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

2шт.

66

394262R1

WASHER

GASKET, flashing warning light

1шт.

67

394129R91

LIGHT

ASSY, flashing safety warning, only serviceable items are lamp 9417866, amber lens 899280R1, or red lens, 899279R1, Dietz

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

68

365501R1

TERMINAL CONNECTOR

TERMINAL, transmission oil switch angle

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

69

532323R1

CABLE ASSY, temperature switch to pressure switch

1шт.

70

354558R1

SHIELD

low pressure switch

1шт.

71

534599R1

SWITCH

low pressure warning

1шт.

72

405895R1

CABLE ASSY, harness junction to breakaway connector socket

1шт.

395228R1

CABLE CLIP

CLIP, breakaway connector cable

1шт.
