(90.124.030) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, BASE PLATE

Запчасти Case IH OPTUM 300 CVT (90.124.030) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

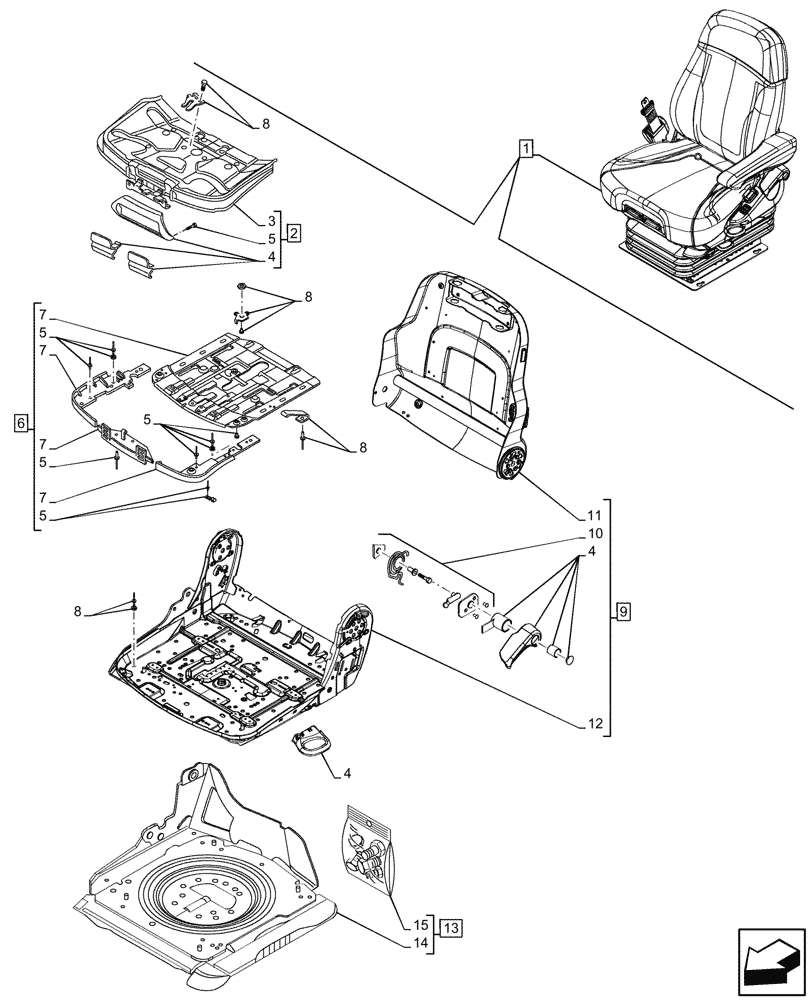

Схема запчастей Case IH OPTUM 300 CVT - (90.124.030) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, BASE PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
7
5
1
7
8
9
8
8
7
2
3
15
6
4
5
8
14
7
12
13
5
10
5
4
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47544015

DRIVER SEAT

ASSY, Fabric Verona Grey, Comfort Pack 1, Incl 2 - 15

1шт.

See also Driver Seat Components in Figure 55.512.240, 55.512.250, 90.124.020, 90.124.040, 90.124.050, 90.151.170

1шт.

2

47897080

SERVICE KIT

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

4

47891302

ACTUATOR

1шт.

5

84191202

SET OF PARTS

1шт.

6

84302186

SEAT

ASSY, Incl 5, 7

1шт.

7

NSS

NOT SOLD SEPARAT

Seat, Incl in 6

1шт.

8

47891407

SERVICE KIT

1шт.

9

47891522

SERVICE KIT

ASSY, Incl 4, 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Backrest Adjustment, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Backrest, Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

Seat, Incl in 9

1шт.

13

47891495

SERVICE KIT

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Support, Incl in 13

1шт.

15

47897033

SERVICE KIT

1шт.
