(90.116.030) - VAR - 758686, 758989 - WIDE REAR FENDERS, EXTREMITY LIGHT

Запчасти Case IH OPTUM 300 CVT (90.116.030) - VAR - 758686, 758989 - WIDE REAR FENDERS, EXTREMITY LIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS

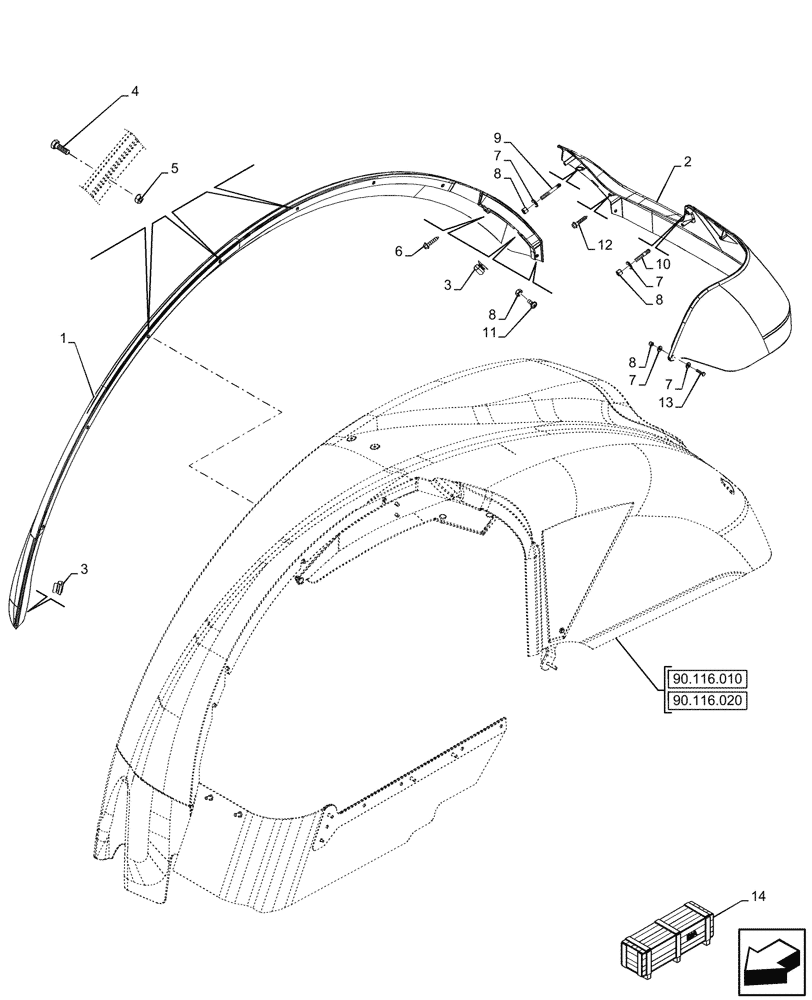

Схема запчастей Case IH OPTUM 300 CVT - (90.116.030) - VAR - 758686, 758989 - WIDE REAR FENDERS, EXTREMITY LIGHT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.010
7
3
8
6
7
1
10
8
13
7
8
2
4
7
5
14
3
9
11
12
8
90.116.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47794734

FENDER EXTENSION

LH

1шт.

1

47794729

FENDER EXTENSION

RH

1шт.

2

47794746

EXTENSION

Rear LH

1шт.

2

47794743

EXTENSION

Rear RH

1шт.

3

87622826

SPRING CLIP,0.5mm Thk

2шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

8шт.

5

13046111

LOCK NUT,Flg Lock, M6

8шт.

6

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

7

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6шт.

8

12574211

NUT,M6 x 1, Cl 8

4шт.

9

47942676

STUD,M6 x 50 x 12, 8.8 ZND

M6 x 50mm

1шт.

10

11500624

STUD,M6 x 1 x 25

M6 x 25mm

1шт.

11

87597956

SELF-TAP SCREW,Pan Cross Recess Phillips, M6.3 x 1.8 x 22mm

1шт.

12

47954111

SCREW,M6 x 3 x 25mm L

M6 x 3 x 25mm

4шт.

13

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

14

710869144

DIA KIT, TRACTOR

Narrow Rear Fender Extension, Incl 1 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
