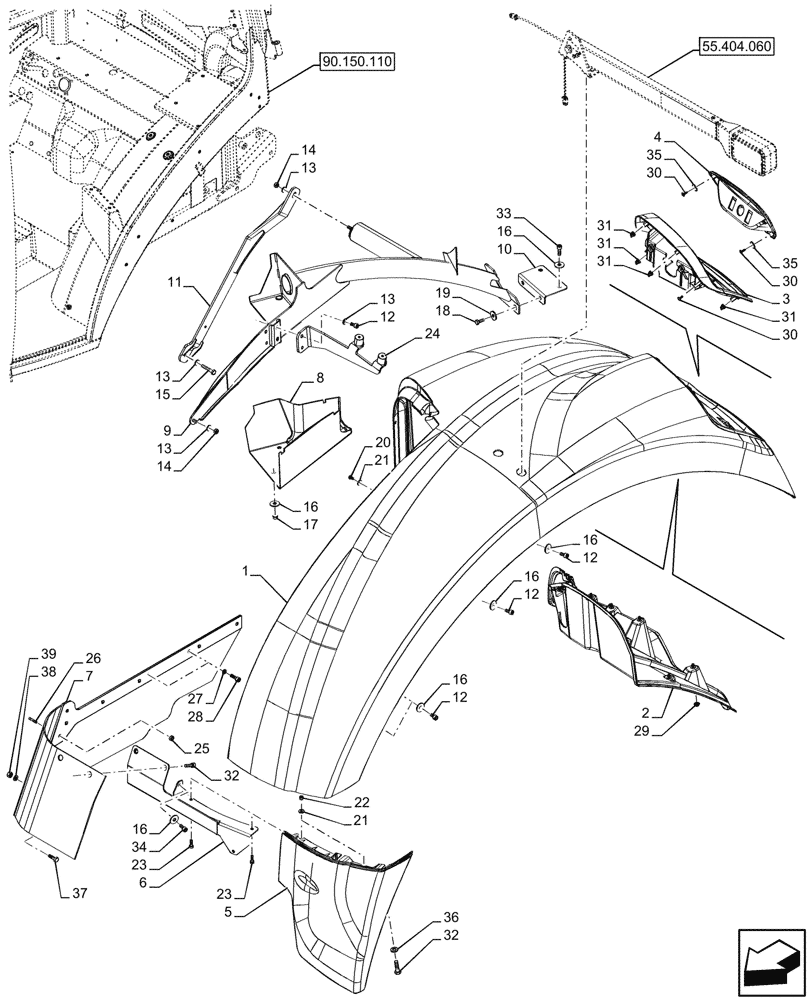

Запчасти Case IH OPTUM 300 CVT (90.116.020) - VAR - 758688, 758689, 758690 - WIDE REAR FENDERS, EXTREMITY LIGHT - END SN ZGEA01708 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47822540

REAR FENDER

Fender LH

1шт.

1

47822544

REAR FENDER

Fender RH

1шт.

2

47786949

COVER

Lower Cover, LH

1шт.

2

47787462

COVER

Lower Cover, RH

1шт.

3

47822615

COVER

Cover Lamp, LH

1шт.

3

47822618

COVER

Cover Lamp, RH

1шт.

4

47786980

COVER

Switch Cover, LH

1шт.

4

47786978

COVER

Switch Cover, RH

1шт.

5

47799118

EXTENSION

Extension, Front LH

1шт.

5

47815523

EXTENSION

Extension, Front RH

1шт.

6

47817232

BRACKET

Bracket, LH

1шт.

6

47817277

BRACKET

Bracket, RH

1шт.

7

47787416

GUARD

Mud Guard

2шт.

8

47900598

COVER

Cover Cab Side, LH

1шт.

8

47900704

COVER

Cover Cab Side, RH

1шт.

9

47873768

SUPPORT

Support, LH

1шт.

9

47873772

SUPPORT

Support, RH

1шт.

10

47787014

BRACKET

2шт.

11

47787005

CROSSBAR

2шт.

12

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

6шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

7шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

15

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

16

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

9шт.

17

47558836

NUT,Hex, M10 x 1.25

4шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

19

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

2шт.

20

87391924

BOLT,Hex, M6 - 1 x 12mm, FULL, SST

1шт.

21

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

3шт.

22

12574211

NUT,M6 x 1, Cl 8

2шт.

23

15698004

SELF-TAP SCREW,Hex Wash Hd, M6 x 3 x 30mm

2шт.

24

47883990

SUPPORT

Light Suport, RH

1шт.

24

47884001

SUPPORT

Light Suport, LH

1шт.

25

15896211

NUT,M6, Cl 8

2шт.

26

11500520

STUD,M6 x 1 x 22

M6 x 9 x 22mm

2шт.

27

14499421

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

3шт.

28

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

3шт.

29

13046111

LOCK NUT,Flg Lock, M6

14шт.

30

15690804

SELF-TAP SCREW,Cross Pan Hd, M10 x 1.6 x 16mm

4шт.

31

278316A2

CLIP

4шт.

32

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

33

14306431

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

34

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

35

12624101

WASHER,M5 x 22 x 2

4шт.

36

11194774

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

37

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

38

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

39

353308

NUT,M6 x 1.0, Cl 8

2шт.
