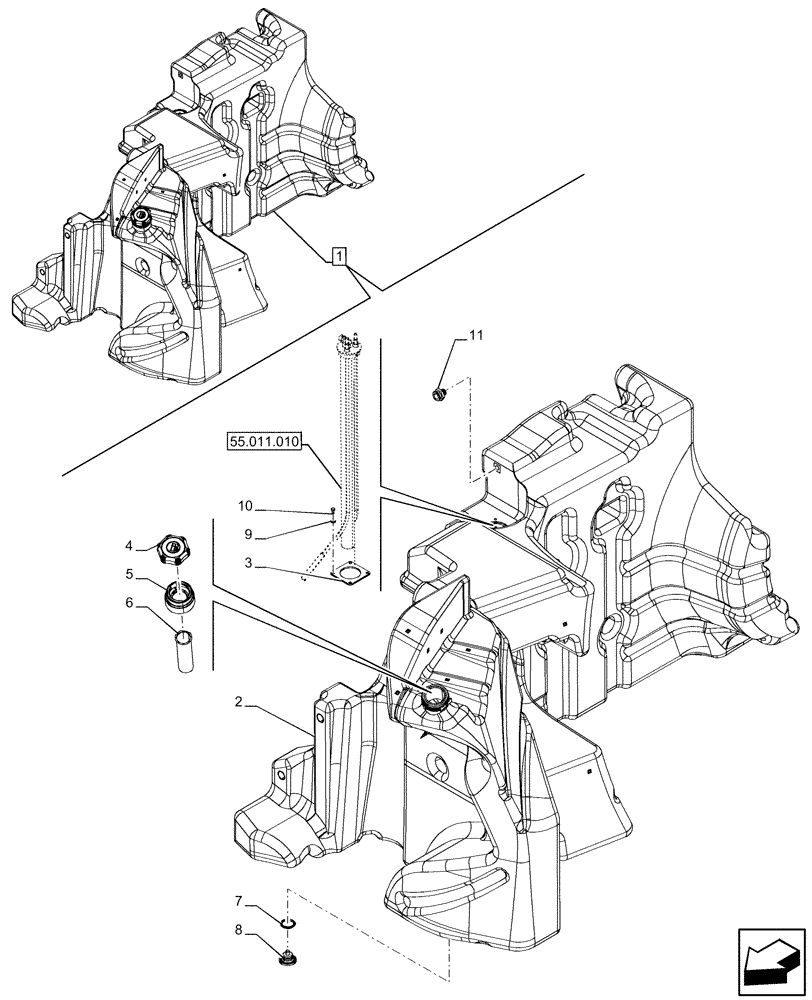

Запчасти Case IH OPTUM 300 CVT (10.216.020) - VAR - 391131, 758005 - FUEL TANK (10) - ENGINE

1

47733762

FUEL TANK

ASSY, Incl 2 - 11

1шт.

See also Urea Tank Components in Figure 55.011.010

1шт.

2

NSS

NOT SOLD SEPARAT

Fuel Tank, Incl in 1

1шт.

3

87586744

RETAINER,64mm ID x 90mm L x 90mm W x 4mm Thk

1шт.

4

47907581

FILLER CAP,Male, Vented_No Lockable

1шт.

5

84236742

NECK FILLER

1шт.

6

84481152

FILTER SCREEN

Fuel Tank

1шт.

7

84180404

O-RING,3.5mm Thk x 39.0mm ID

1шт.

8

84180403

DRAIN PLUG

1шт.

9

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

10

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

4шт.

11

82035326

ADAPTER

1шт.
