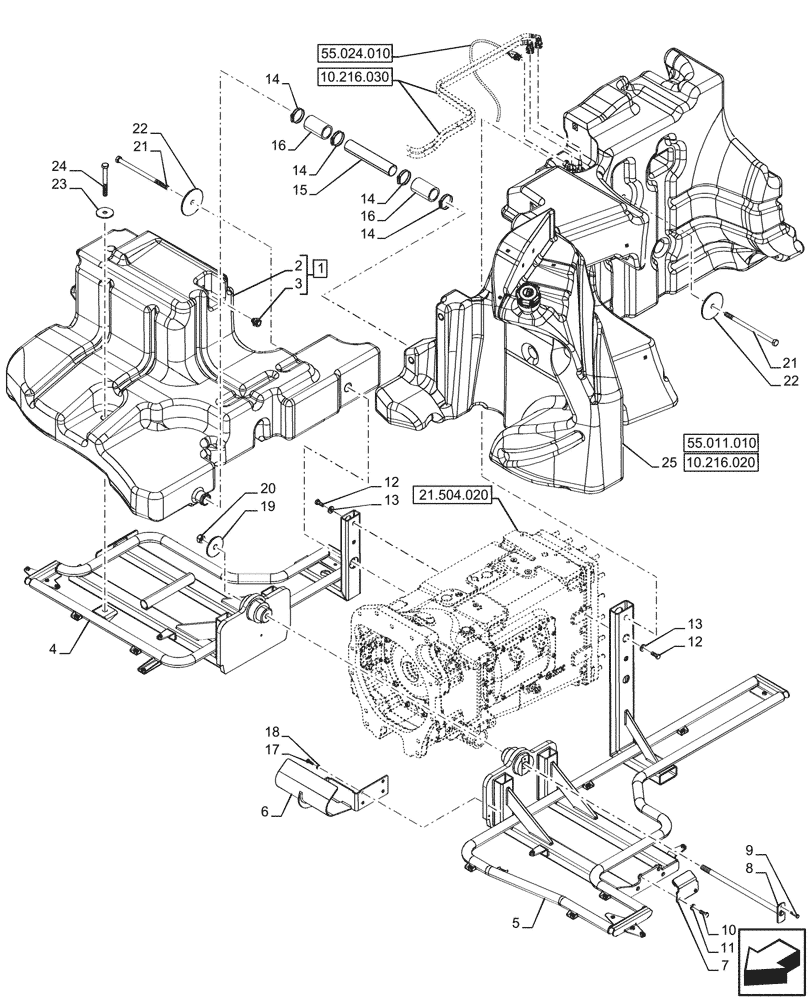

Запчасти Case IH OPTUM 300 CVT (10.216.010) - VAR - 391131, 758001 - FUEL TANK, SUPPORT, EXTRA FUEL TANK (10) - ENGINE

1

47733778

FUEL TANK

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Auxiliary Tank, Incl in 1

1шт.

3

82035326

ADAPTER

1шт.

4

47881250

FRAME

Black

1шт.

5

47881253

FRAME

Black

1шт.

6

47712990

SHIELD

Black

1шт.

7

47731907

PLATE

Black

1шт.

8

47774129

ROD,M20 x 450mm L

1шт.

9

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

1шт.

10

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

11

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

12

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

13

12648501

WASHER,12.2mm ID x 28mm OD x 4mm Thk

4шт.

14

82036462

CLAMP,50mm - 70mm

4шт.

15

47733759

TUBE

from Auxiliary Fuel Tank to Fuel Tank

1шт.

16

87387657

TUBE

2шт.

17

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

18

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

4шт.

19

47582428

SPACER,22mm ID x 90mm OD x 5mm L

1шт.

20

12163527

NUT,Hex, M20, 2.5mm Pitch, BZN

1шт.

21

9780016

BOLT,Hex, M16 x 2 x 280mm, Cl 8.8

3шт.

22

47582427

SPACER,17mm ID x 120mm OD x 5mm L

3шт.

23

334967

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

1шт.

24

47601294

WASHER,17mm ID x 70mm OD x 4.5mm Thk

1шт.

25

47733762

FUEL TANK

ASSY

1шт.
