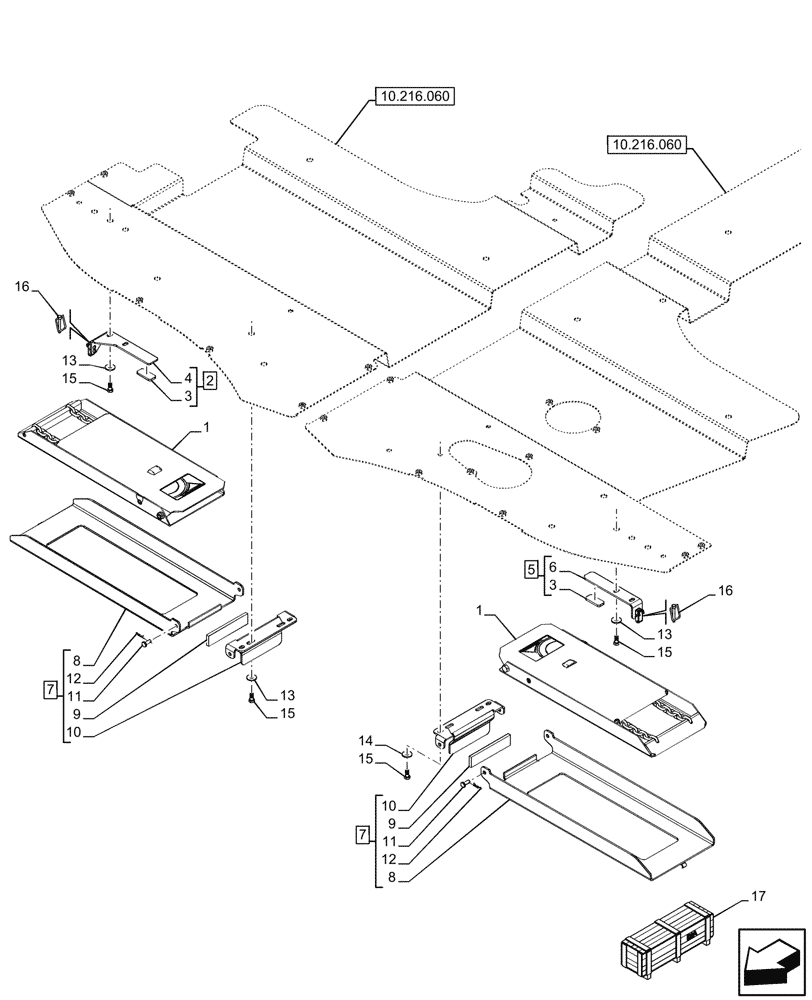

Запчасти Case IH OPTUM 300 CVT (88.100.150) - WHEEL CHOCK (88) - ACCESSORIES

1

84367151

WHEEL CHOCK

2шт.

2

47729936

BRACKET

ASSY, Incl 3 (Qty 1), 4

1шт.

3

47721027

STRIP

2шт.

4

NSS

NOT SOLD SEPARAT

Bracket, Incl in 2

1шт.

5

47729937

BRACKET

ASSY, Incl 3 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Bracket, Incl in 5

1шт.

7

47799756

BRACKET

ASSY, Incl 8 (Qty1), 9 (Qty 1), 10 (Qty 1), 11 (Qty 2), 12 (Qty 2)

2шт.

8

47729930

BRACKET

2шт.

9

NSS

NOT SOLD SEPARAT

Seal, Incl in 7

2шт.

10

47729910

BRACKET

2шт.

11

385818

CLEVIS PIN,M8 x 20

4шт.

12

83947375

COTTER PIN,9/64 x 0.76 x 0.054

4шт.

13

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

6шт.

14

86639316

WASHER,8.4mm ID x 20mm OD x 2mm Thk

2шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

16

87109290

LOCK PIN,25.4mm OD x 30mm L

2шт.

17

718190034

DIA KIT, TRACTOR

Wheel Chocks - CCM HD, Incl 1 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
