(88.100.090[04]) - DIA KIT, WIDE REAR FENDERS, EXTREMITY LIGHT, SUPPORT

Запчасти Case IH OPTUM 300 CVT (88.100.090[04]) - DIA KIT, WIDE REAR FENDERS, EXTREMITY LIGHT, SUPPORT (88) - ACCESSORIES

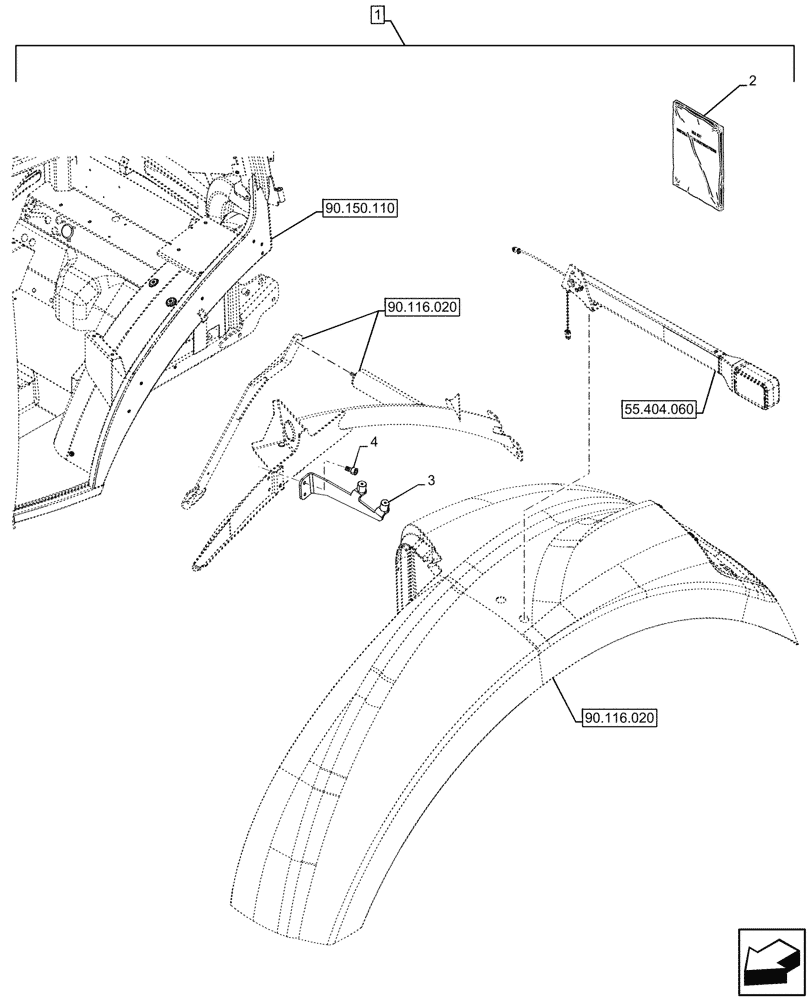

Схема запчастей Case IH OPTUM 300 CVT - (88.100.090[04]) - DIA KIT, WIDE REAR FENDERS, EXTREMITY LIGHT, SUPPORT (88) - ACCESSORIES
90.150.110
2
1
4
3
90.116.020
90.116.020
55.404.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710615044

DIA KIT, TRACTOR

Extremity Light, Incl 2 - 4

1шт.

2

47855091

INSTRUCTION

1шт.

3

47883990

SUPPORT

LH

1шт.

3

47884001

SUPPORT

RH

1шт.

4

14302821

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.
