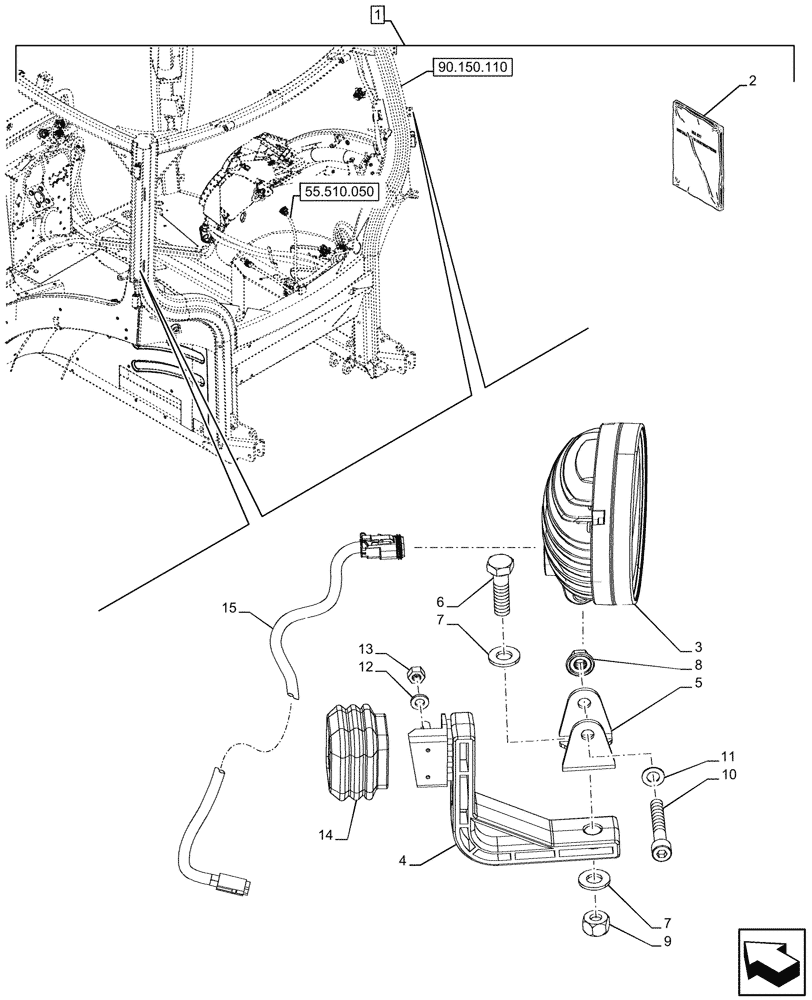

Запчасти Case IH OPTUM 300 CVT (88.100.055[08]) - DIA KIT, ADDITIONAL WORK LIGHT, PILLAR (88) - ACCESSORIES

1

719766104

DIA KIT, TRACTOR

2 Worklamps on C Pillar, Incl 2 - 15

1шт.

2

47840710

INSTRUCTION

1шт.

3

47677856

HEADLAMP,20W

2шт.

4

47643764

SUPPORT

2шт.

5

47732510

BRACKET

2шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

8

13046211

NUT,Flange Hex, M8

2шт.

9

440430

NUT,M10

2шт.

10

14306924

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8

2шт.

11

10571770

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

13

15896211

NUT,M6, Cl 8

4шт.

14

47706157

BOOT

2шт.

15

47705584

WIRE HARNESS

C-Pillar Worklamp

2шт.
