(88.100.055[05]) - DIA KIT, ISOBUS SOCKET, SUPPORT

Запчасти Case IH OPTUM 300 CVT (88.100.055[05]) - DIA KIT, ISOBUS SOCKET, SUPPORT (88) - ACCESSORIES

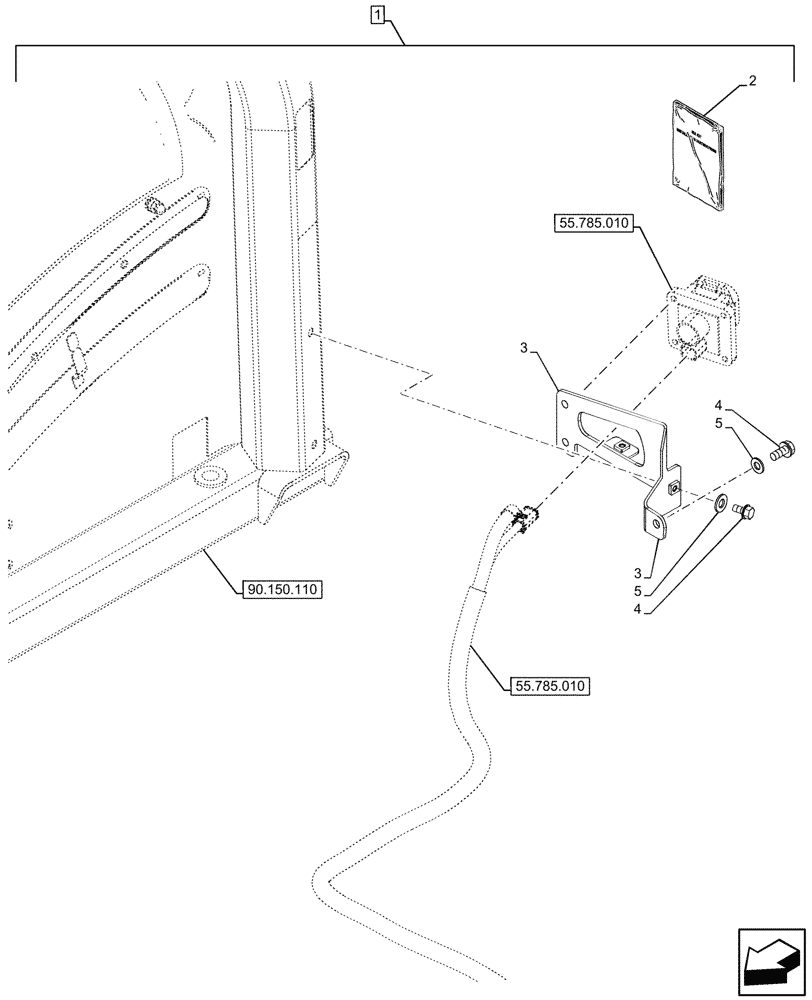

Схема запчастей Case IH OPTUM 300 CVT - (88.100.055[05]) - DIA KIT, ISOBUS SOCKET, SUPPORT (88) - ACCESSORIES
90.150.110
5
5
1
3
4
2
3
4
55.785.010
55.785.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719344124

DIA KIT, TRACTOR

Isobus CL 2 RR Breakaway Socket 11873, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47855093

INSTRUCTION

1шт.

3

47892412

BRACKET

1шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

5

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 6
