(88.100.037[02]) - DIA KIT, STEERING, W/ K80 BALL

Запчасти Case IH OPTUM 300 CVT (88.100.037[02]) - DIA KIT, STEERING, W/ K80 BALL (88) - ACCESSORIES

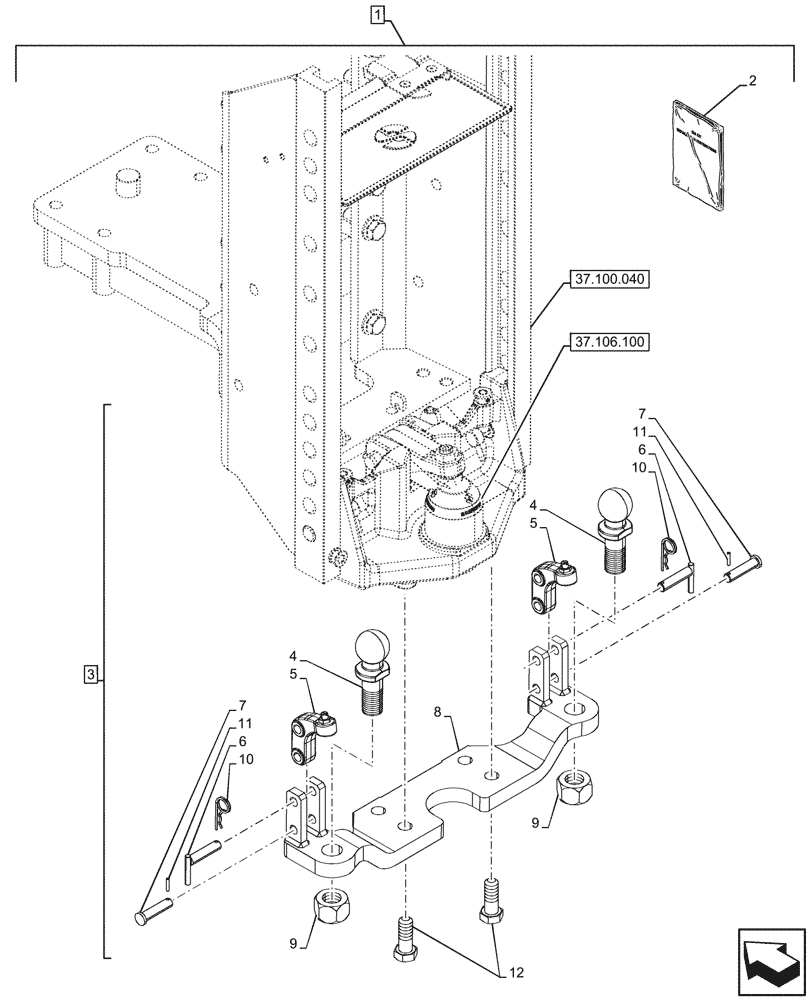

Схема запчастей Case IH OPTUM 300 CVT - (88.100.037[02]) - DIA KIT, STEERING, W/ K80 BALL (88) - ACCESSORIES
37.106.100
8
4
11
10
7
10
12
11
3
2
5
6
6
5
4
1
9
9
7
37.100.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

731018014

DIA KIT, TRACTOR

Steering Guides, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880252

INSTRUCTION

1шт.

3

47553609

TOW HOOK

ASSY, Incl 4 - 11

1шт.

4

47690720

BALL JOINT

Steering Guidance

2шт.

5

47690716

LEVER

Hold Down Steering Guidance

2шт.

6

47690723

PIN

2шт.

7

47690722

PIN

2шт.

8

47690713

PLATE

1шт.

9

47705809

NUT,M20 x 1.5, Cl 8

2шт.

10

47645035

COTTER PIN,2.5mm OD x 48mm L

2шт.

11

14164071

ROLL PIN,4mm OD x 22mm L

2шт.

12

11125034

BOLT,Hex, M20 x 65, 10.9

4шт.
