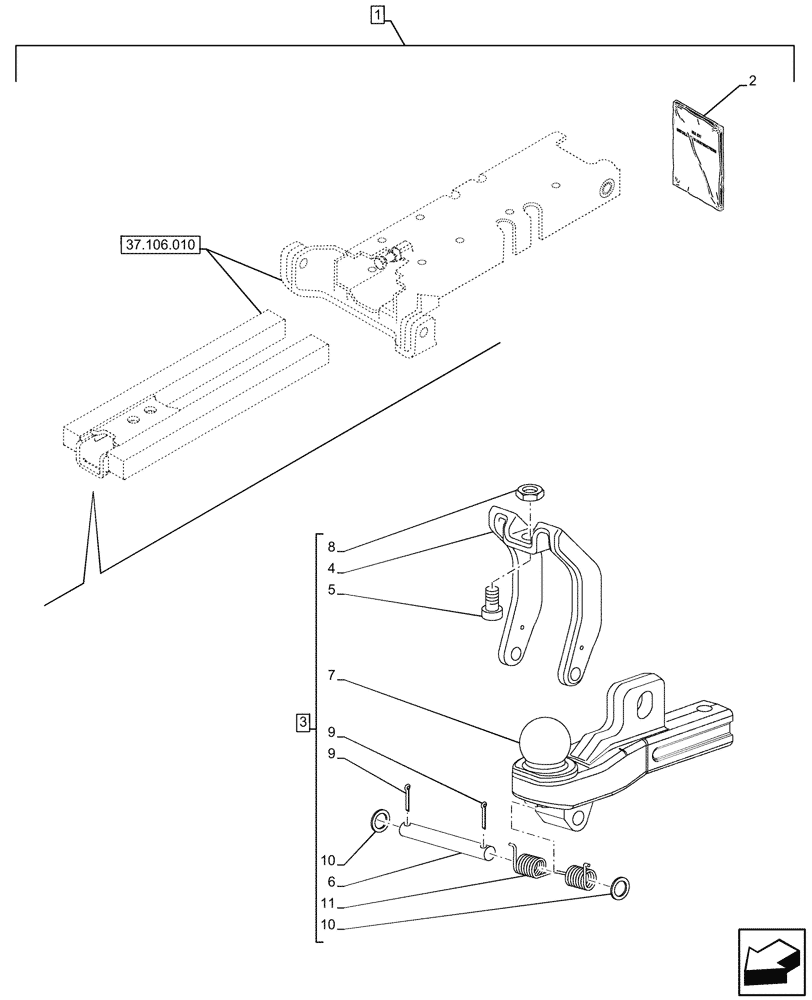

Запчасти Case IH OPTUM 300 CVT (88.100.037[01]) - DIA KIT, W/ K80 BALL (88) - ACCESSORIES

1

710535014

DIA KIT, TRACTOR

K80 Ball Drawbar, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47878186

INSTRUCTION

1шт.

3

47617831

DRAWBAR

ASSY, Incl 4 - 11

1шт.

4

84532408

LEVER

1шт.

5

84532410

BOLT,430mm L x 70mm Thk

1шт.

6

84532409

PIN

1шт.

7

NSS

NOT SOLD SEPARAT

Drawbar, Dark Grey, Incl in 3

1шт.

8

84547175

NUT

1шт.

9

14604379

PIN,6mm OD x 36mm L

2шт.

10

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

11

84532411

SPRING

1шт.
