(88.100.035[12]) - DIA KIT, ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, PIPE

Запчасти Case IH OPTUM 300 CVT (88.100.035[12]) - DIA KIT, ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, PIPE (88) - ACCESSORIES

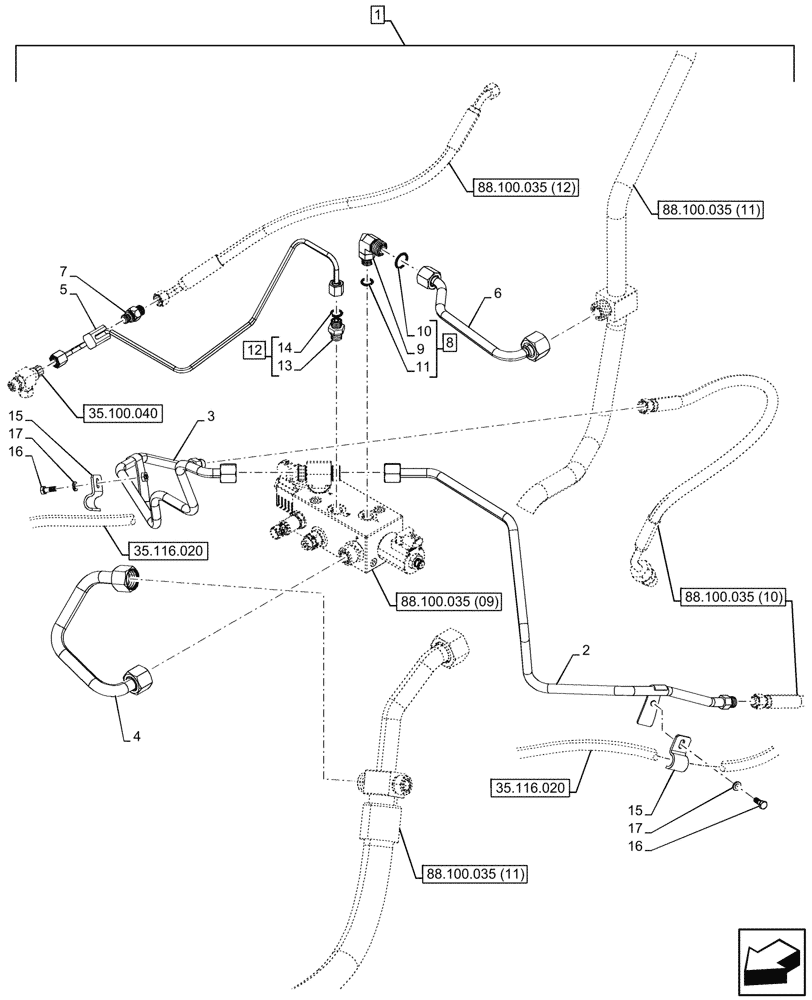

Схема запчастей Case IH OPTUM 300 CVT - (88.100.035[12]) - DIA KIT, ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, PIPE (88) - ACCESSORIES
35.100.040
9
14
11
13
15
12
16
4
2
17
16
10
7
6
15
8
1
3
5
17
88.100.035 (12)
88.100.035 (09)
88.100.035 (10)
88.100.035 (11)
88.100.035 (11)
35.116.020
35.116.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

731010014

DIA KIT, TRACTOR

Hydraulic Stabilizers, Incl 2 - 17

1шт.

2

47846661

PIPE

RH, Stabilizer Cylinder

1шт.

3

47846659

PIPE

LH, Stabilizer Cylinder

1шт.

4

47854067

PIPE

Stabilizer Valve Supply

1шт.

5

47854692

PIPE

Stabilizer LS

1шт.

6

47859356

PIPE

Stabilizer Valve Discharge

1шт.

7

87551023

CHECK VALVE

1шт.

8

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

87661868

HYD CONNECTOR,M14 x 1.5 x 29.5mm L

ASSY, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

5178447

BRACKET

2шт.

16

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

17

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
