(88.100.035[11]) - DIA KIT, ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, PIPE

Запчасти Case IH OPTUM 300 CVT (88.100.035[11]) - DIA KIT, ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, PIPE (88) - ACCESSORIES

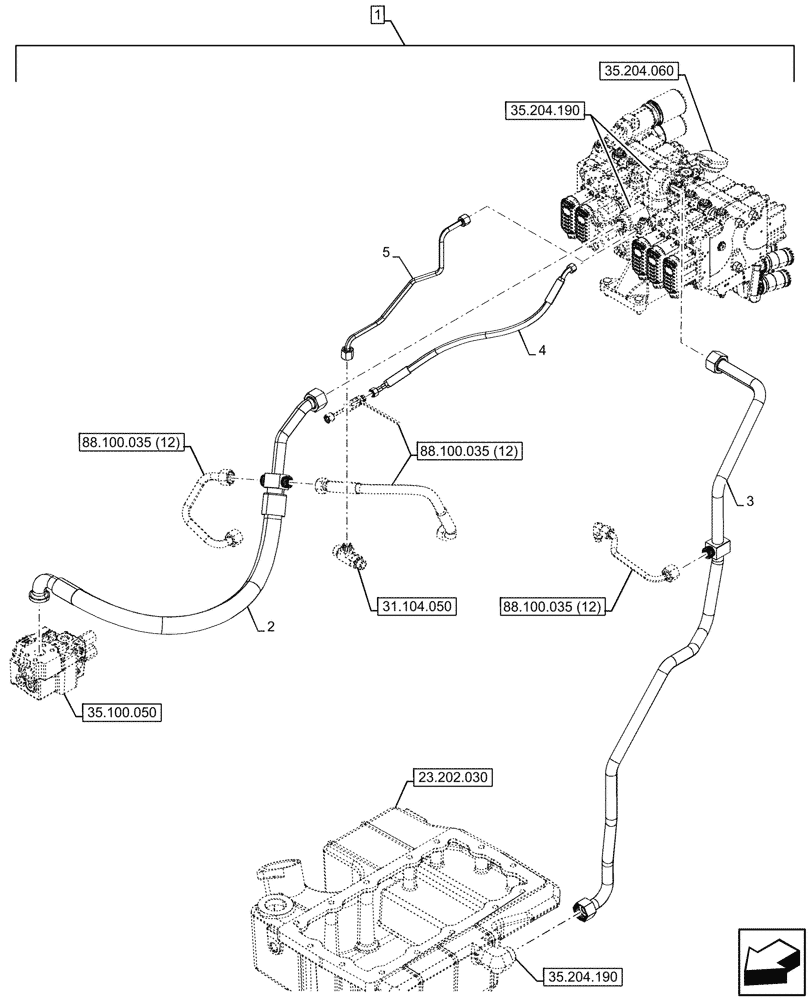

Схема запчастей Case IH OPTUM 300 CVT - (88.100.035[11]) - DIA KIT, ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, PIPE (88) - ACCESSORIES
35.204.190
5
4
3
1
2
88.100.035 (12)
88.100.035 (12)
88.100.035 (12)
35.100.050
31.104.050
35.204.060
23.202.030
35.204.190
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

731010014

DIA KIT, TRACTOR

Hydraulic Stabilizers, Incl 2 - 5

1шт.

2

47854678

PIPE

Supply to Remotes

1шт.

3

47861033

PIPE

Remotes Drain

1шт.

4

47904955

HOSE,6.3mm ID x 570mm L

6.3mm ID x 570mm L, Hydraulic, LS Remote

1шт.

5

47848951

PIPE

Low Pressure Remotes

1шт.

Выбрано товаров: 5
