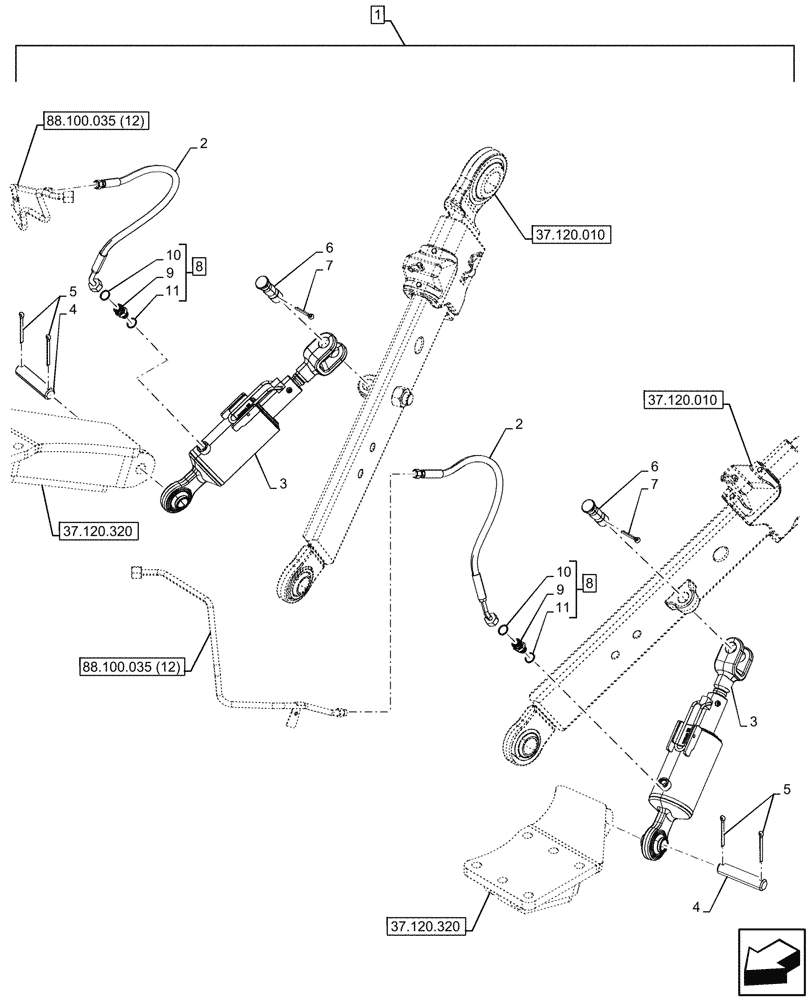

Запчасти Case IH OPTUM 300 CVT (88.100.035[10]) - DIA KIT, ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, STABILIZER (88) - ACCESSORIES

1

731010014

DIA KIT, TRACTOR

Hydraulic Stabilizers, Incl 2 - 11

1шт.

2

47854066

HOSE,6.3mm ID x 645mm L

6.3mm ID x 645mm L

2шт.

3

47711928

STABILIZER

Hydraulic

2шт.

4

47635089

PIN,25.5mm OD x 118mm L

Stabilizer

2шт.

5

10795404

COTTER PIN,6.3mm OD x 63mm L

4шт.

6

47633699

PIN,30mm OD x 80mm L

2шт.

7

10798301

COTTER PIN,M6.3 x 36

2шт.

8

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

10

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
