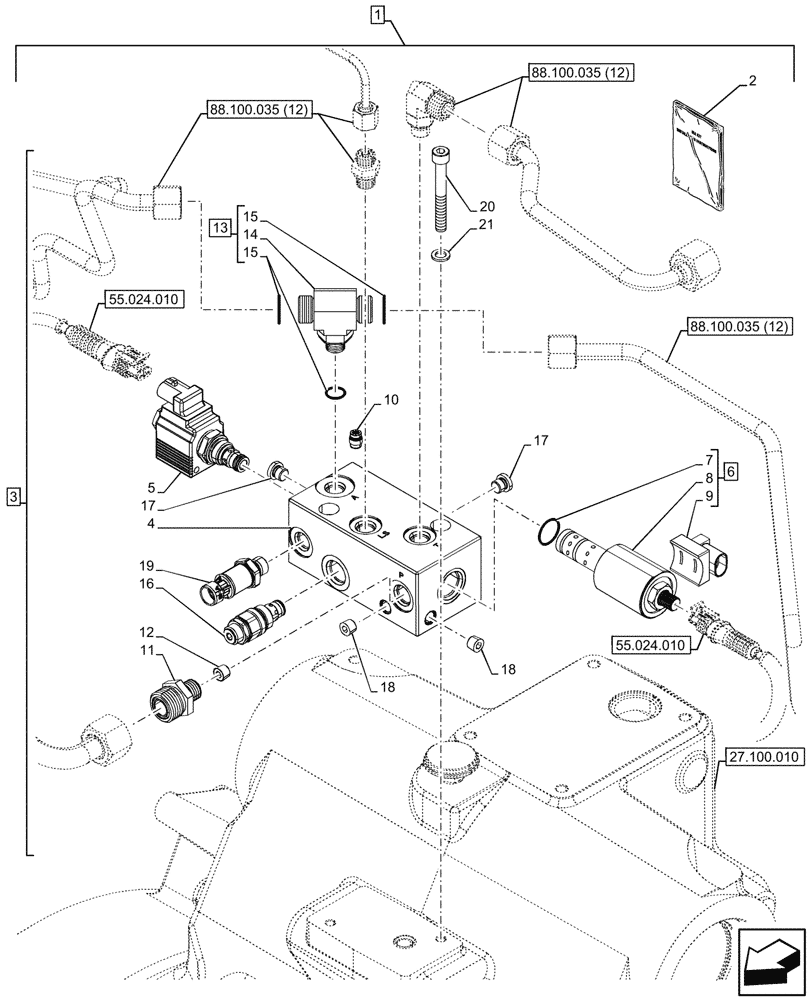

Запчасти Case IH OPTUM 300 CVT (88.100.035[09]) - DIA KIT, ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, VALVE (88) - ACCESSORIES

1

731010014

DIA KIT, TRACTOR

Hydraulic Stabilizers, Incl 2 - 21

1шт.

2

47934115

INSTRUCTION

1шт.

3

47843660

HYDRAULIC VALVE

ASSY, Stabilizer, Incl 4 - 19

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 3

1шт.

5

47513122

SOLENOID,12 VDC, 21W, 6.85 Ohm

2W/2P

1шт.

6

84486704

SOLENOID,12 VDC, 23W, 5.9 Ohm, 210 bar

ASSY, 3W/2P, Incl 7 - 9

1шт.

7

86637738

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

8

84484327

CARTRIDGE

1шт.

9

87758490

COIL

1шт.

10

47873859

CHECK VALVE

1шт.

11

47874300

FITTING,M10 x 1

1шт.

12

47874283

ORIFICE,M10 x 1 x 8mm L

1шт.

13

87016911

TEE,13/16"-16 ORFS x M14 x 1.5 ORB Br

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Tee, Incl in 13

1шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

16

47897627

VALVE PRESSURE RELIE

1шт.

17

10118511

PLUG,M10 x 1

2шт.

18

47741913

HEX PLUG,M10 x 1

2шт.

19

84409605

SENSOR

1шт.

20

14359321

HEX SOC SCREW,M8 x 65mm, Cl 8.8

2шт.

21

14499404

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.
