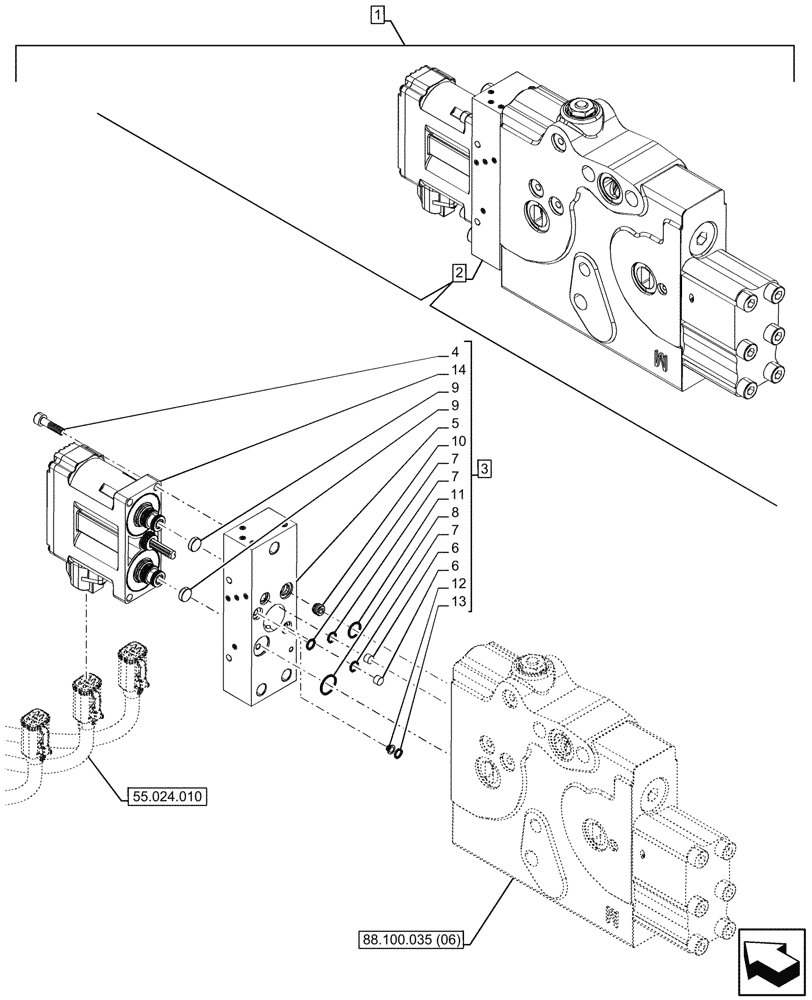

Запчасти Case IH OPTUM 300 CVT (88.100.035[07]) - DIA KIT, 4/5TH REMOTE CONTROL VALVE, SOLENOID (88) - ACCESSORIES

1

719412124

DIA KIT, TRACTOR

1 Additional Slice Compatible W/ Pos. 4 / 5, Incl 2 - 14

1шт.

2

47723760

HYDRAULIC VALVE

ASSY, Main Low Leak, Incl 3 - 14

1шт.

See also Components in Figure 88.100.035 (06)

1шт.

3

47735858

PILOT VALVE

ASSY, Incl 4 - 14

1шт.

4

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

5

NSS

NOT SOLD SEPARAT

Adapter Plate, Incl in 3

1шт.

6

87714123

FILTER

2шт.

7

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

8

84313724

O-RING,12.42mm ID x 1.78mm Thk

1шт.

9

47592733

FILTER STRAINER

2шт.

10

NSS

NOT SOLD SEPARAT

Filter, Incl in 3

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 3

1шт.

12

NSS

NOT SOLD SEPARAT

Filter, Incl in 3

1шт.

13

47711752

O-RING,1.78mm Thk x 9.25mm ID, -012, 80 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Pilot Head Valve, Incl in 3

1шт.
