Запчасти Case IH OPTUM 300 CVT (88.100.035[02]) - DIA KIT, W/ POWER BEYOND COUPLERS, REMOTE CONTROL VALVE, COMPONENTS (88) - ACCESSORIES

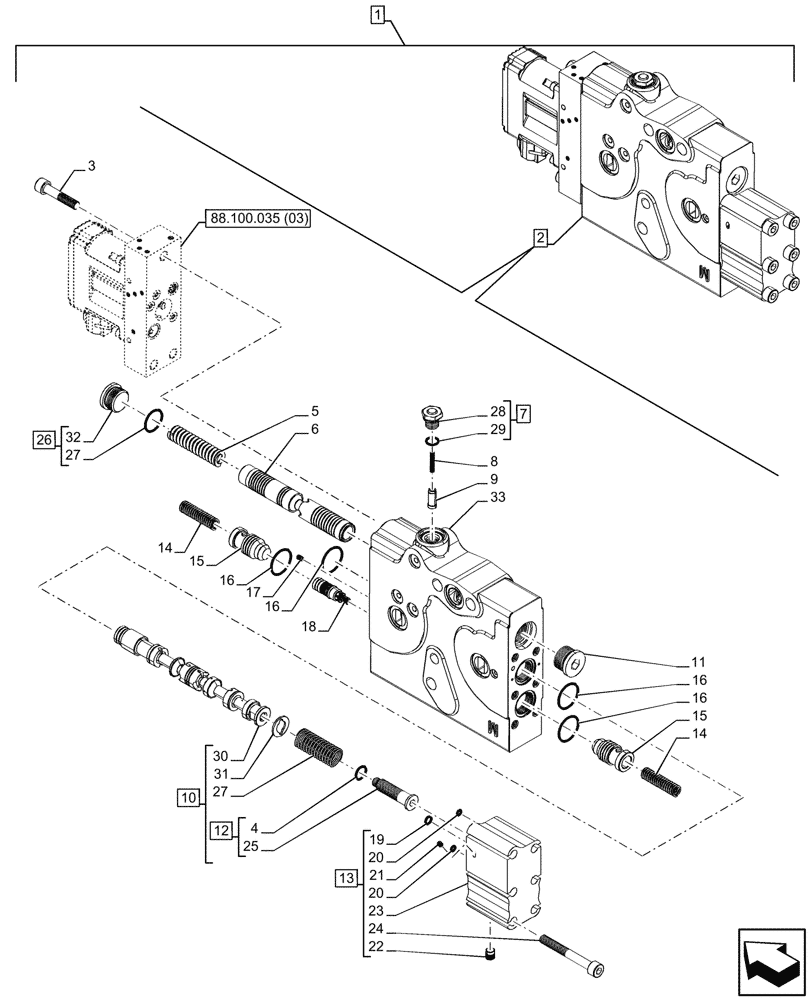

Схема запчастей Case IH OPTUM 300 CVT - (88.100.035[02]) - DIA KIT, W/ POWER BEYOND COUPLERS, REMOTE CONTROL VALVE, COMPONENTS (88) - ACCESSORIES
88.100.035 (03)
19
15
27
16
22
16
30
20
14
16
12
3
16
11
18
4
25
29
33
6
28
13
26
23
21
24
5
17
9
15
1
27
31
14
7
32
2
8
20
10

Артикул

Название

Примечание

Количество

1

718917054

DIA KIT, TRACTOR

Power Beyond Slice, Incl 2 - 33

1шт.

2

47594399

HYDRAULIC VALVE

ASSY, Main Low Leak, Incl 3 - 33

1шт.

See also Components in Figure 88.100.035 (03)

1шт.

3

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

4

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

5

436854A1

SPRING,15.11mm OD x 63.35mm L

1шт.

6

47434055

SPOOL,15.9mm ID x 18.75mm OD x 133.6mm L

1шт.

7

87648607

PLUG,M12 x 1.5 ORB

ASSY, Incl 28, 29

1шт.

8

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

9

87648631

PIN,8mm OD x 19mm L

1шт.

10

47499449

SPOOL

ASSY, Incl 4, 12, 25, 27, 30, 31

1шт.

11

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

12

47426760

PLUG,5/16" - 24

ASSY, 4, 25

1шт.

13

87329482

VALVE BODY

ASSY, Incl 19 - 24, 26

1шт.

14

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

2шт.

15

47683317

POPPET

2шт.

16

47422966

SEAL,23.52mm ID x 1.78mm Thk

4шт.

17

84579020

PLUG,1.81" - 2.75"

5шт.

18

84307011

CHECK VALVE

1шт.

19

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

20

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

21

282836A1

PLUG,4mm OD x 4mm L

2шт.

22

282839A1

PLUG,8mm OD x 8.5mm L

1шт.

23

NSS

NOT SOLD SEPARAT

Cover, Incl in 13

1шт.

24

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

25

87437101

EXPANSION PLUG,Hex, 6.31mm ID x 15.5mm OD x 48.5mm L

1шт.

26

47426874

PLUG,7/8" - 14

ASSY, Incl 27, 33

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

Plug, Incl in 7

1шт.

29

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

30

NSS

NOT SOLD SEPARAT

Spool, Incl in 10

1шт.

31

87437168

WASHER,11.75mm ID x 21mm OD x 1.5mm Thk

2шт.

32

NSS

NOT SOLD SEPARAT

Plug, Incl in 26

1шт.

33

NSS

NOT SOLD SEPARAT

Body, incl in 2

1шт.
