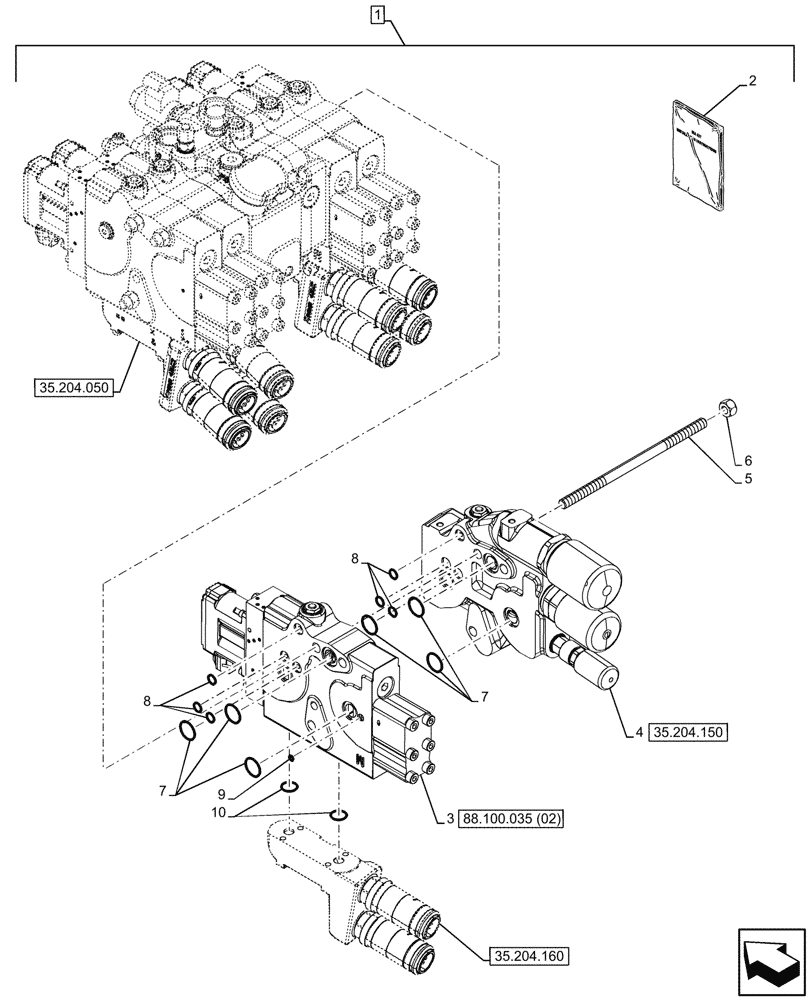

Запчасти Case IH OPTUM 300 CVT (88.100.035[01]) - DIA KIT, W/ POWER BEYOND COUPLERS, REMOTE CONTROL VALVE (88) - ACCESSORIES

1

718917054

DIA KIT, TRACTOR

Power Beyond Slice, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47855085

INSTRUCTION

1шт.

3

47594399

HYDRAULIC VALVE

Main Low Leak, ASSY

1шт.

4

87607904

HYD VALVE SECTION

Power Beyond, ASSY

1шт.

5

87604617

STUD,M12 x 1.75 x 235mm L

3шт.

6

829-1312

NUT,M12 x 1.75, Cl 10

3шт.

7

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

6шт.

8

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

6шт.

9

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

1шт.

10

87635381

O-RING,2.62mm Thk x 15.54mm ID, -114, 80 Duro

2шт.
