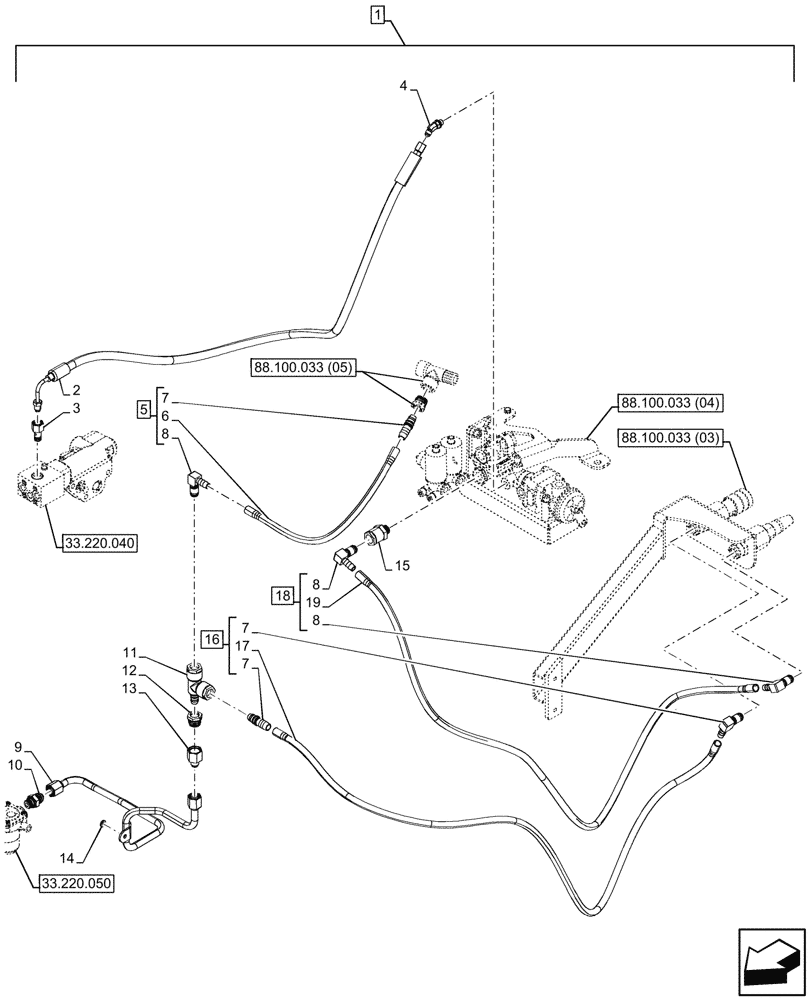

Запчасти Case IH OPTUM 300 CVT (88.100.033[06]) - DIA KIT, AIR BRAKE, PNEUMATIC, LINE (88) - ACCESSORIES

1

718264044

DIA KIT, TRACTOR

Pneumatic Air Brake Base Kit, Incl 2 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47427541

PIPE

Brake

1шт.

3

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

4

87588084

HYD CONNECTOR,M10 x 1

1шт.

5

47782312

HOSE,12mm ID x 520mm L

ASSY, Valve to DLCV, Incl 6, 7 (Qty 1), 8 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Incl in 5

1шт.

7

87588082

HYD CONNECTOR,M12 x 1.5

3шт.

8

82038479

90 ELBOW,NG12 x 12mm D

3шт.

9

47774330

PIPE

1шт.

10

84382417

HYD CONNECTOR,M16 x 1.5 x 38mm L

1шт.

11

84185248

HYD CONNECTOR

1шт.

12

82036156

FITTING,M22 x 1.5 x NG12

1шт.

13

84425324

HYD CONNECTOR,M22 x 1.5 x 40mm L

1шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

84157696

HYD CONNECTOR,MG12 / M16 x 1.5mm

1шт.

16

47905503

HOSE,12mm ID x 800mm L

ASSY, DLCV to Red Coupler, Incl 7, 17

1шт.

17

NSS

NOT SOLD SEPARAT

Tube, Incl in 16

1шт.

18

47928202

HOSE,12mm ID x 680mm L

ASSY, DLCV to Yellow Coupler, Incl 8, 19

1шт.

19

NSS

NOT SOLD SEPARAT

Tube, Incl in 18

1шт.
