(88.100.033[04]) - DIA KIT, AIR BRAKE, PNEUMATIC VALVE

Запчасти Case IH OPTUM 300 CVT (88.100.033[04]) - DIA KIT, AIR BRAKE, PNEUMATIC VALVE (88) - ACCESSORIES

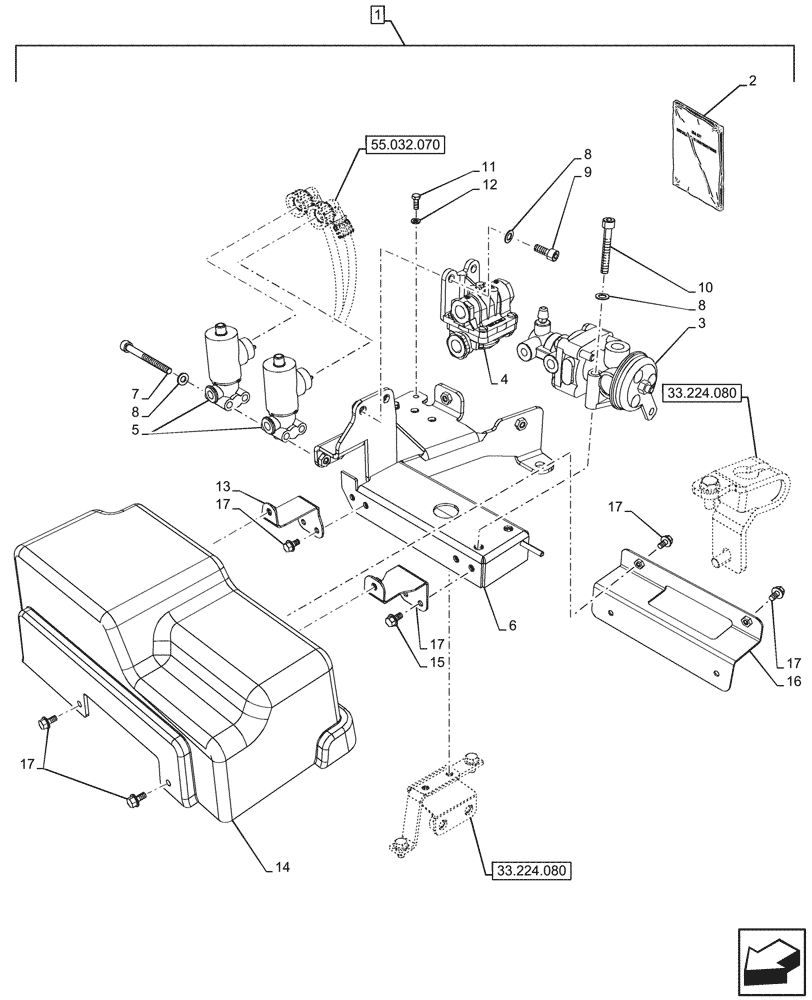

Схема запчастей Case IH OPTUM 300 CVT - (88.100.033[04]) - DIA KIT, AIR BRAKE, PNEUMATIC VALVE (88) - ACCESSORIES
33.224.080
17
12
17
2
8
16
5
11
3
1
8
7
14
17
9
10
8
15
6
17
13
4
17
55.032.070
33.224.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718264044

DIA KIT, TRACTOR

Pneumatic Air Brake Base Kit, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47855079

INSTRUCTION

1шт.

3

82030571

TRAILER BRAKE VALVE

ASY-Air Trailer Brake

1шт.

4

84157669

VALVE

Quick Release

1шт.

5

84359255

SOLENOID VALVE,1.41A, 12 VDC,

2шт.

6

47935636

BRACKET

1шт.

7

14307124

SCREW,M8 x 1.25 x 90mm, Cl 8.8

2шт.

8

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

6шт.

9

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

14302221

HEX SOC SCREW,M8 x 55mm, Cl 8.8

2шт.

11

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

12

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

13

47935649

BRACKET

RH Rear

1шт.

14

47935656

COVER

Valve Assembly

1шт.

15

47935653

BRACKET

LH Rear

1шт.

16

47935646

BRACKET

Cover Front

1шт.

17

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

10шт.
