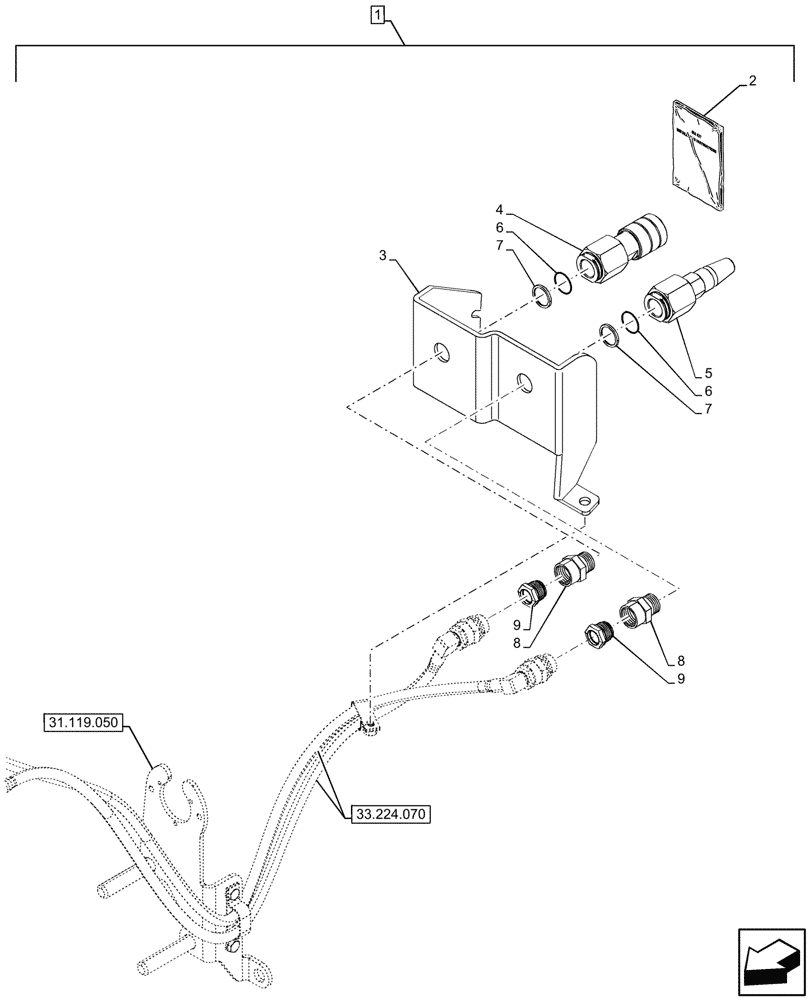

Запчасти Case IH OPTUM 300 CVT (88.100.033[03]) - DIA KIT, AIR BRAKE, COUPLING, UK (88) - ACCESSORIES

1

718267044

DIA KIT, TRACTOR

UK Pneumatic Air Brake Finishing Kit, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47855082

INSTRUCTION

1шт.

3

47774479

BRACKET

UK Couplers

1шт.

4

87679175

PUSH-PULL COUPLING

Female, Red

1шт.

5

87679176

PUSH-PULL COUPLING

Male, Yellow

1шт.

6

87679174

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

2шт.

7

87679173

BACK-UP RING,22.10mm, 25.80mm ID x 27.00mm OD x 2.50mm

2шт.

8

87679177

ADAPTER

M22

2шт.

9

82034157

ADAPTER

M22 x 1.5 to 14.6

2шт.
