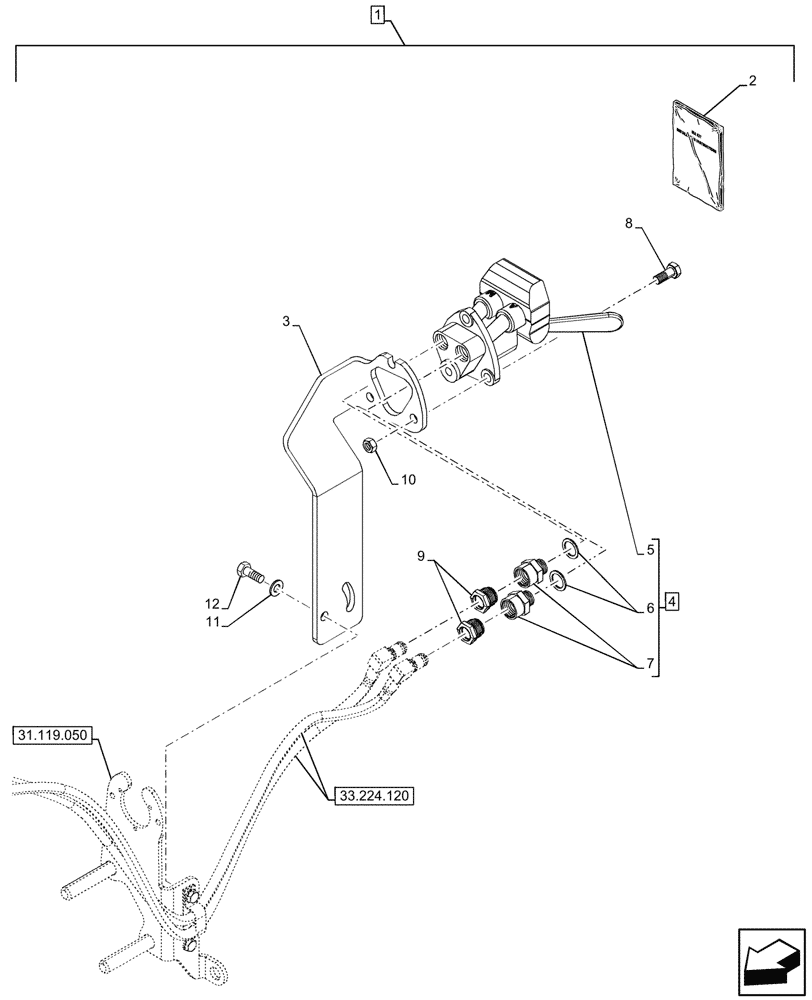

Запчасти Case IH OPTUM 300 CVT (88.100.033[01]) - DIA KIT, AIR BRAKE, COUPLING, ITALY (88) - ACCESSORIES

1

718265044

DIA KIT, TRACTOR

Italian Pneumatic Air Brake Finishing Kit, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47855080

INSTRUCTION

1шт.

3

47645224

BRACKET

Air Brake, Italian Coupler

1шт.

4

87692947

PUSH-PULL COUPLING

ASSY, Incl 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Coupling, Incl in 4

1шт.

6

87692948

WASHER,18.0mm ID x 25mm OD x 1.5mm Thk, Aluminum

2шт.

7

87692949

FITTING,M22 x 1.5 x M18 x 1.5

2шт.

8

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

9

82034157

ADAPTER

M22 x 1.5 to 14.6

2шт.

10

100016

NUT,M10 x 1.5, Cl 8

3шт.

11

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

12

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.
