Запчасти Case IH OPTUM 300 CVT (88.100.031[09]) - DIA KIT, FRONT PTO - CCW, COMPONENTS (88) - ACCESSORIES

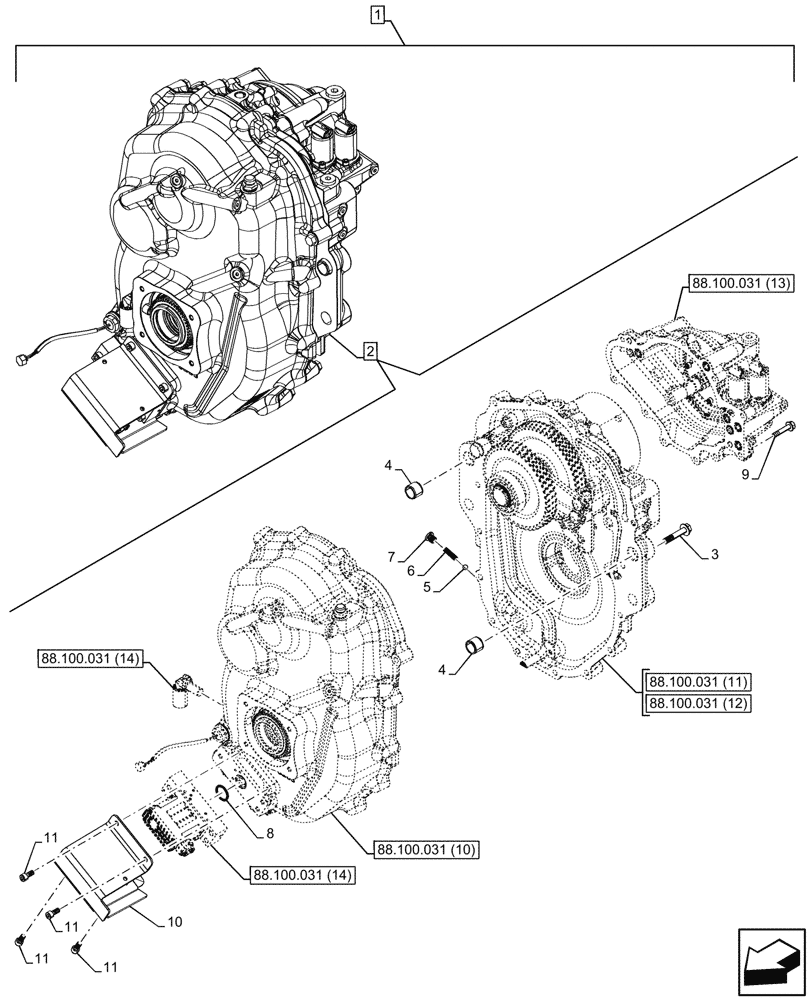

Схема запчастей Case IH OPTUM 300 CVT - (88.100.031[09]) - DIA KIT, FRONT PTO - CCW, COMPONENTS (88) - ACCESSORIES
88.100.031 (12)
11
8
4
1
11
6
3
11
9
2
11
4
10
7
5
88.100.031 (10)
88.100.031 (11)
88.100.031 (13)
88.100.031 (14)
88.100.031 (14)

Артикул

Название

Примечание

Количество

1

731035014

DIA KIT, TRACTOR

Front PTO 2 Speed CCW, Incl 2 - 11

1шт.

2

47894651

FRONT PTO ASSY

ASSY, CCW, Incl 3 - 11

1шт.

See Front PTO Components also in Figure 88.100.031 (10) (11) (12) (13) (14)

1шт.

3

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

16шт.

4

47662781

BUSHING,21mm ID x 26mm OD x 20mm L

2шт.

5

20063390

BALL,8.73mm OD

1шт.

6

4994342

SPRING,8mm OD x 30mm OAL

1шт.

7

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

8

47422966

SEAL,23.52mm ID x 1.78mm Thk

1шт.

9

16287524

FLANGE BOLT,Hex, M8 x 40mm, Cl 8.8

11шт.

10

47648444

SHIELD

1шт.

11

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 12
