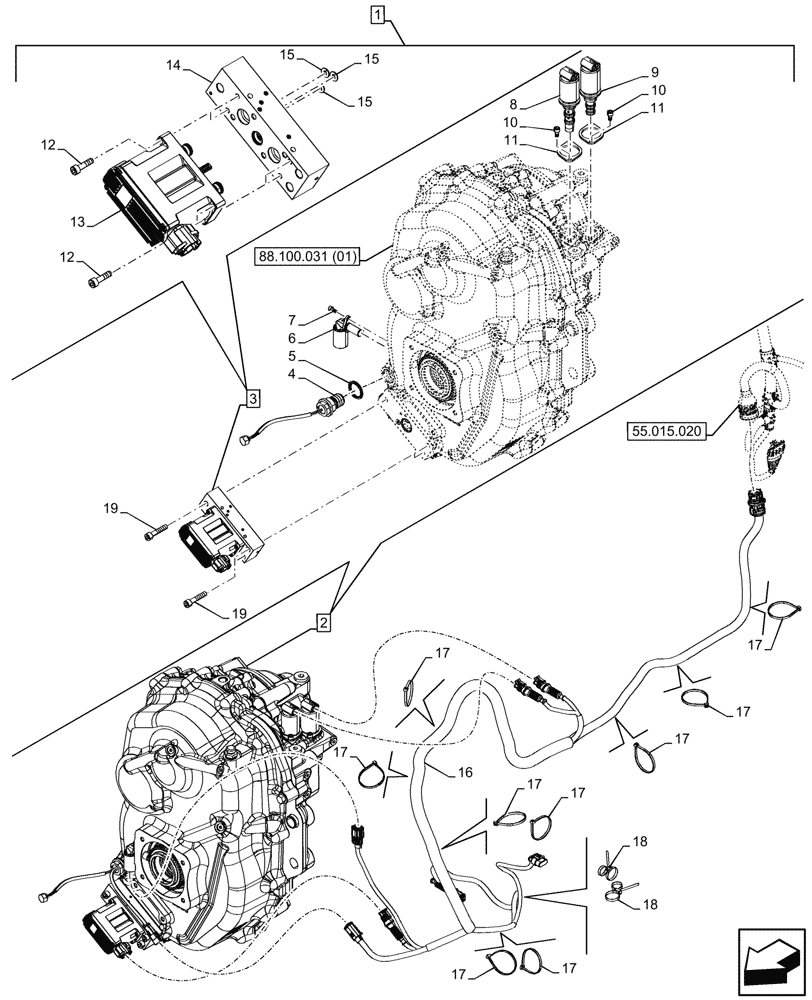

Запчасти Case IH OPTUM 300 CVT (88.100.031[07]) - DIA KIT, FRONT PTO - CW, COMPONENTS (88) - ACCESSORIES

1

731034014

DIA KIT, TRACTOR

Front PTO 2 Speed CW, Incl 2 - 19

1шт.

2

47831822

FRONT PTO ASSY

ASSY, CW, Incl 3 - 19

1шт.

See Front PTO Components also in Figure 88.100.031 (01), (02), (03), (04), (05), (06)

1шт.

3

47644017

PILOT VALVE

ASSY, Incl 12 - 15

1шт.

4

84469231

SWITCH

1шт.

5

84547261

WASHER,26.75mm ID x 35mm OD x 1.6mm Thk

1шт.

6

47557243

SENSOR

Speed Sensor

1шт.

7

14304121

HEX SOC SCREW,M5 x 12mm, Cl 8.8

1шт.

8

87739558

SOLENOID VALVE,14W

1шт.

9

84537085

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

10

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

4шт.

11

5194826

BRACKET

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

13

NSS

NOT SOLD SEPARAT

Pilot Valve, Incl in 3

1шт.

14

NSS

NOT SOLD SEPARAT

Adapter Plate, Incl in 3

1шт.

15

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

16

47915465

WIRE HARNESS

Front PTO Harness

1шт.

17

82013031

CABLE TIE,193mm L

2шт.

18

14560187

COLLAR,199mm L

9шт.

19

14306724

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.
