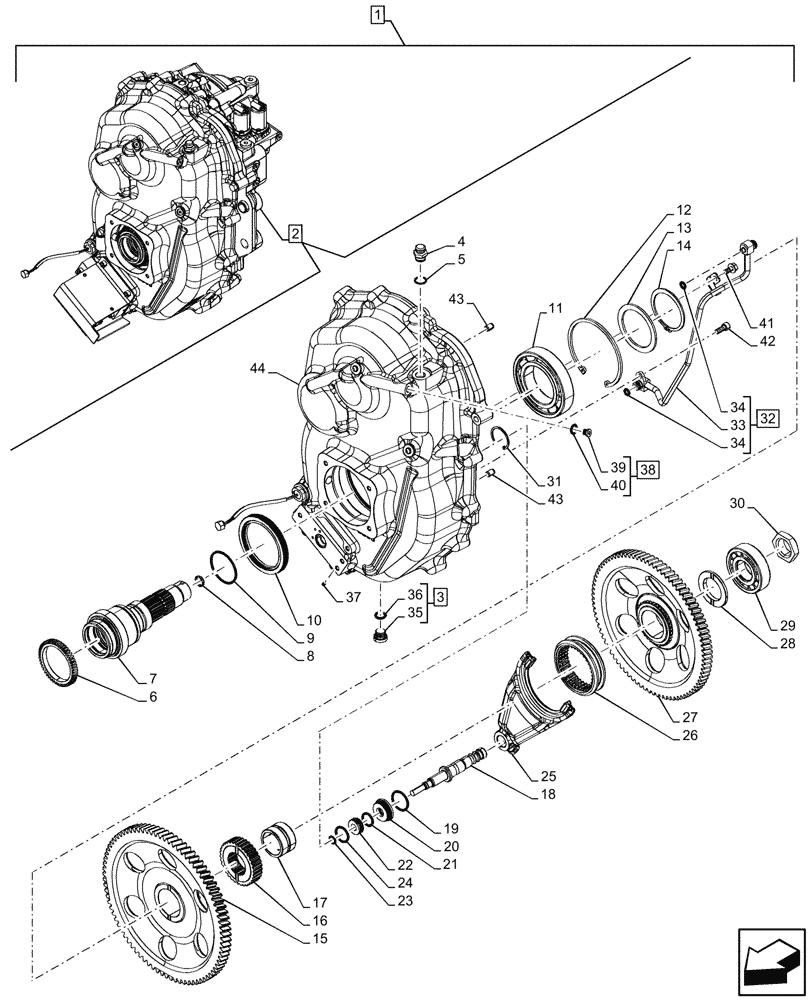

Запчасти Case IH OPTUM 300 CVT (88.100.031[03]) - DIA KIT, FRONT PTO - CW, COMPONENTS (88) - ACCESSORIES

1

731034014

DIA KIT, TRACTOR

Front PTO 2 Speed CW, Incl 2 - 44

1шт.

2

47831822

FRONT PTO ASSY

ASSY, CW Incl 3 - 44

1шт.

See Front PTO Components also in Figure 88.100.031 (01), (02), (04), (05), (06), (07)

1шт.

3

1009480

PLUG,Hex, M18 x 1.5

ASSY, Incl 35, 36

1шт.

4

87560100

BREATHER,M18 x 1.5mm

1шт.

5

10261560

OIL SEAL,M18 ID x 22mm OD x 1.5mm Thk

1шт.

6

47801888

RING,70.5mm ID x 89.9mm OD x 10mm Thk, 48T

1шт.

7

47583903

SHAFT,216.4mm L

Driven, 216.4mm

1шт.

8

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.

9

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.

10

47669807

SEAL,90mm ID x 115mm OD x 12mm Thk

1шт.

11

47609811

BALL BEARING,75mm ID x 130mm OD x 25mm W

1шт.

12

370014

SNAP RING,M130, Internal

1шт.

13

47618696

SPACER,75mm ID x 95mm OD x 3.5mm L

1шт.

14

300637

SNAP RING,M75, Ext

1шт.

15

47612169

GEAR,55T

Driven, Z 55

1шт.

16

87578128

GEAR,21T Internal / 33T External

1шт.

17

5151437

BUSHING,44.4mm ID x 55mm OD x 35mm L

1шт.

18

47583982

SHIFT RAIL,10mm ID x 30mm OD x 177.5mm L

1шт.

19

87584290

O-RING,0.671" ID x 0.81" OD x 0.139"

1шт.

20

47603251

COVER

1шт.

21

9842640

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

1шт.

22

47603253

PISTON

1шт.

23

11066173

CIRCLIP,13mm OD, PHC/ZND

1шт.

24

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

25

47583980

SHIFTER FORK,96mm ID x 140mm W x 217mm L

1шт.

26

87578126

SLEEVE,Z12

1шт.

27

47612170

GEAR,49T

Driven, Z 49

1шт.

28

5182629

ANTI-WRAP PLATE

1шт.

29

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

30

5123114

RING NUT,Hex, M36 x 1.5

1шт.

31

300645

SNAP RING,M42, Int

1шт.

32

47628350

PIPE

ASSY, Pressure, Incl 33, 34

1шт.

33

NSS

NOT SOLD SEPARAT

Pipe, Incl in 32

1шт.

34

14453181

O-RING,0.489" ID x 0.07" Width

2шт.

35

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.

36

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

37

282837A1

PLUG,5mm OD x 5.5mm L

4шт.

38

10118540

PLUG,M10 x 1 x 11, Brass

ASSY, Incl 39, 40

4шт.

39

NSS

NOT SOLD SEPARAT

Plug, Incl in 38

1шт.

40

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

41

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

42

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

43

10839710

DOWEL,M10 x 15.00mm

2шт.

44

47557623

HOUSING

Front

1шт.
