(88.100.010[02]) - DIA KIT, LOCKABLE FUEL CAP, DEF TANK, CAP

Запчасти Case IH OPTUM 300 CVT (88.100.010[02]) - DIA KIT, LOCKABLE FUEL CAP, DEF TANK, CAP (88) - ACCESSORIES

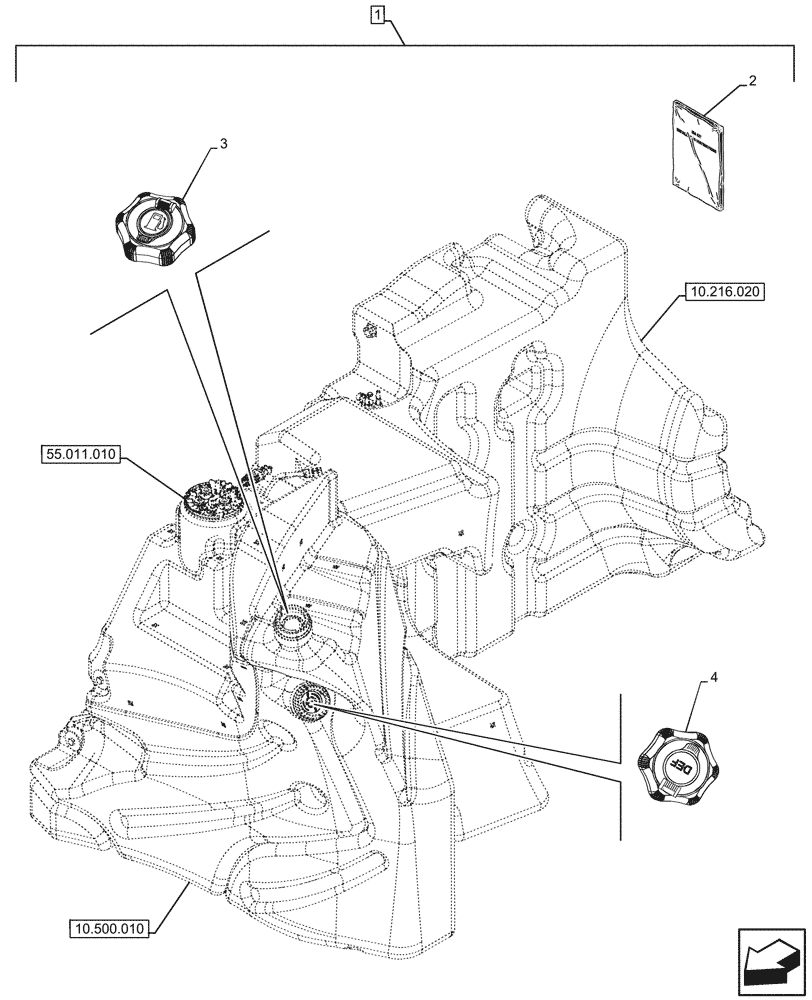

Схема запчастей Case IH OPTUM 300 CVT - (88.100.010[02]) - DIA KIT, LOCKABLE FUEL CAP, DEF TANK, CAP (88) - ACCESSORIES
10.216.020
1
3
2
4
10.500.010
55.011.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718221024

DIA KIT, TRACTOR

Lockable DEF and Fuel Cap, Incl 2 - 4

1шт.

2

47867349

INSTRUCTION

1шт.

3

47916748

FILLER CAP,Male, Vented_Lockable

Fuel, Lockable

1шт.

4

47604632

FILLER CAP,Male, Vented_Lockable

DEF, Lockable

1шт.
