Запчасти Case IH OPTUM 300 CVT (05.100.043[01]) - MAINTENANCE PARTS - FUSES, RELAY (05) - SERVICE & MAINTENANCE

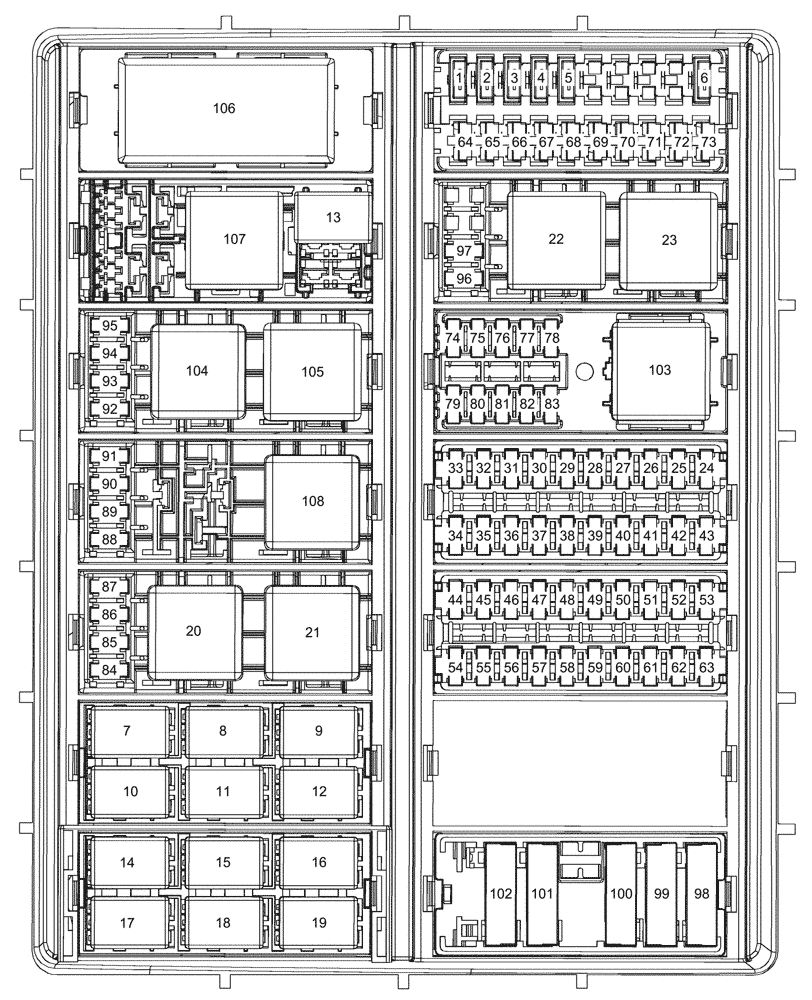

Схема запчастей Case IH OPTUM 300 CVT - (05.100.043[01]) - MAINTENANCE PARTS - FUSES, RELAY (05) - SERVICE & MAINTENANCE
21
13
108
63
7
82
60
16
69
83
48
5
10
58
25
102
12
107
39
51
64
46
14
23
26
106
31
43
73
76
72
59
81
67
66
29
24
45
50
28
2
56
77
104
101
75
74
87
37
53
90
55
65
88
33
34
4
9
6
80
11
79
68
57
15
95
85
8
35
1
62
42
17
61
41
47
89
3
93
20
49
40
70
98
100
96
30
52
22
103
44
32
71
91
97
99
38
86
54
27
18
105
92
84
19
94
78
36

Артикул

Название

Примечание

Количество

1

87736207

DIODE,1A, Black

V-001, Follow me home diode

1шт.

2

87736207

DIODE,1A, Black

V-002, Follow me home diode

1шт.

3

87736207

DIODE,1A, Black

V-003, Follow me home diode

1шт.

4

87736207

DIODE,1A, Black

V-004, Headlight diode

1шт.

5

87736207

DIODE,1A, Black

V-005, Headlight diode

1шт.

6

87736207

DIODE,1A, Black

V-010, Headlight diode

1шт.

7

84543528

RELAY,12V, 20A, Micro

K-007, Low beam relay – Headlights

1шт.

8

84543528

RELAY,12V, 20A, Micro

K-008, Brake light relay

1шт.

9

84543528

RELAY,12V, 20A, Micro

K-009, Main beam relay – Headlights

1шт.

10

84543528

RELAY,12V, 20A, Micro

K-010, Hydraulic trailer brake relay

1шт.

11

84543528

RELAY,12V, 20A, Micro

K-011, Trailer brake – Parking brake relay

1шт.

12

84543528

RELAY,12V, 20A, Micro

K-012, Pneumatic trailer brake relay

1шт.

13

84543528

RELAY,12V, 20A, Micro

K-013, Position light relay

1шт.

14

84543528

RELAY,12V, 20A, Micro

K-015, Engine hood work lights – Relay

1шт.

15

84543528

RELAY,12V, 20A, Micro

K-016, Work light C-pillar – Relay

1шт.

16

84543528

RELAY,12V, 20A, Micro

K-017, Follow me home relay

1шт.

17

84543528

RELAY,12V, 20A, Micro

K-018, Battery isolator relay

1шт.

18

84543528

RELAY,12V, 20A, Micro

K-019, Air-conditioning compressor relay

1шт.

19

84543528

RELAY,12V, 20A, Micro

K-020, Remote valve relay

1шт.

20

84543666

RELAY,12V, 40A, Mini

K-033, Front work light relay

1шт.

21

84543666

RELAY,12V, 40A, Mini

K-034, Rear work light relay

1шт.

22

82013124

RELAY,12V, 30A

K-044, Heated front window relay

1шт.

23

82030798

RELAY,12V, 70A

K-045, Heated rear window relay

1шт.

24

84127703

FUSE,15A, Mini, Blue

F-001, Low beam headlights, Follow me home

1шт.

25

84127703

FUSE,15A, Mini, Blue

F-002, High beam headlights

1шт.

26

84127702

FUSE,10A, Mini, Red

F-003, Air-conditioning compressor – Magnetic clutch

1шт.

27

84153830

FUSE,5A, Mini, Beige

F-004, Interior light & step light

1шт.

28

84127704

FUSE,20A, Mini, Yellow

F-005, Flasher unit

1шт.

29

84127702

FUSE,10A, Mini, Red

F-006, Radio, Work light switch panel

1шт.

30

84127704

FUSE,20A, Mini, Yellow

F-007, High beam headlights, Hazard warning light, Horn

1шт.

31

84153830

FUSE,5A, Mini, Beige

F-008, Ignition switch

1шт.

32

84127703

FUSE,15A, Mini, Blue

F-009, Cigarette lighter (battery power supply)

1шт.

33

84127705

FUSE,25A, Mini, White

F-010, Power socket 30 A – Cab inside (switched battery power supply)

1шт.

34

84127702

FUSE,10A, Mini, Red

F-011, Power supply pin socket

1шт.

35

84127702

FUSE,10A, Mini, Red

F-012, Mirror heater

1шт.

36

84127702

FUSE,10A, Mini, Red

F-013, Rotating beacon

1шт.

37

84127703

FUSE,15A, Mini, Blue

F-014, Not used

1шт.

38

84127703

FUSE,15A, Mini, Blue

F-015, Not used

1шт.

39

84127703

FUSE,15A, Mini, Blue

F-016, Not used

1шт.

40

84127708

FUSE,30A, Mini, Green

F-017, Engine hood work lights

1шт.

41

84152583

FUSE,7.5A, Mini, Brown

F-018, Rear work lights

1шт.

42

84127703

FUSE,15A, Mini, Blue

F-019, Front work lights

1шт.

43

84152583

FUSE,7.5A, Mini, Brown

F-020, Work light C-pillar

1шт.

44

84127703

FUSE,15A, Mini, Blue

F-021, Flasher unit, Main light switch, Signature light or Grab rail headlight switch

1шт.

45

84127703

FUSE,15A, Mini, Blue

F-022, Brake light

1шт.

46

84153830

FUSE,5A, Mini, Beige

F-023, Instrument cluster

1шт.

47

84127702

FUSE,10A, Mini, Red

F-024, Radio

1шт.

48

84153830

FUSE,5A, Mini, Beige

F-025, ABS, Boost pressure switch, Ignition relay 3

1шт.

49

84153830

FUSE,5A, Mini, Beige

F-026, Radar sensor, Implement signal socket (ISO 11786)

1шт.

50

84127703

FUSE,15A, Mini, Blue

F-027, Power socket 40 A (cab outside)

1шт.

51

84127703

FUSE,15A, Mini, Blue

F-028, Power socket 30 A (cab inside)

1шт.

52

84127703

FUSE,15A, Mini, Blue

F-029, Power socket 40 A and implement socket (front)

1шт.

53

84127704

FUSE,20A, Mini, Yellow

F-030, Power socket 8 A (cab inside)

1шт.

54

84127703

FUSE,15A, Mini, Blue

F-031, Seat, Armrest position adjustment

1шт.

55

84127703

FUSE,15A, Mini, Blue

F-032, Front window wiper motor

1шт.

56

84127702

FUSE,10A, Mini, Red

F-033, Rear window wiper motor, Wiper/Washer system (front and rear)

1шт.

57

84153830

FUSE,5A, Mini, Beige

F-034, Brake light

1шт.

58

84152583

FUSE,7.5A, Mini, Brown

F-035, Hydraulic trailer brake relay, Trailer brake pressure switch, Exhaust brake switch

1шт.

59

84153830

FUSE,5A, Mini, Beige

F-036, Power Take-Off (PTO) (front and rear)

1шт.

60

84153830

FUSE,5A, Mini, Beige

F-037, Not used

1шт.

61

84127702

FUSE,10A, Mini, Red

F-038, Autoguidance relay – Crank isolate, ISO bus switch

1шт.

62

84127702

FUSE,10A, Mini, Red

F-039, Electro Hydraulic Remote (EHR) valves

1шт.

63

84152583

FUSE,7.5A, Mini, Brown

F-040, Armrest control unit, Foot throttle position sensor, Hydraulic master switch, Shuttle lever, Color display (on bracket)

1шт.

64

84153830

FUSE,5A, Mini, Beige

F-051, Universal controller

1шт.

65

84127702

FUSE,10A, Mini, Red

F-052, Universal controller

1шт.

66

84127704

FUSE,20A, Mini, Yellow

F-053, Universal controller

1шт.

67

84152583

FUSE,7.5A, Mini, Brown

F-054, Universal controller

1шт.

68

84127702

FUSE,10A, Mini, Red

F-055, Universal controller

1шт.

69

84127702

FUSE,10A, Mini, Red

F-056, Universal controller

1шт.

70

84153830

FUSE,5A, Mini, Beige

F-057, Universal controller

1шт.

71

84153828

FUSE,2A, Mini, Gray

F-058, Tire Pressure Monitoring System (TPMS) module

1шт.

72

84127702

FUSE,10A, Mini, Red

F-059, Heater (pneumatic trailer brake – air dryer), Pneumatic trailer brake relay, Trailer socket (ABS)

1шт.

73

84153830

FUSE,5A, Mini, Beige

F-060, Starting system

1шт.

74

84127702

FUSE,10A, Mini, Red

F-061, Diagnostic socket (CAN bus 2 and 3)

1шт.

75

84127702

FUSE,10A, Mini, Red

F-062, Battery isolator , Backup alarm buzzer and backup light – Relay

1шт.

76

84127702

FUSE,10A, Mini, Red

F-063, Diagnostic socket (CAN bus 1 and 4)

1шт.

77

84153830

FUSE,5A, Mini, Beige

F-064, Instrument cluster

1шт.

78

84127702

FUSE,10A, Mini, Red

F-065, Universal controller, Armrest control unit, Color display (on bracket)

1шт.

79

84153830

FUSE,5A, Mini, Beige

F-066, Universal controller – Switched battery power supply

1шт.

80

84127702

FUSE,10A, Mini, Red

F-067, Universal controller – Switched battery power supply

1шт.

81

84127702

FUSE,10A, Mini, Red

F-068, Universal controller – Switched battery power supply

1шт.

82

84153830

FUSE,5A, Mini, Beige

F-069, Universal controller – Switched battery power supply

1шт.

83

84127702

FUSE,10A, Mini, Red

F-070, Trailer brake – Parking brake, Transmission sensors

1шт.

84

84127704

FUSE,20A, Mini, Yellow

F-077, Rear work lights (Roof)

1шт.

85

84127704

FUSE,20A, Mini, Yellow

F-078, Front work lights (Roof)

1шт.

86

84153830

FUSE,5A, Mini, Beige

F-079, Telematic module

1шт.

87

84153830

FUSE,5A, Mini, Beige

F-080, Telematic module

1шт.

88

84152583

FUSE,7.5A, Mini, Brown

F-081, Position light right-hand – Radio, Console light, Trailer socket rear and front (7-Pin)

1шт.

89

84152583

FUSE,7.5A, Mini, Brown

F-082, Position light left-hand – License plate light, Trailer socket rear and front (7-Pin)

1шт.

90

84153830

FUSE,5A, Mini, Beige

F-083, Backlighting, Instrument cluster and controls

1шт.

91

84127705

FUSE,25A, Mini, White

F-084, Trailer socket (ABS)

1шт.

92

84153830

FUSE,5A, Mini, Beige

F-085, Air-conditioning system

1шт.

93

84152583

FUSE,7.5A, Mini, Brown

F-086, Mirror heater

1шт.

94

84127705

FUSE,25A, Mini, White

F-087, Trailer socket rear (7-Pin)

1шт.

95

84127705

FUSE,25A, Mini, White

F-088, Blower motor

1шт.

96

84127708

FUSE,30A, Mini, Green

F-101, Heated front window (permanent battery power supply)

1шт.

97

84127704

FUSE,20A, Mini, Yellow

F-102, Heated rear window (permanent battery power supply)

1шт.

98

84127814

FUSE,80A, Maxival, Natural

MF1, Permanent battery power supply

1шт.

99

84127814

FUSE,80A, Maxival, Natural

MF2, Permanent battery power supply

1шт.

100

84127814

FUSE,80A, Maxival, Natural

MF3, Permanent battery power supply (ignition generic)

1шт.

101

84127814

FUSE,80A, Maxival, Natural

MF4, Permanent battery power supply (ignition, lights)

1шт.

102

82012388

FUSE,30A, Maxival, Green

MF5, Permanent battery power supply (Power socket 40 A – Cab outside)

1шт.

103

84539290

RELAY,12V, 50A

K-004, Ignition relay 2 (switched battery power supply)

1шт.

104

84543666

RELAY,12V, 40A, Mini

K-005, Air-conditioning

1шт.

105

84543666

RELAY,12V, 40A, Mini

K-006, Mirror heater timing relay

1шт.

106

87304226

RELAY,12V, Combined, Black

K-001/K-002, Wiper relay (front and rear)

1шт.

107

84539290

RELAY,12V, 50A

K-003, Ignition relay 1 (switched battery power supply)

1шт.

108

84543666

RELAY,12V, 40A, Mini

K-032, Universal controller (UCM) – Afterrun power supply relay

1шт.

Выбрано товаров: 108
