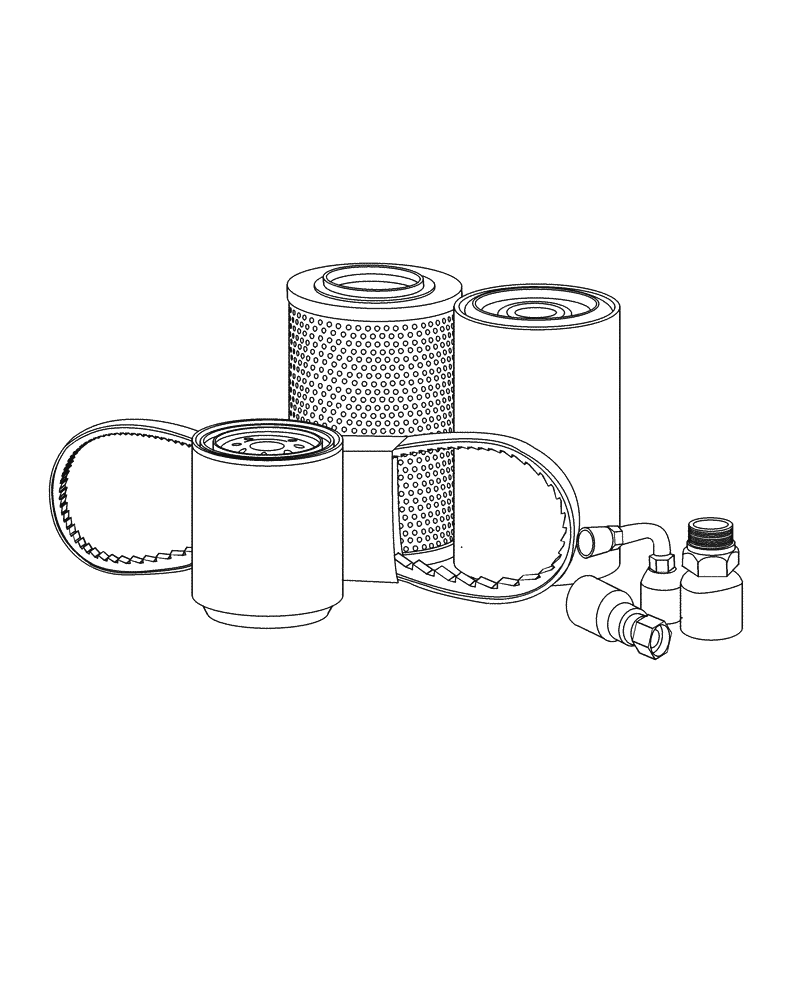

Запчасти Case IH OPTUM 300 CVT (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

1

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

2

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Main, on Engine

1шт.

3

47509565

FILTER

Fuel, Water Separator, on Engine

1шт.

4

42568767

FILTER

on Engine

1шт.

5

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Main, on Air Cleaner

1шт.

6

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Safety, on Air Cleaner

1шт.

7

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

2шт.

8

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

9

47715391

HYDRAULIC OIL FILTER,148mm OD x 268mm L

Suction 32 Micron

1шт.

10

87588814

HYDRAULIC OIL FILTER,151mm L

on Vane Pump, 151mm

1шт.

11

47815457

HYDRAULIC OIL FILTER,127mm OD x 134mm L

Lubrication

1шт.

12

84417139

ELEMENT,267.5mm L, 11 Micron

Charge Pump

1шт.

13

47531260

BELT,35.5mm W x 1696mm L, 10 Ribs

Main Drive

1шт.

14

47513121

BELT,936.07mm L, 4 Ribs

A/C

1шт.

15

47560879

BELT,18mm W x 1270mm L, 5 Ribs

A/C, W/ Air Brakes or ABS

1шт.
