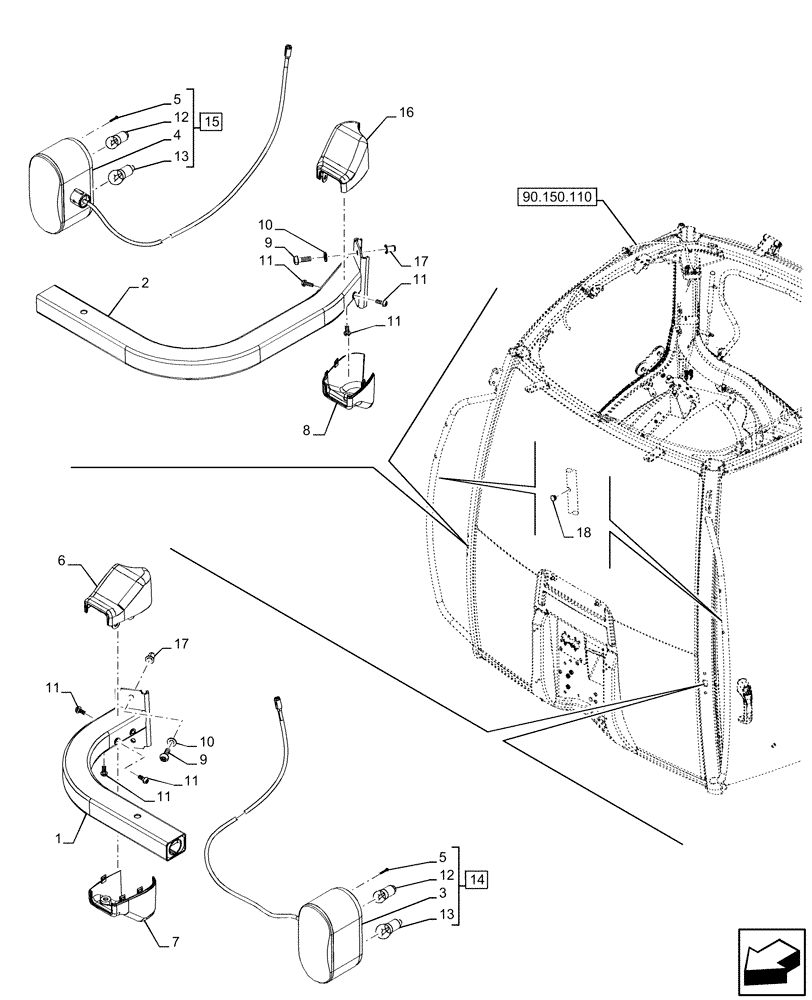

Запчасти Case IH OPTUM 300 CVT (55.404.050) - VAR - 391364, 758686, 758687, 758688, 758689, 758690 - CAB, FRONT, INDICATOR LIGHT, NA (55) - ELECTRICAL SYSTEMS

1

47754439

SUPPORT

LH

1шт.

2

47754441

SUPPORT

RH

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 14

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 15

1шт.

5

15644401

SELF-TAP SCREW,Pan Hd, M8 x 25mm

2шт.

6

47779621

COVER

Top, LH

1шт.

7

47779622

COVER

Bottom, LH

1шт.

8

47779624

COVER

Bottom, RH

1шт.

9

84188431

SCREW,Pan HD, M8 x 25mm, Cl 8.8

4шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

11

84187812

SCREW,Torx, Pan HD, M6 x 16mm, Cl 4.8

8шт.

12

14148090

BULB,PY21W, 12V, 21W

2шт.

13

10857790

BULB,R10W, 12V, 5W

2шт.

14

47721717

LAMP,12V, 5W

ASSY, Incl 3, 5, 12 (Qty 1), 13 (Qty 1)

1шт.

15

47721718

LAMP,12V, 5W

ASSY, Incl 4, 5, 12 (Qty 1), 13 (Qty 1)

1шт.

16

47779623

COVER

Top, RH

1шт.

17

15629111

RIVET,Flat, M8 OD x 17.5mm L

4шт.

18

82037605

PLUG,11.5mm ID

6шт.
