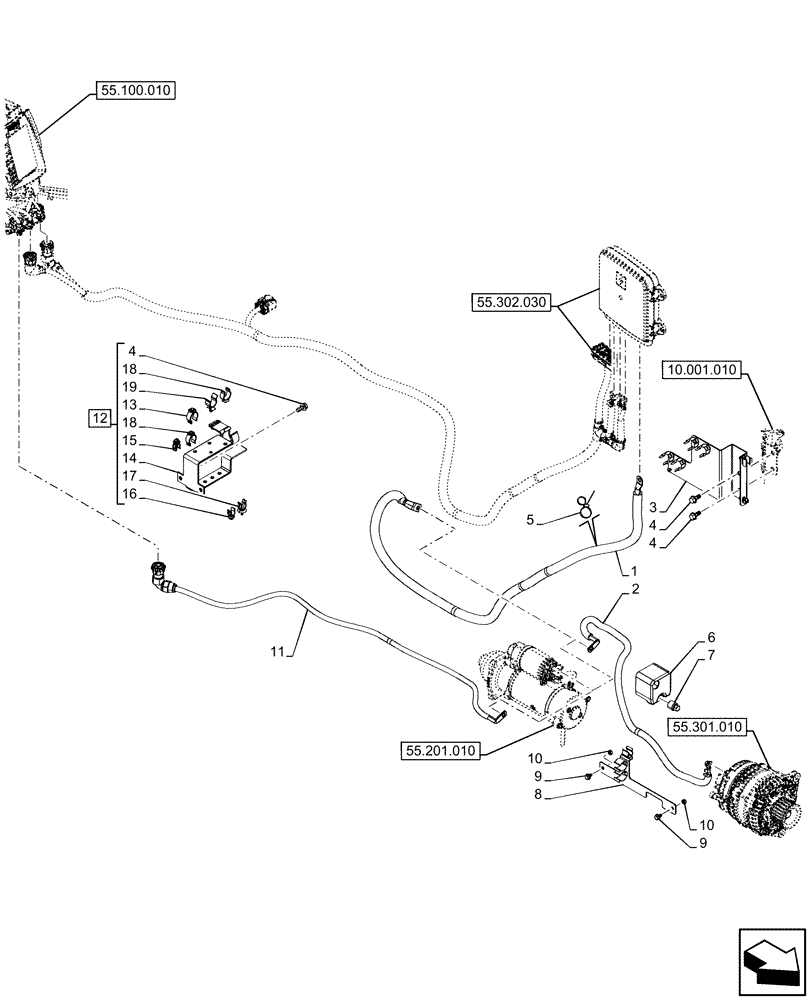

Запчасти Case IH OPTUM 300 CVT (55.302.040) - VAR - 391130, 758000, 759041 - POWER UNIT, HARNESS (55) - ELECTRICAL SYSTEMS

1

47695357

ELECTRIC CABLE

PDU to Starter Motor

1шт.

2

47738859

WIRE HARNESS

Alternator Power Supply

1шт.

3

47931563

BRACKET

PDU Harness

1шт.

4

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

82013031

CABLE TIE,193mm L

1шт.

6

87309612

COVER

1шт.

7

5171012

NUT,M10

1шт.

8

47912231

BRACKET

PDU and Isobus Harness

1шт.

9

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

2шт.

10

15896211

NUT,M6, Cl 8

2шт.

11

47732382

WIRE HARNESS

PDU Ground

1шт.

12

47881038

BRACKET

ASSY, Power and PDU Harness, Incl 13 - 19

1шт.

13

47430298

CLIP,14.7mm H, 30mm L, 7mm Thk

1шт.

14

NSS

NOT SOLD SEPARAT

Bracket, Incl in 12

1шт.

15

47556032

CLAMP,Top Entry, 12mm ID

3шт.

16

47556025

CLAMP,8mm D x 1.6-5.5mm Thk

1шт.

17

47570641

CLIP,0.7-3.5 Thk

1шт.

18

47557771

MOUNT

2шт.

19

47564504

CLAMP,Top Entry, 20mm ID, Black

1шт.
