(55.049.010) - VAR - 758772, 758773, 759307, 759308 - FRONT PTO, ELECTRONIC CONTROLS, COMPONENTS

Запчасти Case IH OPTUM 300 CVT (55.049.010) - VAR - 758772, 758773, 759307, 759308 - FRONT PTO, ELECTRONIC CONTROLS, COMPONENTS (55) - ELECTRICAL SYSTEMS

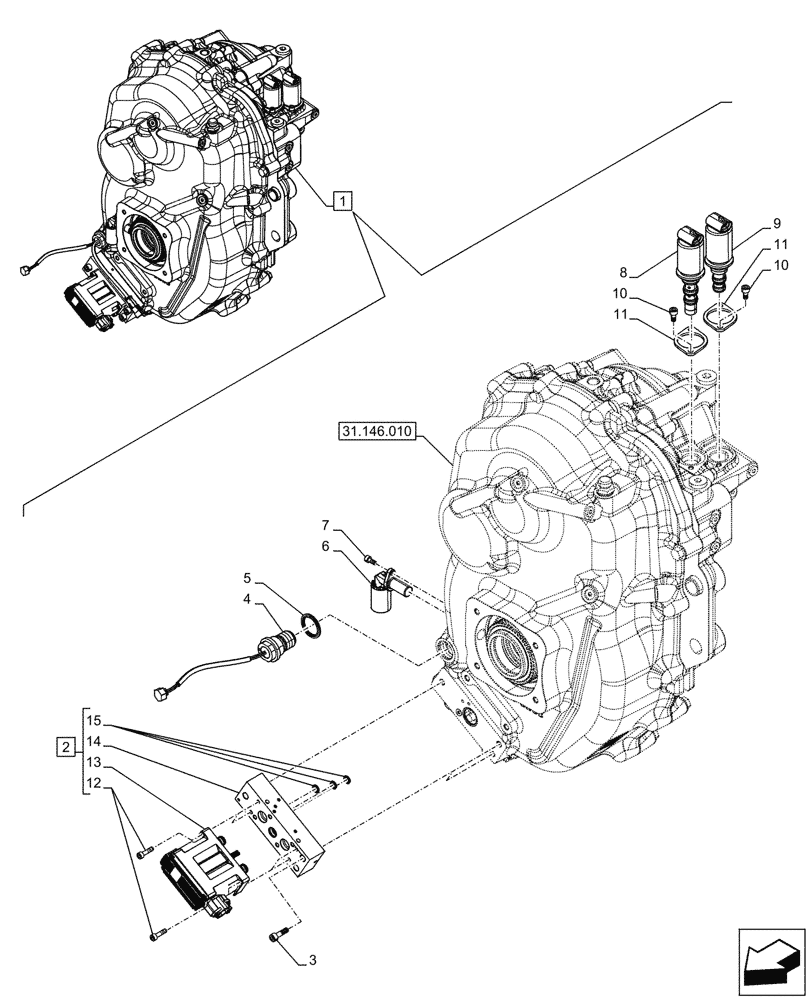

Схема запчастей Case IH OPTUM 300 CVT - (55.049.010) - VAR - 758772, 758773, 759307, 759308 - FRONT PTO, ELECTRONIC CONTROLS, COMPONENTS (55) - ELECTRICAL SYSTEMS
31.146.010
12
11
1
6
7
10
8
14
13
11
5
4
9
10
15
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47894651

FRONT PTO ASSY

CCW, Incl 2 - 15

1шт.

See Front PTO Components also in Figure 31.146.020, 31.146.030, 31.146.040, 31.146.050, 31.146.060

1шт.

2

47896831

PILOT VALVE

ASSY, Incl 12 - 15

1шт.

3

14306724

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

4

84469231

SWITCH

1шт.

5

84547261

WASHER,26.75mm ID x 35mm OD x 1.6mm Thk

1шт.

6

47557243

SENSOR

Speed Sensor

1шт.

7

14304121

HEX SOC SCREW,M5 x 12mm, Cl 8.8

1шт.

8

87739558

SOLENOID VALVE,14W

1шт.

9

84537085

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

10

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

4шт.

11

5194826

BRACKET

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

13

47749063

PILOT VALVE

1шт.

14

NSS

NOT SOLD SEPARAT

Adapter Plate, Incl in 2

1шт.

15

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.
