(55.031.010) - VAR - 758792 - ELECTRICAL SYSTEMS, PARKING LOCK

Запчасти Case IH OPTUM 300 CVT (55.031.010) - VAR - 758792 - ELECTRICAL SYSTEMS, PARKING LOCK (55) - ELECTRICAL SYSTEMS

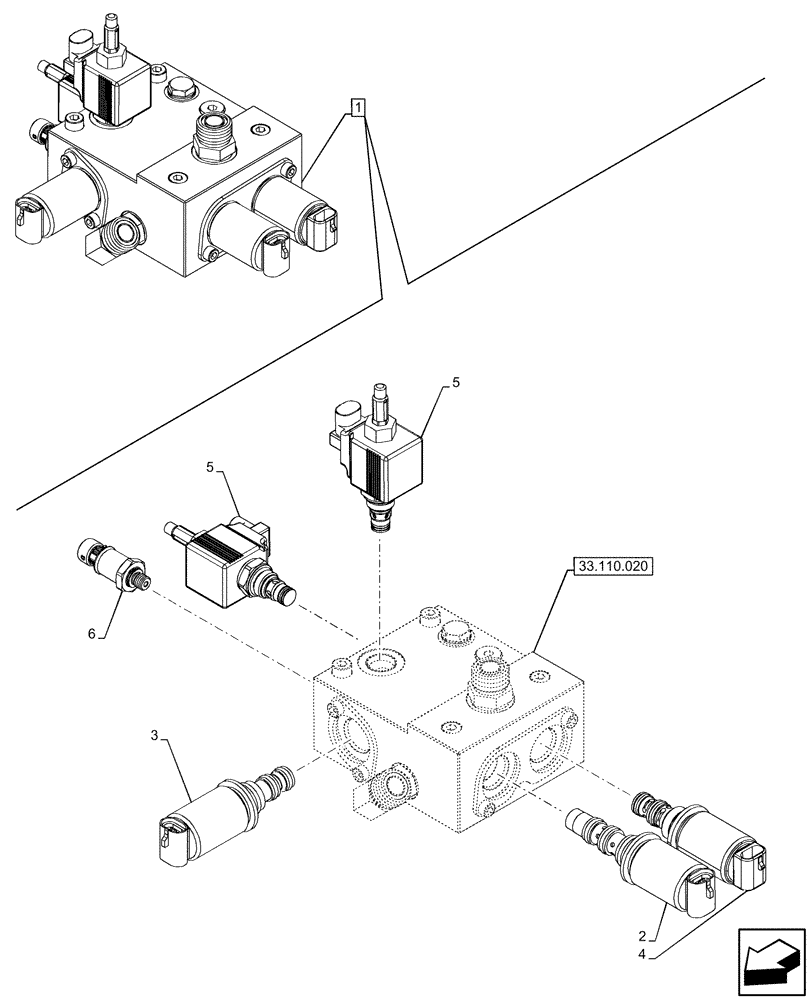

Схема запчастей Case IH OPTUM 300 CVT - (55.031.010) - VAR - 758792 - ELECTRICAL SYSTEMS, PARKING LOCK (55) - ELECTRICAL SYSTEMS
33.110.020
6
4
2
3
1
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47858110

HYDRAULIC MANIFOLD

ASSY, Incl 2 - 6

1шт.

See also Hydraulic Manifold Parking Brake in Figure 33.110.020

1шт.

2

87739558

SOLENOID VALVE,14W

1шт.

3

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

4

84408149

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

5

47882438

SOLENOID,M8x1.25, 12 VDC, 6.85 Ohm, 21W, 240 bar

2шт.

6

84407725

PRESSURE SWITCH

1шт.
