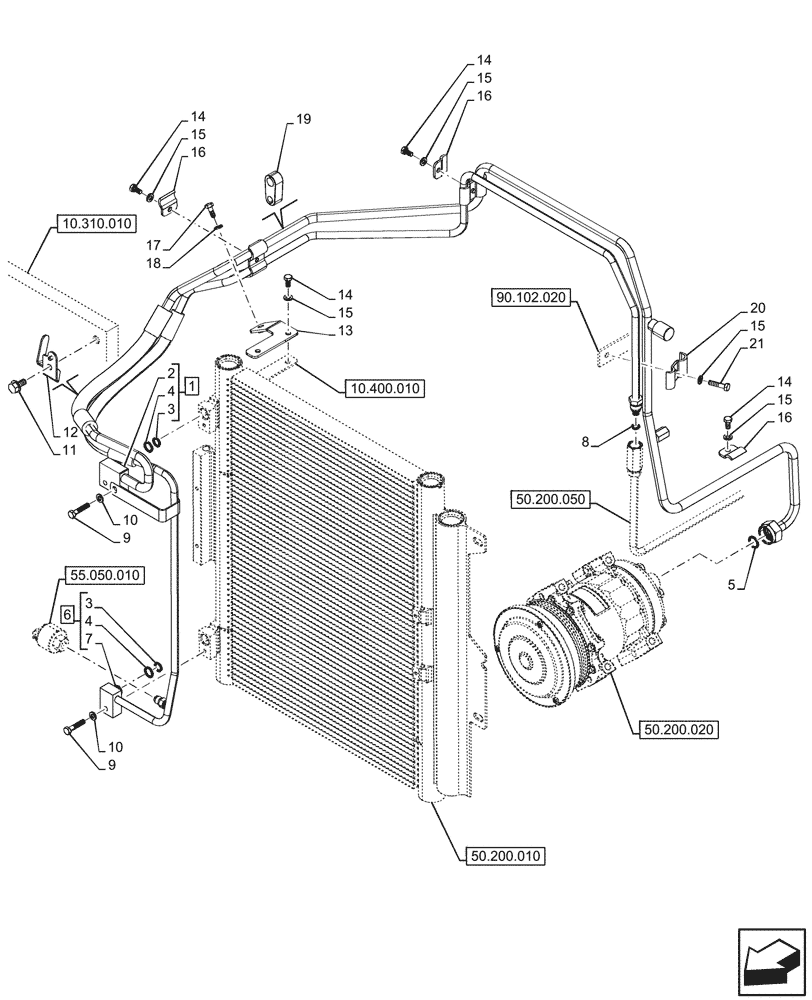

Запчасти Case IH OPTUM 300 CVT (50.200.030) - VAR - 391190, 758000, 759041 - AIR CONDITIONING, LINE (50) - CAB CLIMATE CONTROL

1

47733231

PIPE

ASSY, Comp/Cond, CVT, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

14450683

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

10319183

O-RING,13.1mm ID x 1.6mm Width

1шт.

5

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

6

47733221

PIPE

ASSY, Air Conditioning, Incl 3, 4, 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Tube, Incl in 6

1шт.

8

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

9

120101

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

3шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

3шт.

11

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

12

47901259

BRACKET

1шт.

13

47804200

BRACKET

1шт.

14

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

5шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

16

47796882

BRACKET

3шт.

17

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

18

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

19

47796895

BRACKET

1шт.

20

47796889

BRACKET

1шт.

21

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.
