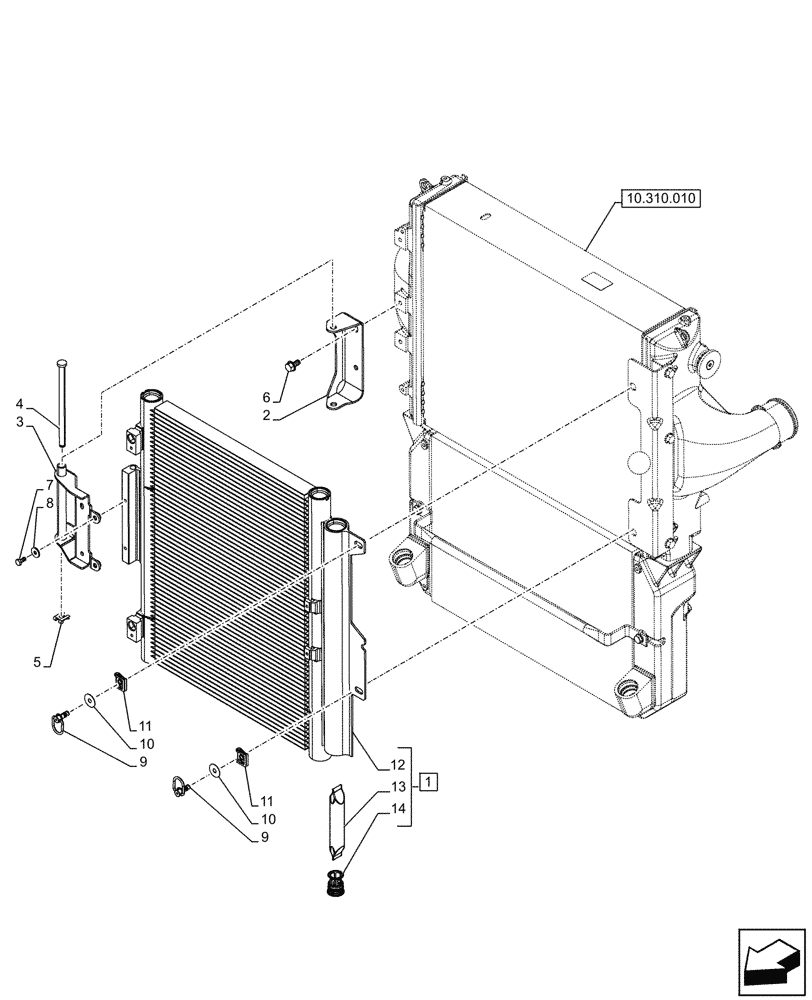

Запчасти Case IH OPTUM 300 CVT (50.200.010) - VAR - 391190, 758000, 759041 - AIR CONDITIONING, CONDENSER (50) - CAB CLIMATE CONTROL

1

47817709

CONDENSER

ASSY, Incl 12 - 14

1шт.

2

47733005

BRACKET

1шт.

3

47787312

BRACKET

1шт.

4

47733147

PIN,16mm OD x 172mm L

1шт.

5

11064171

SPRING CLIP,M10 x 8

1шт.

6

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

7

10902134

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

9

47641413

STUD,Fast Turn 8mm

2шт.

10

47688400

WASHER,Retainer; 7.3mm ID x 24.5mm OD x 1.0mm Thk, Plastic, Black

2шт.

11

47641415

CLIP,Size 8

2шт.

12

NSS

NOT SOLD SEPARAT

Condenser, Incl in 1

1шт.

13

47580889

RECEIVER-DRYER

1шт.

14

47580879

FILTER

1шт.
