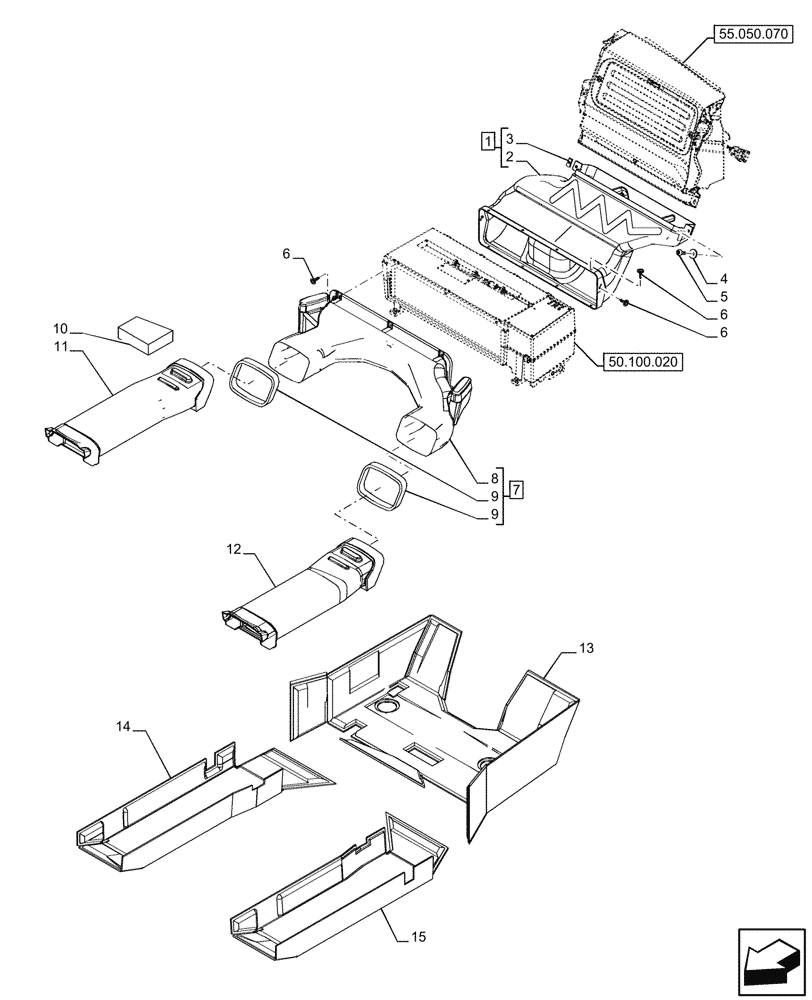

Запчасти Case IH OPTUM 300 CVT (50.104.010) - VAR - 758783, 758784, 758785, 758786, 758787, 758788, 758789, 758790, 758791, 759433 - AIR CONDITIONER, AIR DUCT (50) - CAB CLIMATE CONTROL

1

87614773

AIR DUCT

ASSY, Blower, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Air Duct, Incl in 1

1шт.

3

87567755

SPRING NUT,M5

2шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

5

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

2шт.

6

82023989

CAPTIVE WASHER SCREW,Cross Pan Hd, #8 - 18 x 0.75", Type AB Thd Forming Pt

13шт.

7

87311195

AIR DUCT

ASSY, Module Outlet, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Air Duct, Incl in 7

1шт.

9

82034490

SEAL

2шт.

10

87516780

FOAM

Rear Mat Support

1шт.

11

87301551

DUCT

Front, RH

1шт.

12

87301550

DUCT

Front, LH

1шт.

13

87661585

INSULATOR

Rear Floor

1шт.

14

87661587

INSULATOR

Front Floor, RH

1шт.

15

87661589

INSULATOR

Front Floor, LH

1шт.
