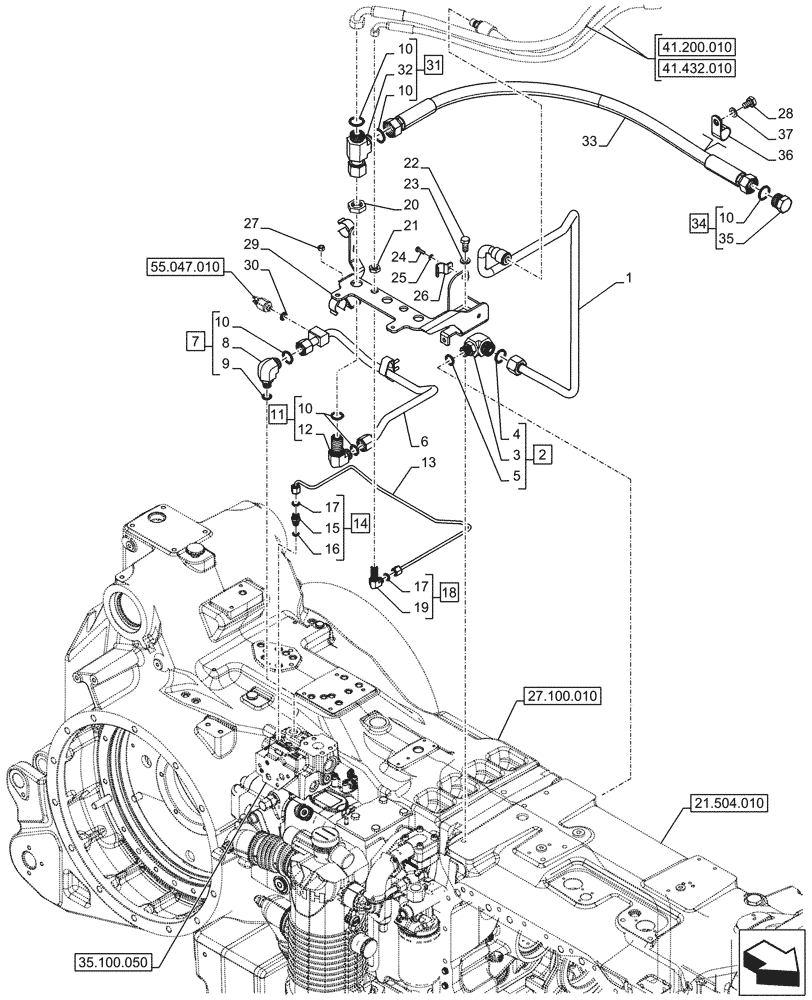

Запчасти Case IH OPTUM 300 CVT (41.432.030) - VAR - 391138, 758022, 758870, 759053 - AUTOGUIDANCE, LINE (41) - STEERING

1

47717685

PIPE

from Steering Motor to Rear Transmission Housing

1шт.

2

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

47717683

PIPE

from Hydraulyc Pump to Steering Motor

1шт.

7

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 8, 9, 10 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

11

87028944

ELBOW,90 Degree, 1"-14 ORFS, Bulkhead

ASSY, Incl 10 (Qty 2), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

13

47717681

PIPE

from Hydraulyc Pump to Steering Motor

1шт.

14

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 15, 16, 17 (Qty 1)

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

16

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

17

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

18

84326219

90 ELBOW,9/16"-18 ORFS

ASSY, Incl 17 (Qty 1), 19

1шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 18

1шт.

20

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

21

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

22

86637974

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

23

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

24

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

25

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

26

5193286

BRACKET

1шт.

27

86508868

SPARE PART

Nut M8 x 1.25, CI 10

1шт.

28

11103021

BOLT,Hex, M10 x 18mm, Cl 8.8, Full Thd

1шт.

29

47877971

BRACKET

, Years: -09-FEB-16

1шт.

29

47930593

BRACKET

, Start Year: 10-FEB-16

1шт.

30

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

31

84989850

3 WAY CONNECTION

ASSY, Incl 10 (Qty 2), 32

1шт.

32

NSS

NOT SOLD SEPARAT

Tee, Incl in 31

1шт.

33

47908618

HOSE,16mm ID x 810mm L

16mm ID x 810mm L, ASSY, Steering Attenuator

1шт.

34

9847692

PLUG,M14 x 1 x 26mm L

ASSY, Incl 10 (Qty 1), 35

1шт.

35

NSS

NOT SOLD SEPARAT

Plug, Incl in 34

1шт.

36

86639000

CLAMP,23.8mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

37

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.
