(41.432.010) - VAR - 58802, 758803, 758804, 758805, 758806, 758807, 758871 - AUTOGUIDANCE, STEERING VALVE

Запчасти Case IH OPTUM 300 CVT (41.432.010) - VAR - 58802, 758803, 758804, 758805, 758806, 758807, 758871 - AUTOGUIDANCE, STEERING VALVE (41) - STEERING

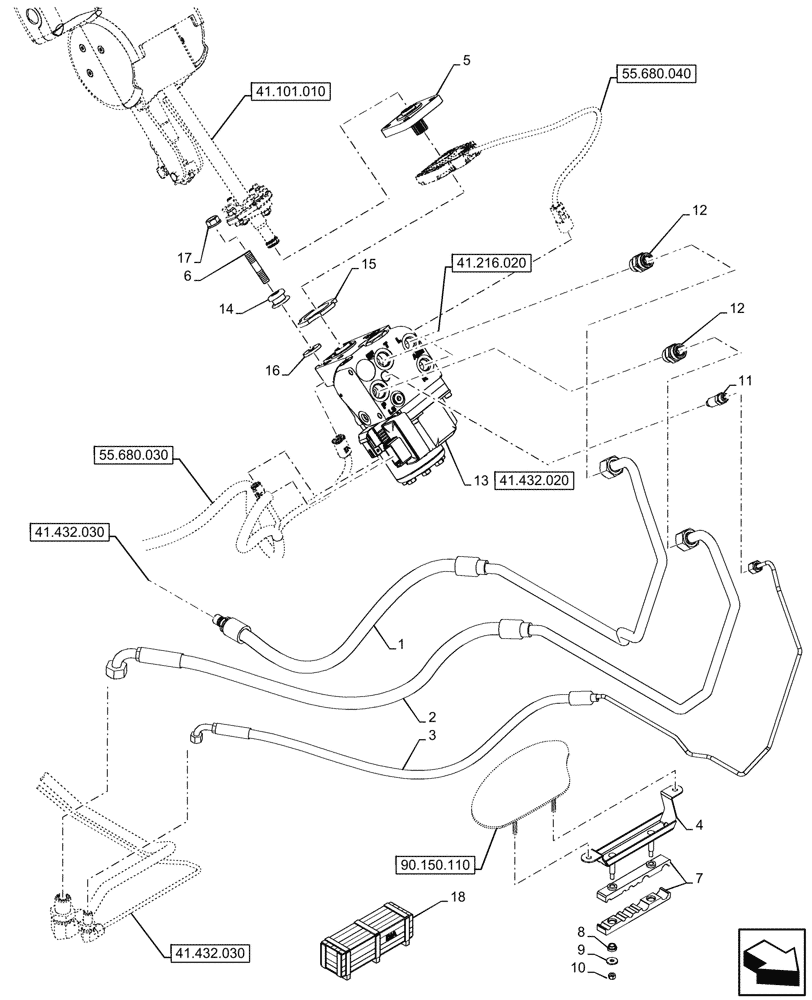

Схема запчастей Case IH OPTUM 300 CVT - (41.432.010) - VAR - 58802, 758803, 758804, 758805, 758806, 758807, 758871 - AUTOGUIDANCE, STEERING VALVE (41) - STEERING
41.432.030
10
8
17
7
12
3
12
5
11
1
13
6
16
15
9
14
4
2
18
41.432.020
41.216.020
55.680.040
55.680.030
90.150.110
41.101.010
41.432.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47906902

TUBE

Return from Autoguidance

1шт.

2

47906904

TUBE

Supply to Autoguidance

1шт.

3

47906906

TUBE

LS Autoguidance

1шт.

4

47906885

BRACKET

1шт.

5

47740277

ADAPTER

1шт.

6

47917630

STUD,M10 x 1.5 x 91mm L, Cl 8.8

4шт.

7

47730518

BRACKET

2шт.

8

47749019

BUSHING,7.5mm ID x 11mm OD x 8mm L

8шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

10

87030561

NUT,M6 x 1, Cl 8

2шт.

11

84593994

HYD CONNECTOR,M12 x 1.5 ORB, 9/16" - 18 ORFS

1шт.

12

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

2шт.

13

47721165

STEERING VALVE

ASSY

1шт.

14

82009429

ISOLATOR

4шт.

15

81873344

RUBBER INSULATOR

1шт.

16

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

4шт.

17

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

18

710070434

DIA KIT, TRACTOR

Autoguidance Ready, Incl 1 - 16

1шт.

Valid for T7.290, T7.315 Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
