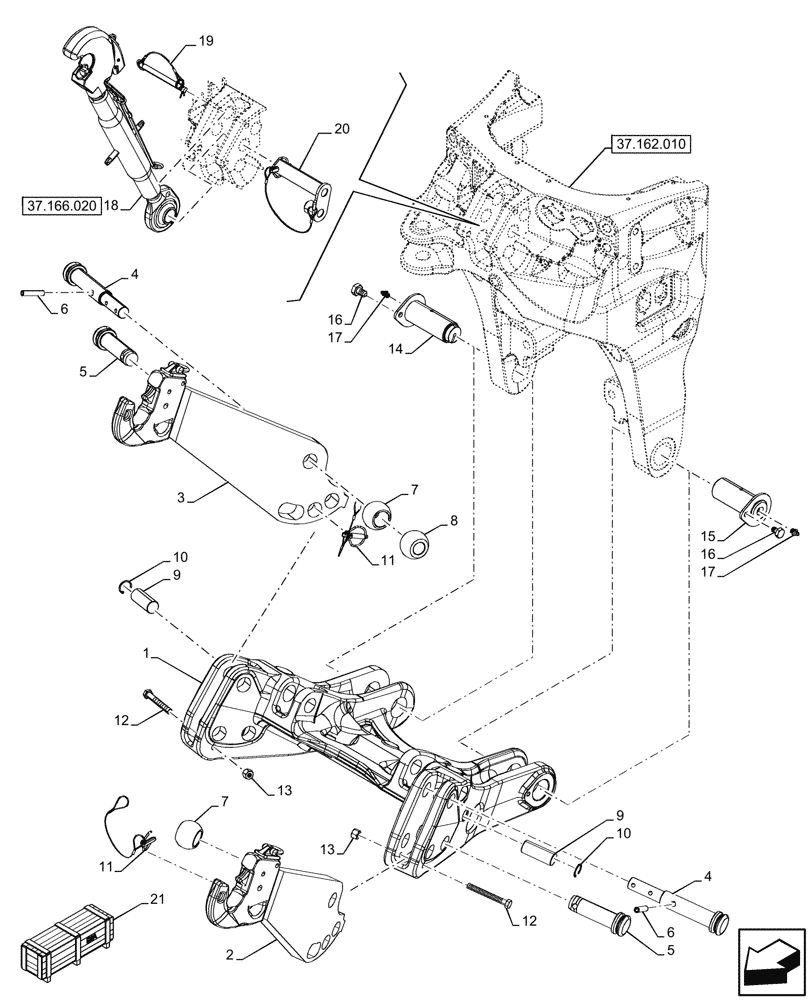

Запчасти Case IH OPTUM 300 CVT (37.166.010) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47557010

LOWER LINK

1шт.

2

47555522

LOWER LINK

Link, LH

1шт.

3

47555523

LOWER LINK

Link, RH

1шт.

4

47636186

PIN,50mm OD x 242.5mm L

2шт.

5

84372473

PIN,35mm OD x 140mm L

2шт.

6

278910

LOCK PIN,12mm OD x 55mm L, Slotted

2шт.

7

44017710

BUSHING,37mm ID x 64mm OD x 44.7mm L

2шт.

8

5116059

BUSHING,25.4mm ID x 60mm OD x 51mm L

1шт.

9

47627745

PIN,30mm OD x 76mm L

2шт.

10

301644

CIRCLIP,M30, Int

2шт.

11

47660587

LOCK PIN

2шт.

12

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

13

412126

NUT,M12 x 1.75

2шт.

14

47626558

PIN,133mm L

1шт.

15

47626568

PIN,120mm L

1шт.

16

10979221

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8

2шт.

17

87588865

FITTING,M6 x 1 x 12mm L

2шт.

18

47662287

UPPER LINK

ASSY

1шт.

19

47457844

LOCK PIN,12mm OD x 135mm L

1шт.

20

47885076

PIN

1шт.

21

718062034

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

21

731033014

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
