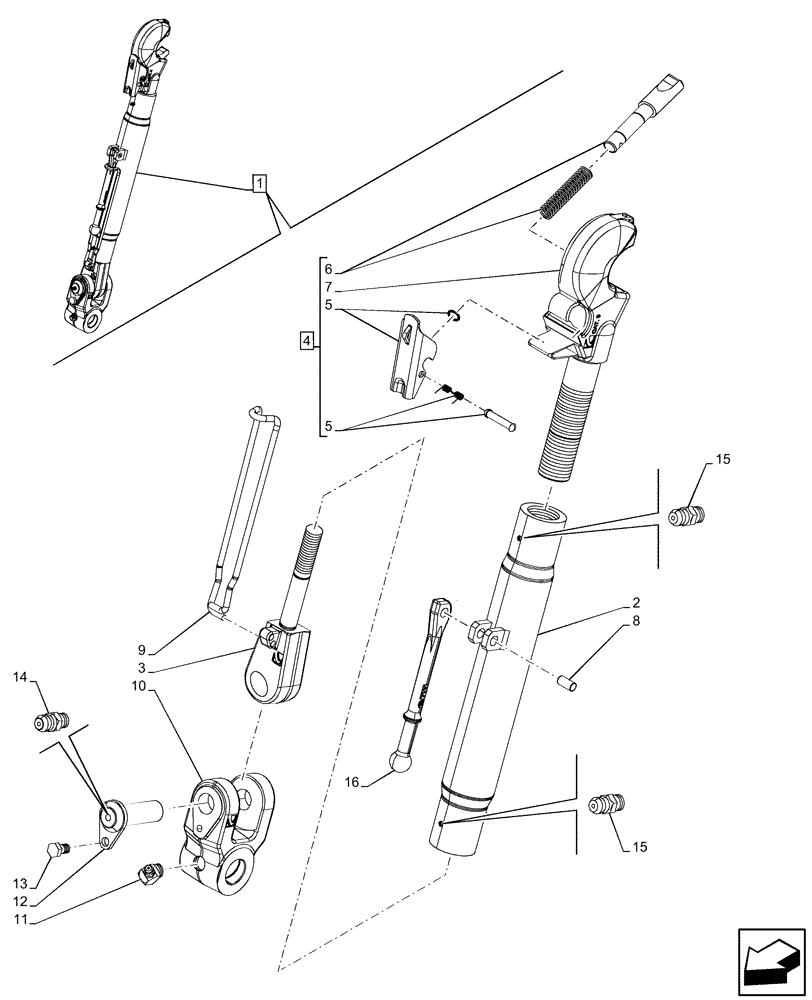

Запчасти Case IH OPTUM 300 CVT (37.120.150) - VAR - 758760 - REAR, 3 POINT HITCH, CAT 3, UPPER LINK, W/ QUICK ATTACH HOOK LINK ENDS, COMPONENTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47527573

UPPER LINK

ASSY, Incl 2 - 16

1шт.

2

47629171

TURNBUCKLE

1шт.

3

47629072

TIE-ROD

1шт.

4

47629175

HOOK

ASSY, Incl 5 - 7

1шт.

5

47637516

REPAIR KIT

1шт.

6

47637515

REPAIR KIT

1шт.

7

NSS

NOT SOLD SEPARAT

Hook, Incl in 4

1шт.

8

14174371

LOCK PIN,M12 x 30, Slotted

1шт.

9

47629073

SPRING

1шт.

10

47629076

YOKE

1шт.

11

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

12

47629080

PIN

1шт.

13

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

14

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

15

87588865

FITTING,M6 x 1 x 12mm L

2шт.

16

5172394

LEVER

1шт.
