Запчасти Case IH OPTUM 300 CVT (35.300.010) - VAR - 391138, 758022, 758870, 759053 - OIL FILTER, PRIORITY VALVE (35) - HYDRAULIC SYSTEMS

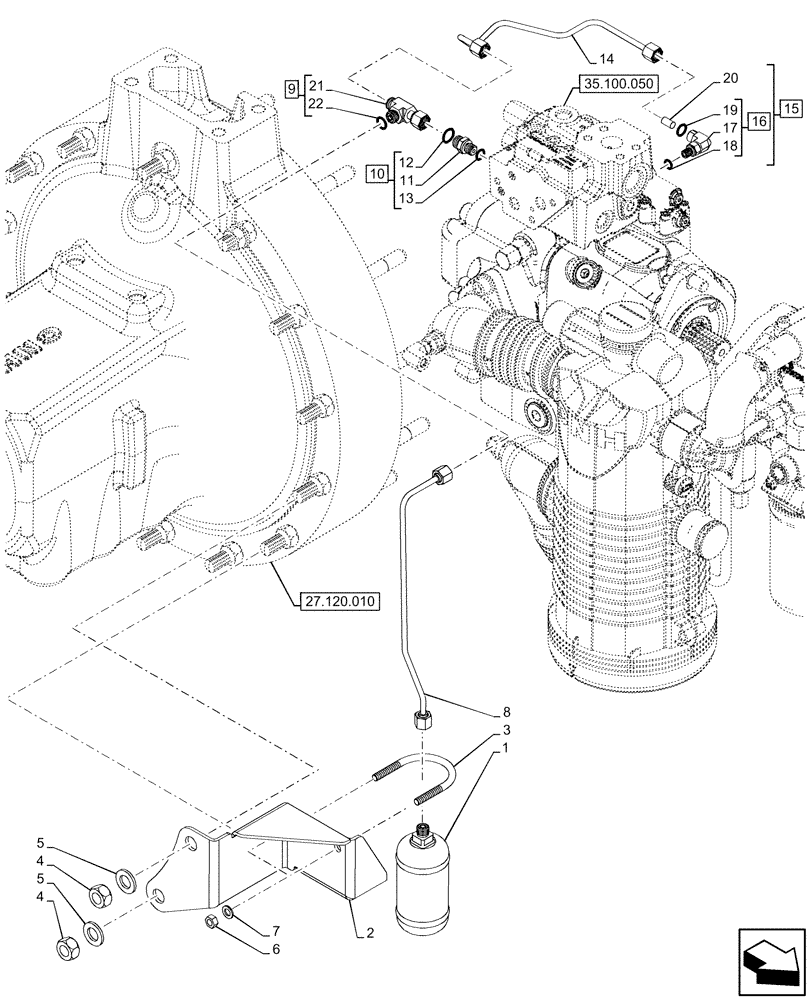

Схема запчастей Case IH OPTUM 300 CVT - (35.300.010) - VAR - 391138, 758022, 758870, 759053 - OIL FILTER, PRIORITY VALVE (35) - HYDRAULIC SYSTEMS
27.120.010
5
19
7
5
11
13
4
6
17
12
1
10
20
2
14
4
3
22
21
9
8
18
15
16
35.100.050

Артикул

Название

Примечание

Количество

1

84408141

HYDRAULIC OIL FILTER,60mm OD x 142.5mm L, 9/16-18

1шт.

2

47854788

BRACKET

1шт.

3

84152220

U-BOLT,M8 x 2, ZND

1шт.

4

12164124

NUT,M16 x 1.5, Cl 8

2шт.

5

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

6

9706690

NUT,M8 x 1.25, Cl 8

2шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

47854789

PIPE

to Resounding Filter

1шт.

9

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

ASSY, Incl 21, 22

1шт.

10

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

12

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

13

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

14

47854791

PIPE

LS Pump

1шт.

15

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

ASSY, Incl 16 - 20

1шт.

16

47126658

90 ELBOW,9/16"-18 ORFS x 7/16"-20

ASSY, Incl 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 16

1шт.

18

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

19

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

20

47126655

FILTER STRAINER

1шт.

21

NSS

NOT SOLD SEPARAT

Tee, Incl in 9

1шт.

22

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Выбрано товаров: 22
