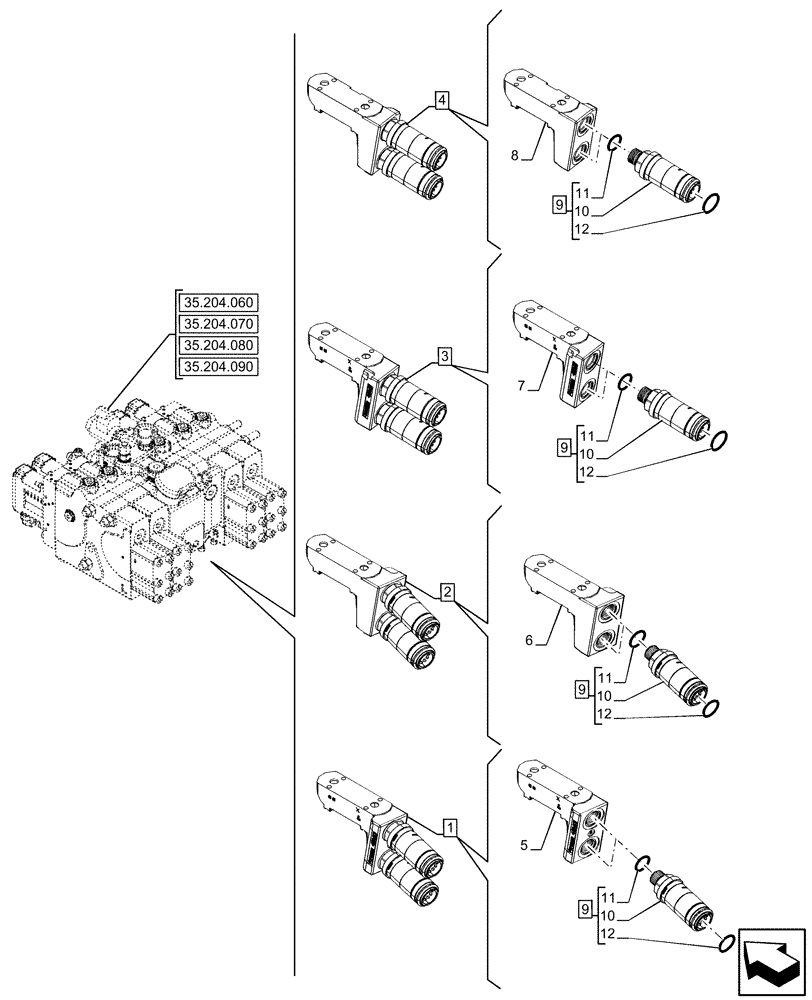

Запчасти Case IH OPTUM 300 CVT (35.204.160) - VAR - 758060, 758061 - REMOTE CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87596458

HYDRAULIC MANIFOLD

ASSY, Quick Coupler, Group 5, Incl 5, 9 (Qty 1)

1шт.

2

87381983

HYDRAULIC MANIFOLD

ASSY, Quick Coupler, Group 3, Incl 6, 9 (Qty 1)

1шт.

3

87381982

HYDRAULIC MANIFOLD

ASSY, Quick Coupler, Group 2, Incl 7, 9 (Qty 1)

1шт.

4

87381981

HYDRAULIC MANIFOLD

ASSY, Quick Coupler, Group 1, Incl 8, 9 (Qty 1)

1шт.

5

87599844

MANIFOLD VALVE

1шт.

6

NSS

NOT SOLD SEPARAT

Manifold, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Manifold, Incl in 3

1шт.

8

NSS

NOT SOLD SEPARAT

Manifold, Incl in 4

1шт.

9

47370116

COUPLING

ASSY, Incl 10 - 12

4шт.

10

NSS

NOT SOLD SEPARAT

Body, Incl in 9

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

12

87382012

SEAL KIT

1шт.
