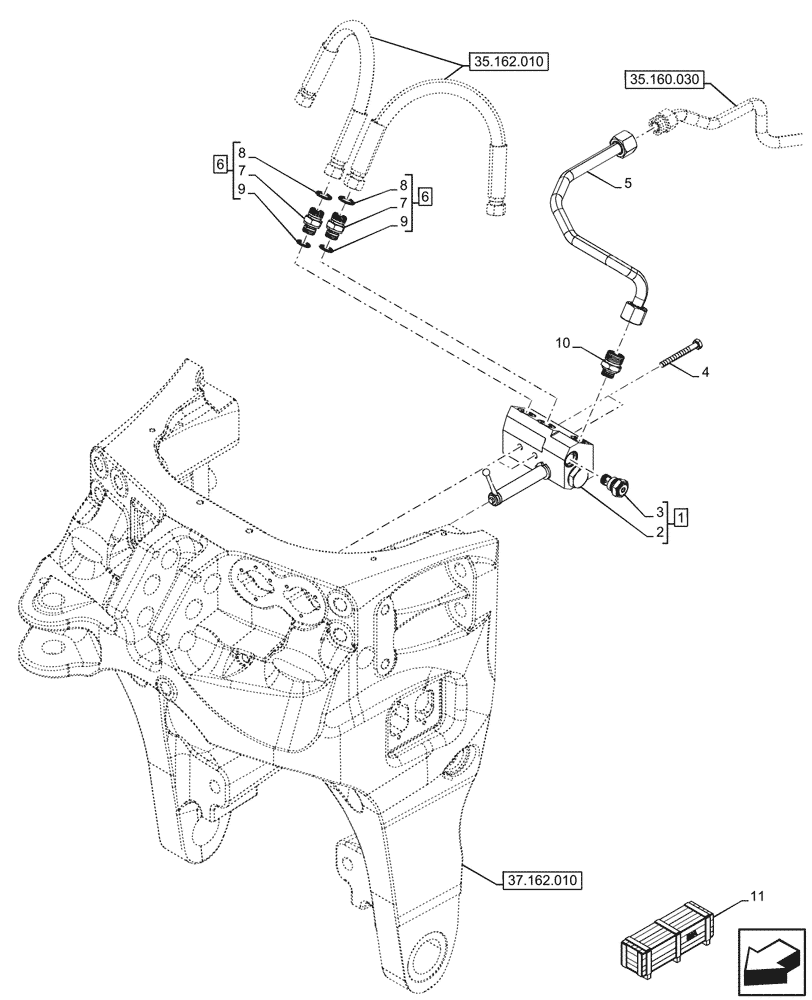

Запчасти Case IH OPTUM 300 CVT (35.160.010) - VAR - 758768, 758769, 758770, 758771, 758772, 758773, 759086, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, VALVE (35) - HYDRAULIC SYSTEMS

1

47604740

HYDRAULIC VALVE

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

87356945

CHECK VALVE

1шт.

4

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

5

47807111

PIPE

Lower FHPL Feed

1шт.

6

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

ASSY, Incl 7 (Qty 1), 8 (Qty 1), 9 (Qty 1)

2шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

2шт.

8

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

10

47394237

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

1шт.

11

718062034

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

731033014

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
